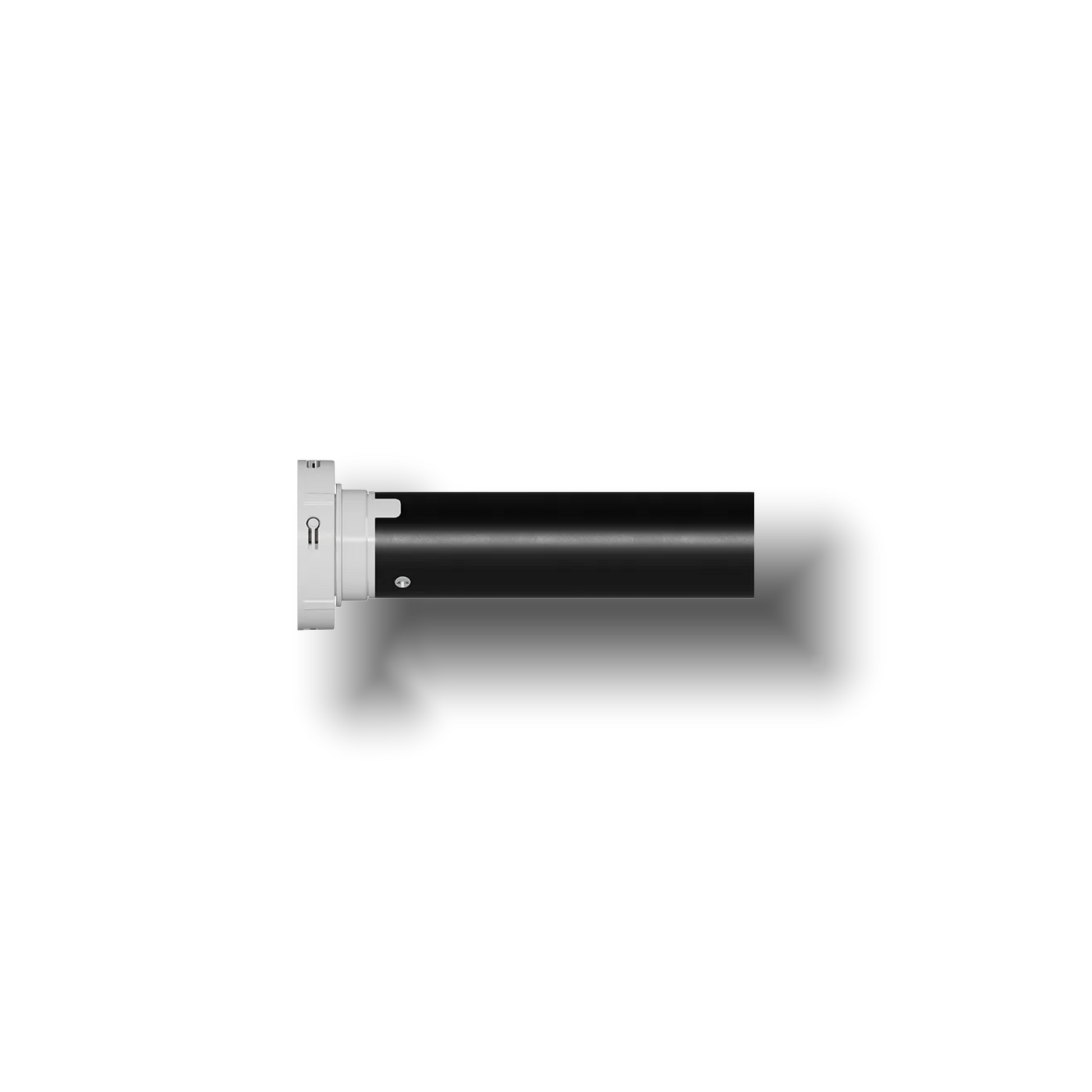

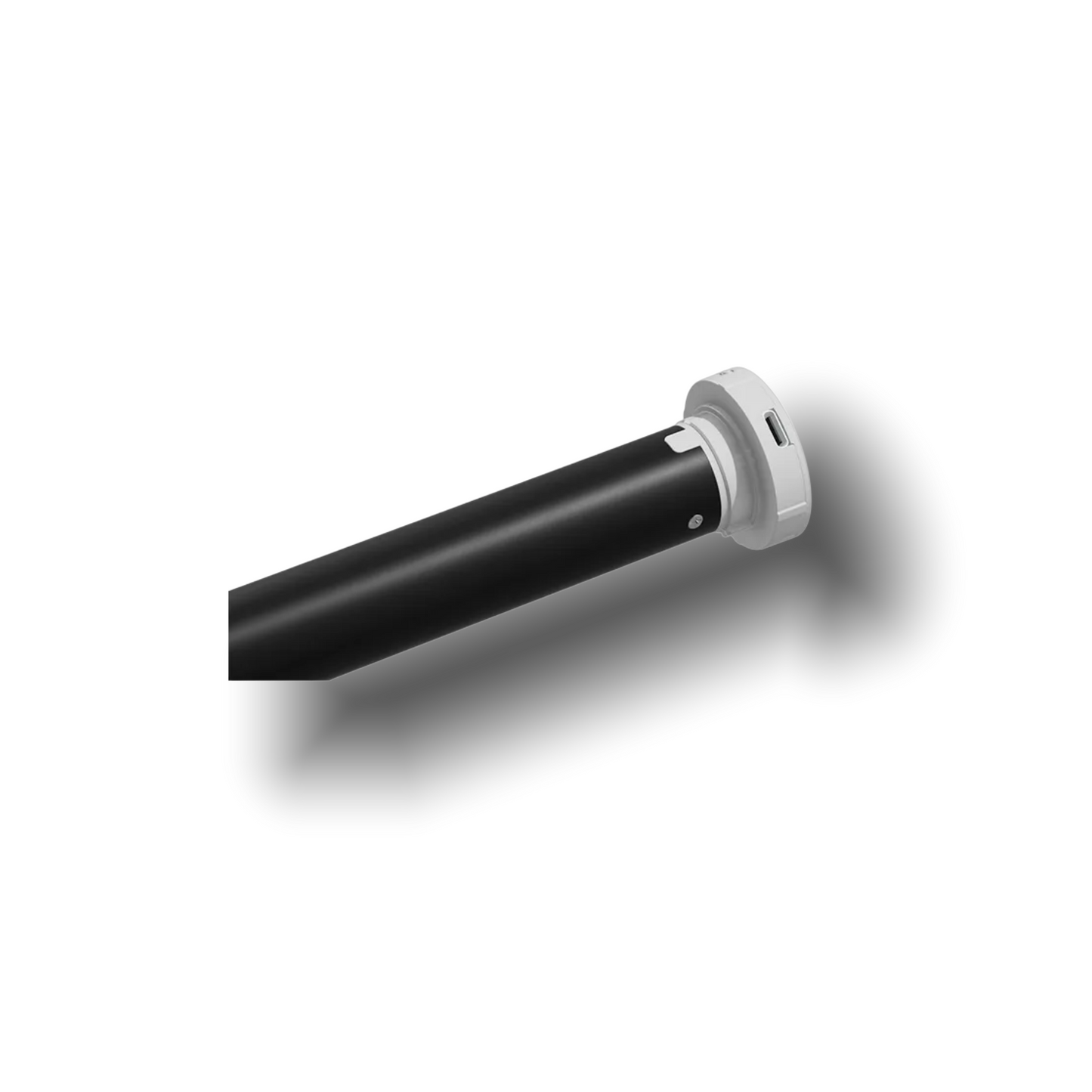

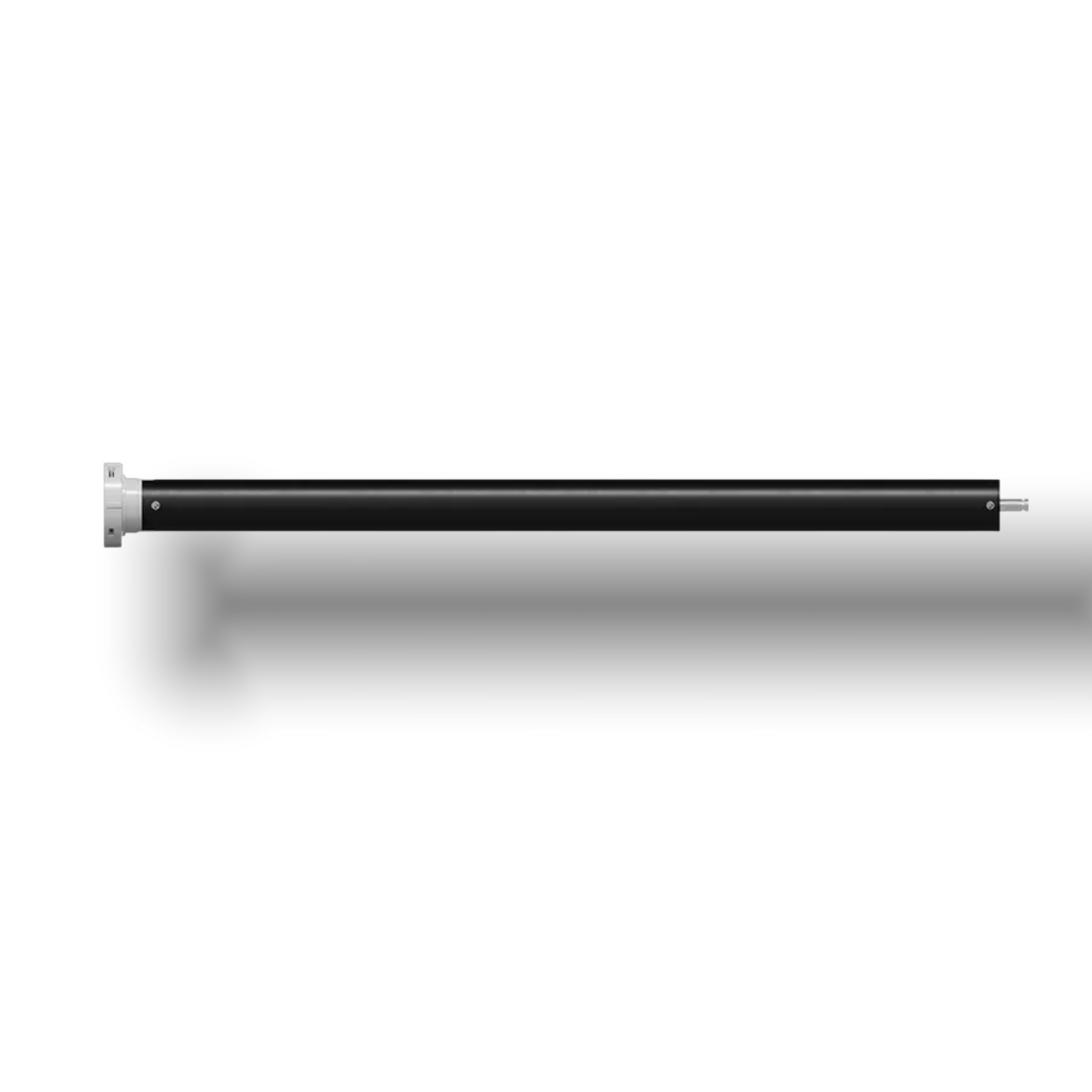

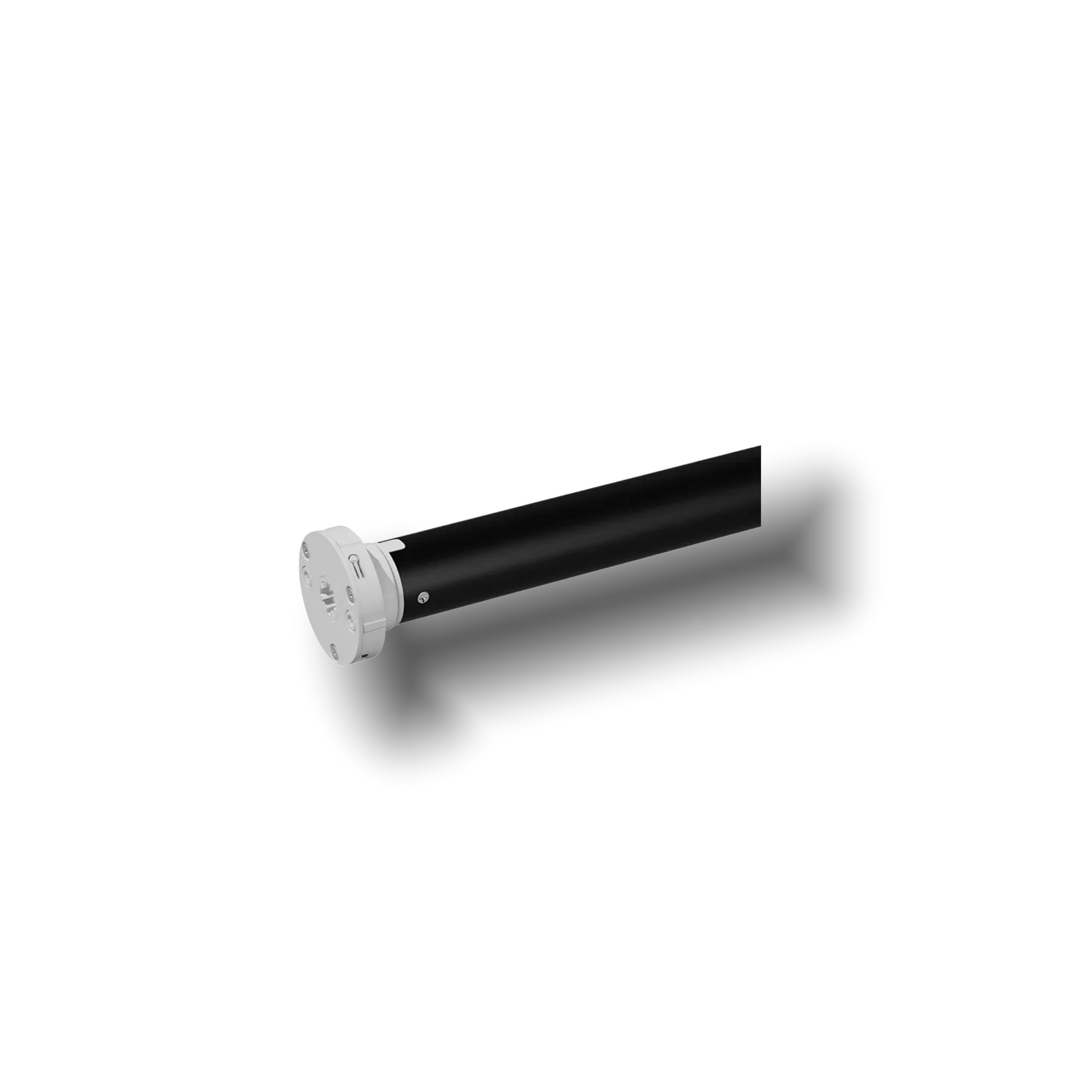

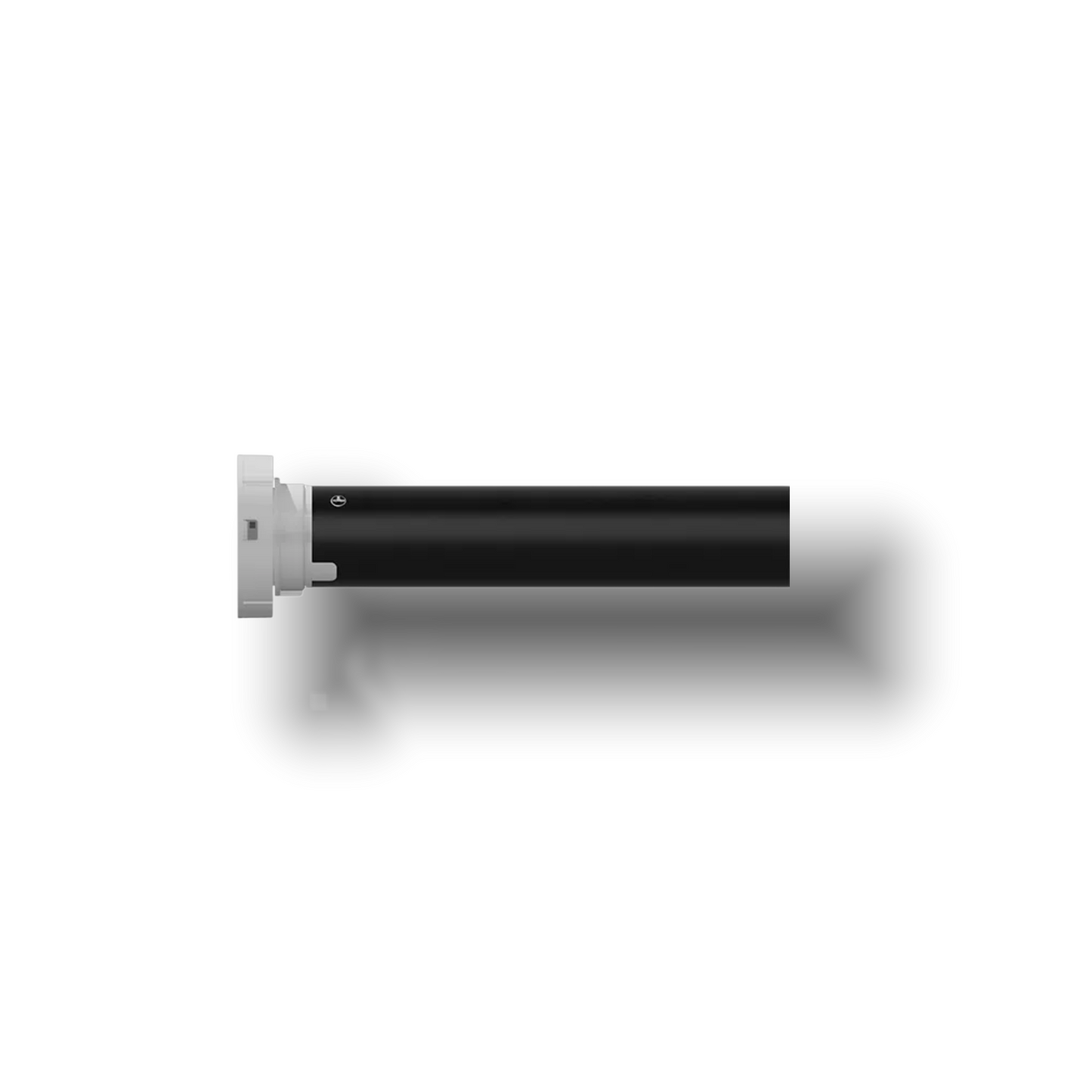

Tubular Motor

Tubular Motor

Protocol
  • Smart Control with Multiple Options: This Tuya Zigbee IoT device offers users various control modes, including app, voice, RF, percentage, timer, and manual control, ensuring seamless and convenient operation.
  • Wide Compatibility: The product is designed for general windows with a length of less than 2.5 meters and 38mm tube roller blinds, making it suitable for various window types, including French windows.
  • Energy Efficiency: With a rated voltage of 100V~240V and no battery requirement, this smart roller blind motor reduces energy consumption and provides reliable operation.
  • Durable Construction: The device features a sturdy aluminum alloy material with a rotor diameter of 25mm and a rated torque of 2 Nm, ensuring long-lasting and stable performance.
  • Multi-Functional: The product can be used in various settings, such as offices, bedrooms, living rooms, kitchens, and more, providing users with a versatile and convenient solution for their window treatments.
View full details

Datasheet

Features

  • Wireless control: RF433, WiFi, Zigbee, Bluetooth mesh, Matter
  • Smart home control system
  • Voice control connects with Amazon Alexa, Google Home and so on
  • Support App control. percentage control, timer control
  • Power off route and position memory function
  • Reversing function for direction
  • Easy to set the top/ middle/ down position limit
  • Wide voltage power supply
  • Suitable for: Compatible with 38mm tube roller blinds.
  • Smart Blind Motor 25mm Tubular Motor Alexa with 38mm Tube Curtains Motorized Customized

Parameters

  • Receiving Frequency: 433.92MHz
  • Torque: 2N.m
  • IP Class: IP44
  • Rated RPM: 25RPM
  • Rated Power: 30W
  • Rated Current: 0.13A
  • Rated Frequency: 50/60Hz
  • Rated Voltage: 100~240V AC
  • Max load (use with 38mm tube): 10KG

Brochure
