Somke Sensor

Somke Sensor

Protocol

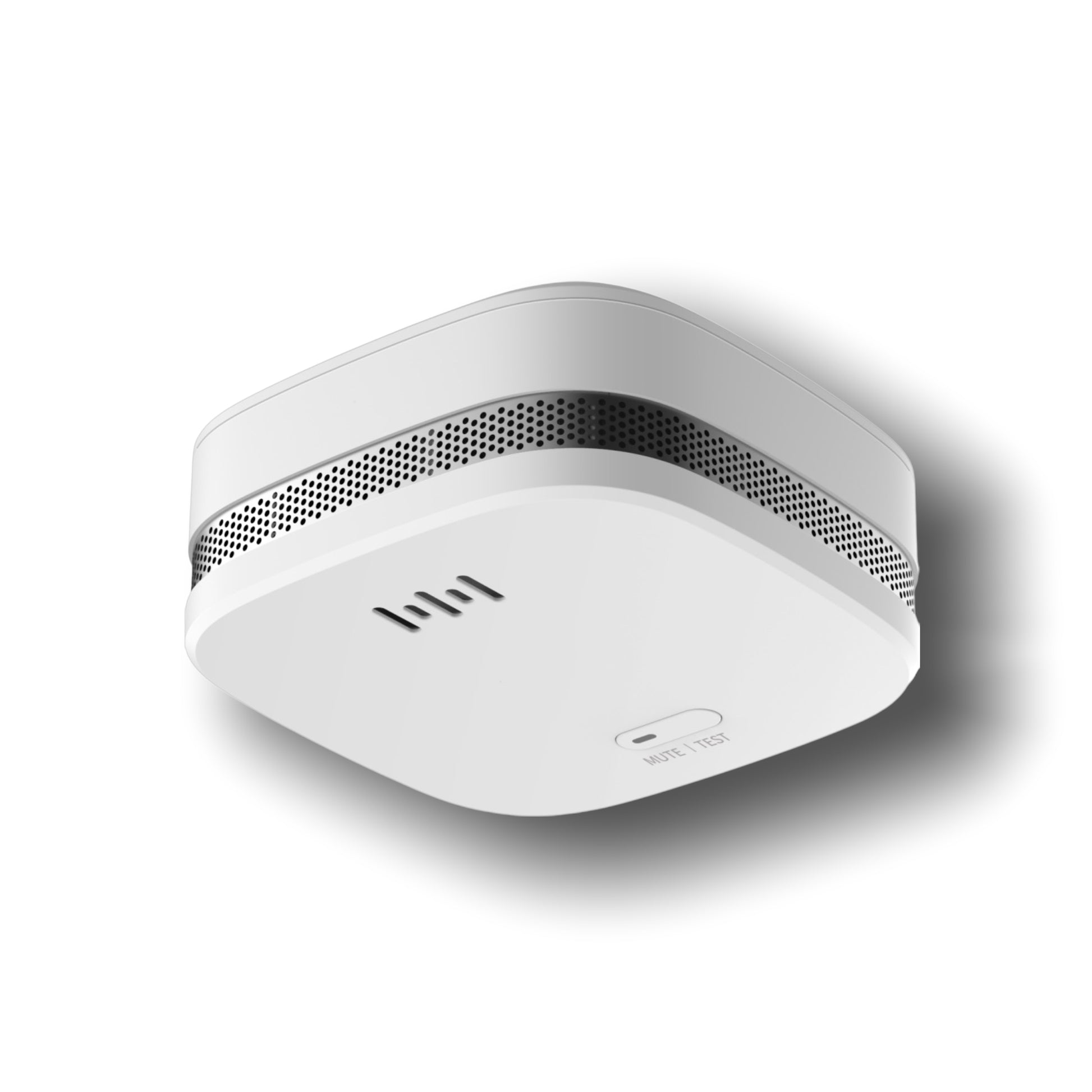

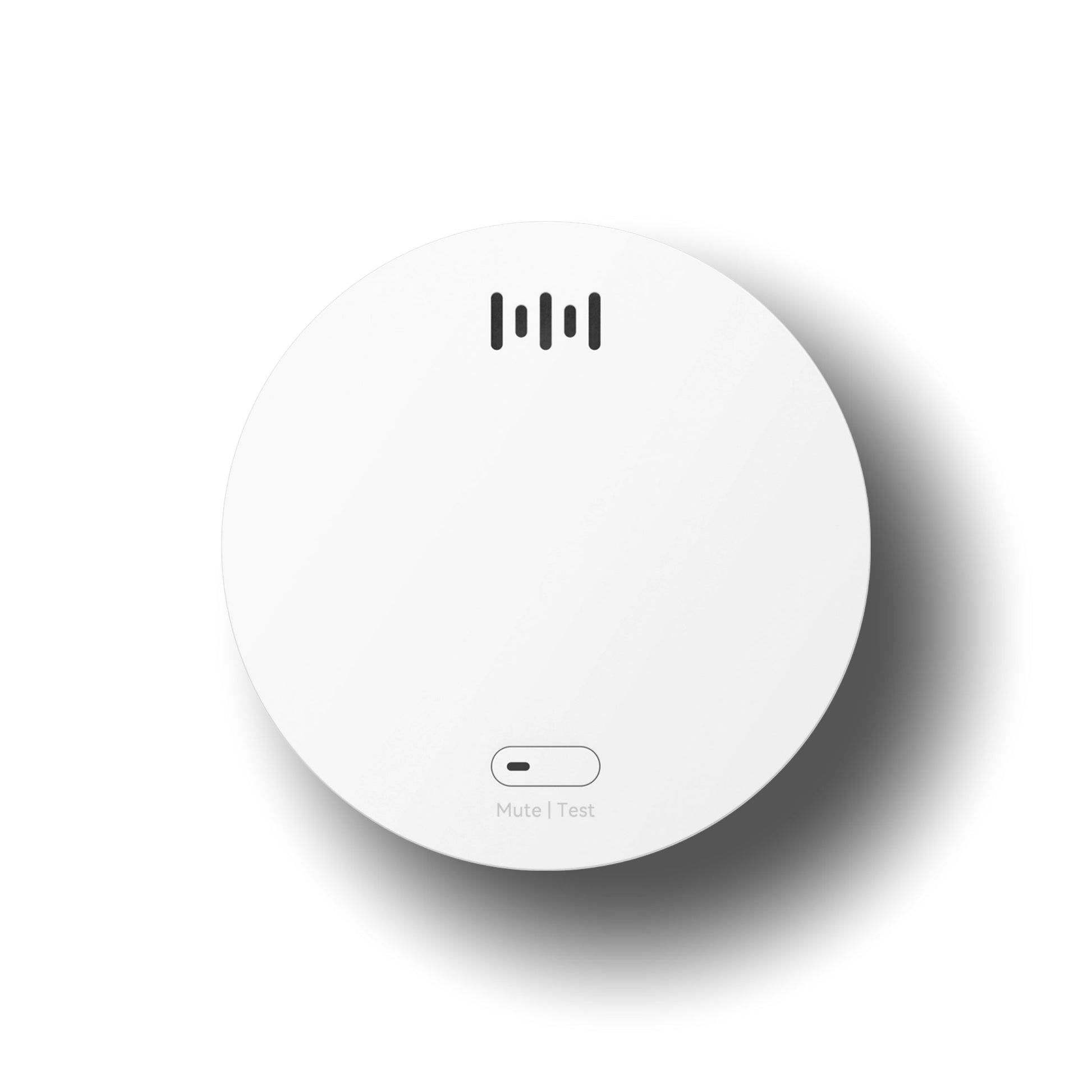

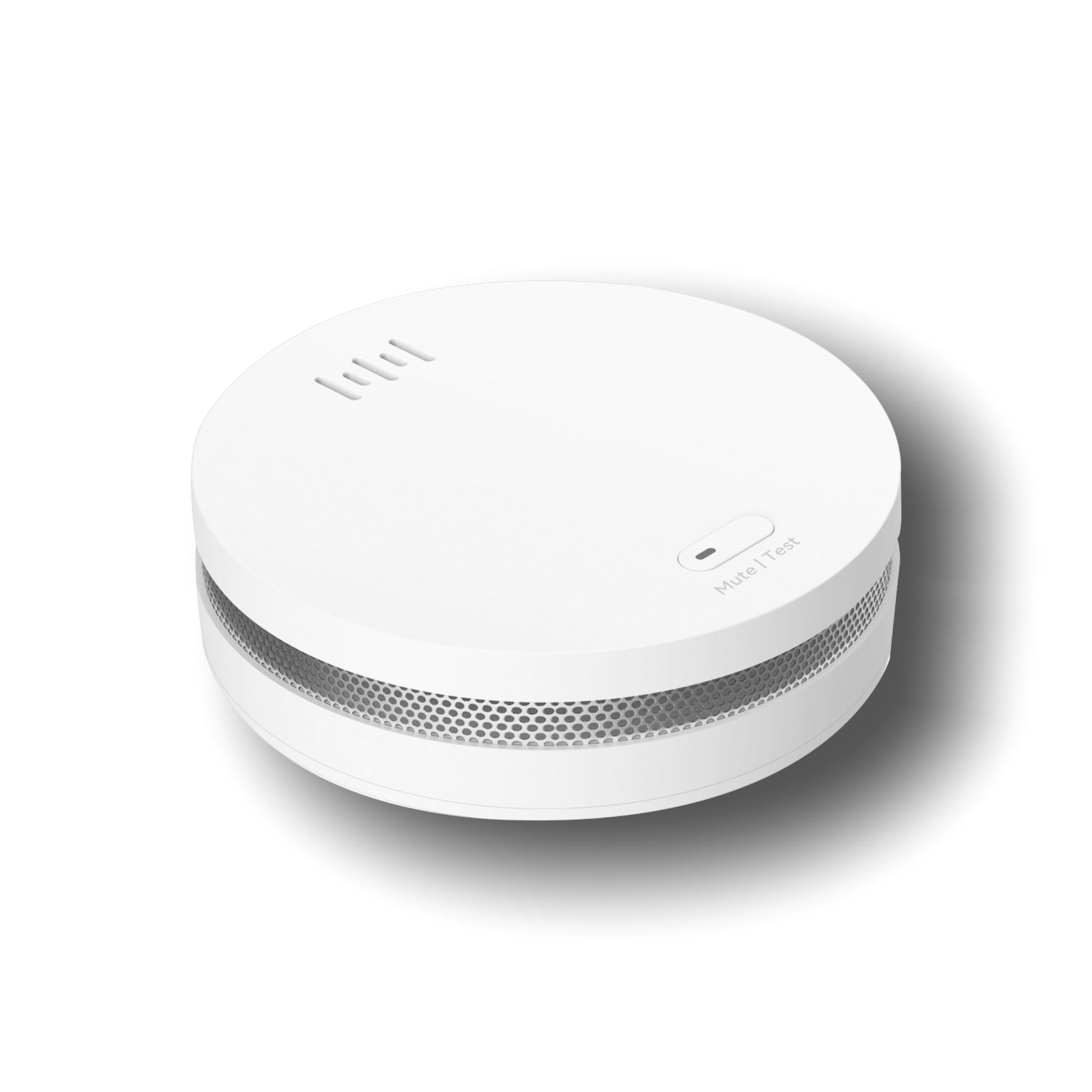

It senses smoke concentrations through a labyrinth, combines temperature changes to determine if there is a fire, and sends an alarm through indicator light and high-decibel buzzer.

  • With a new generation of high-sensitivity labyrinth to further enhance all-round sensitivity.
  • With a pyramid embossed design, 16 directions smoke indexes maintains consistency and stability
  • With anti-tamper function, it will alarm when removed.
  • With intelligent double-checking algorithm, the smoke concentration exceeds thethreshold or the temperature exceeds 65°C it will alarm,
  • With Wi-Fi communication protocol, you can directly connect to the platform without a gateway, and push warning message to the App in the mobile phone in the first time.
View full details

Datasheet

Features

  • Smart smoke alarm to prevent fire from early stage
  • New generation of high-sensitivity labyrinth
  • Intelligent double-identification algorithm
  • Anti-tamper design
  • Powered by battery
  • 85dB high resolution alarm
  • Multi-scene application

Parameters

  • Power supply: DC3V, 1 CR123A battery*1pc
  • Communication mode: WiFi/Zigbee communication, directly connected to the platform
  • Operating temperature: -10℃ ~ +55℃
  • Key: one, self-check mute key
  • Indicator light: one, red and blue, indicating the working status
  • Detection range: 50 square meters
  • Alarm sound pressure: 85db@3m
  • Support low voltage alarm;
  • Support from the wall demolition;
  • Shell material: PC+ABS
  • Standby time: 3 years(20 triggers per day)
  • Installation method: suction top installation
  • Working humidity: 5-95%rh
  • Other functions: regular self-inspection
  • Dimension: 70mm × 70mm × 29mm

Brochure

Product Manual
