Smoker Sensor

Smoker Sensor

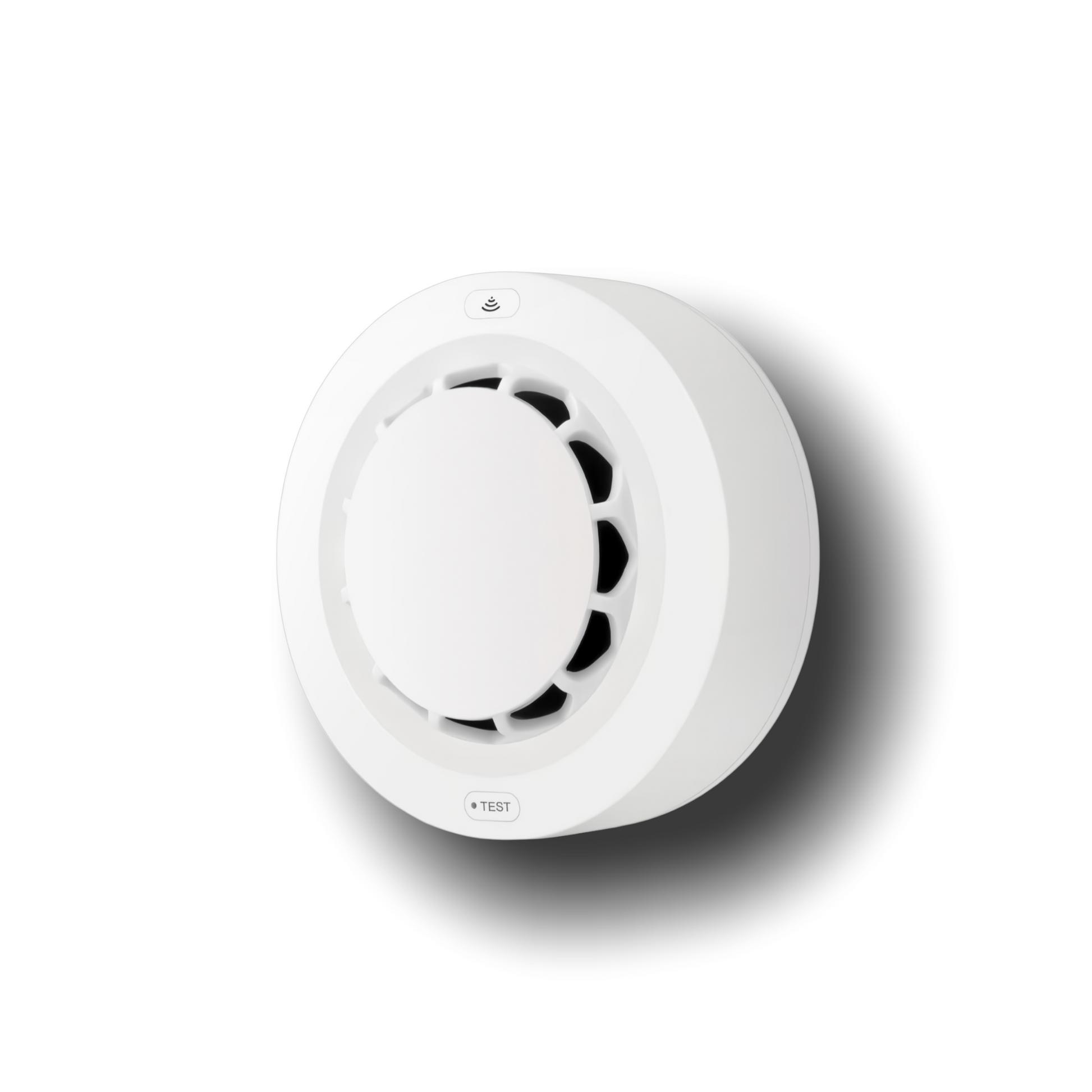

  • Ensure ultimate protection for your home and loved ones with our state-of-the-art WiFi Smoke Detector. Designed with a sleek, modern white circular housing, this device seamlessly integrates into any interior decor while providing robust fire safety capabilities.
View full details

Datasheet

Features

  • Real-Time WiFi Connectivity & Alerts:​​ Stay informed anywhere, anytime. The detector connects via WiFi (802.11b/g/n, 2.4GHz) to send instant message push notifications to your smartphone the moment smoke is detected, ensuring you can respond immediately, even when away from home.
  • High-Sensitivity Smart Photoelectric Sensor:​​ Equipped with a built-in intelligent photoelectric sensor, it accurately detects dangerous smoke levels at the earliest stages, providing timely alerts to prevent potential hazards and minimize financial losses.
  • Loud 90dB Alarm Sound:​​ Features a powerful 90dB(A) alarm sound (at 1 meter) that effectively alerts occupants within a wide area, ensuring prompt evacuation and quick response to emergencies.
  • Adjustable Sensitivity & Silence Function:​​ Customize the detector's sensitivity levels (High/Medium/Low) to suit different environments. The convenient silence function allows you to temporarily mute false alarms with ease.
  • Multi-Scenario Application:​​ Ideal for various settings, including the living room, open kitchen, bedroom, restaurant, hospital, and shopping malls. With an effective detection coverage of up to 20 square meters, it offers comprehensive safety wherever installed.
  • Low Power Consumption & Long Battery Life:​​ Powered by two AAA 1.5V batteries, it boasts an ultra-low static current (≤10uA) and a battery life of 6-8 months. The low battery reminder and low power undervoltage protection (≤2.4V) ensure reliable operation.
  • Easy Ceiling Installation & Compact Design:​​ With a compact size of 90 * 40mm, it is designed for discreet ceiling mounting. Operating reliably in environments from -10℃ to 50℃ and up to 95% humidity, it is built for durability and performance.

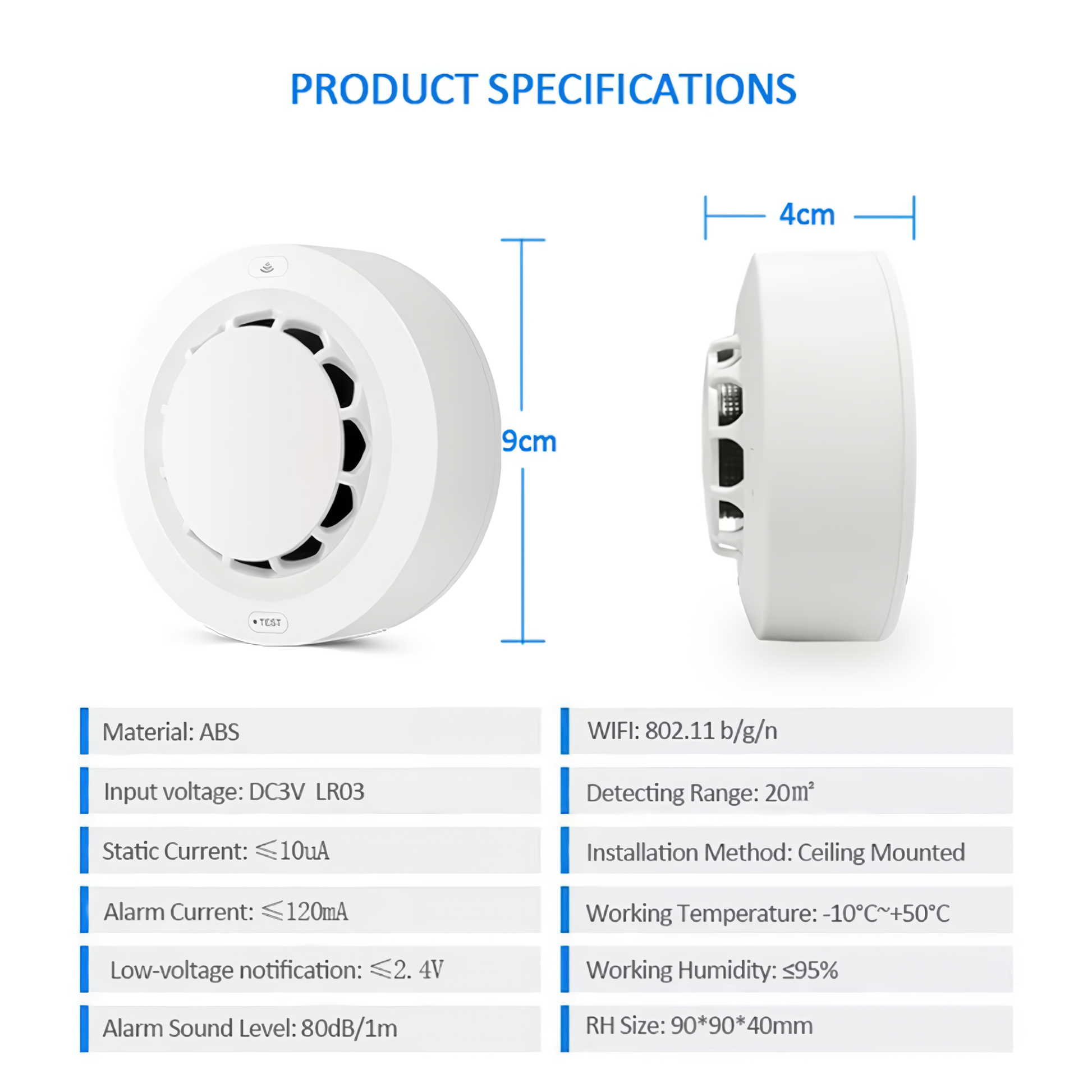

Parameters

  • Built-In Battery: AAA1.5V*2
  • Quiescent Current: ≤10uA
  • Alarm Current: ≤120mA
  • Low-Battery Remind Function
  • Low Power Undervoltage: ≤2.4V
  • WiFi: 802.11b/g/n, 2.4GHz
  • Working Temperature: -10℃~50℃
  • Working Humidity: ≤95%
  • Alarm Sound Level: 90dB/1m
  • Detecting Range: 20㎡
  • Installation Method: Ceiling Mounted
  • Battery Life: 6-8 Months
  • RH Size: 90*90*40mm
