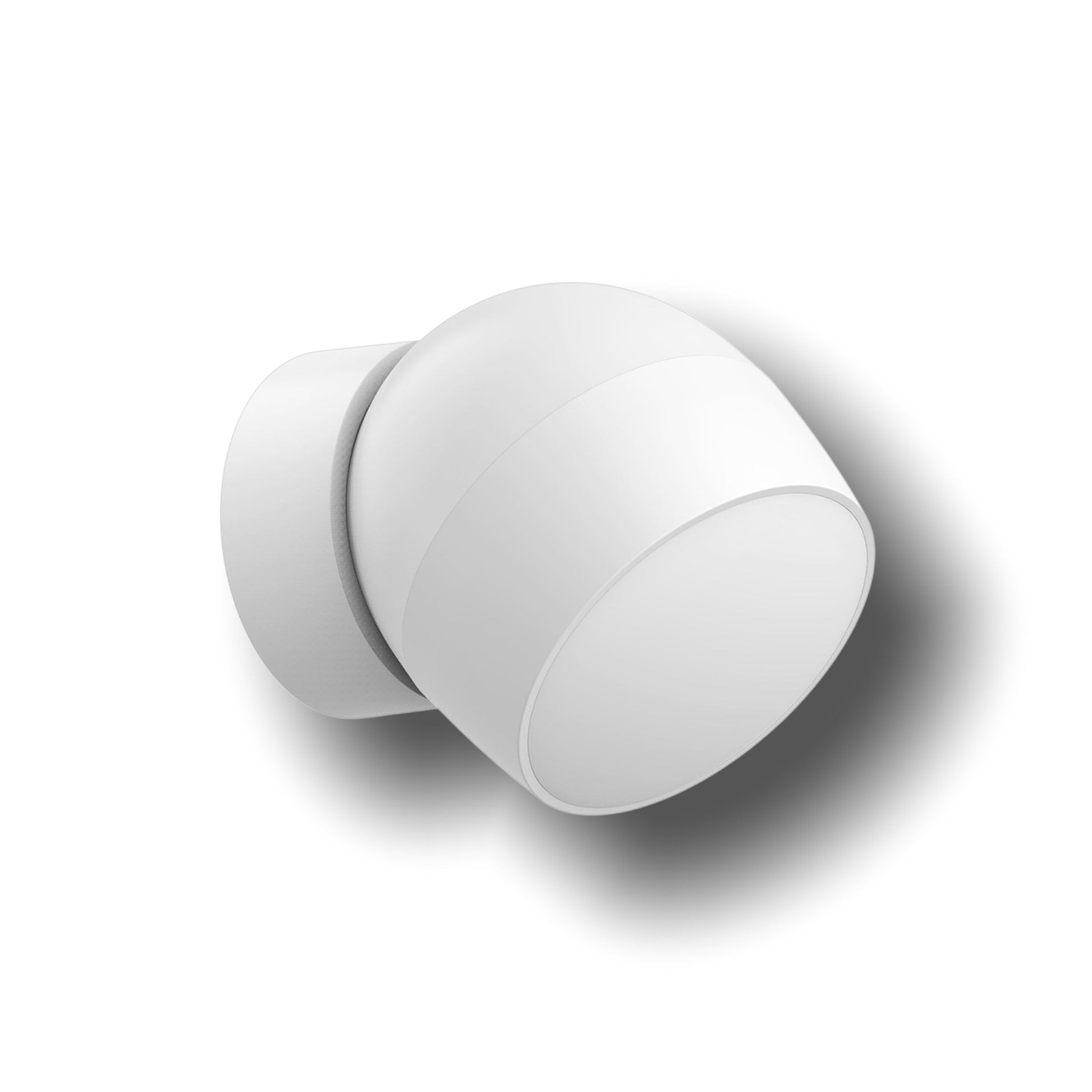

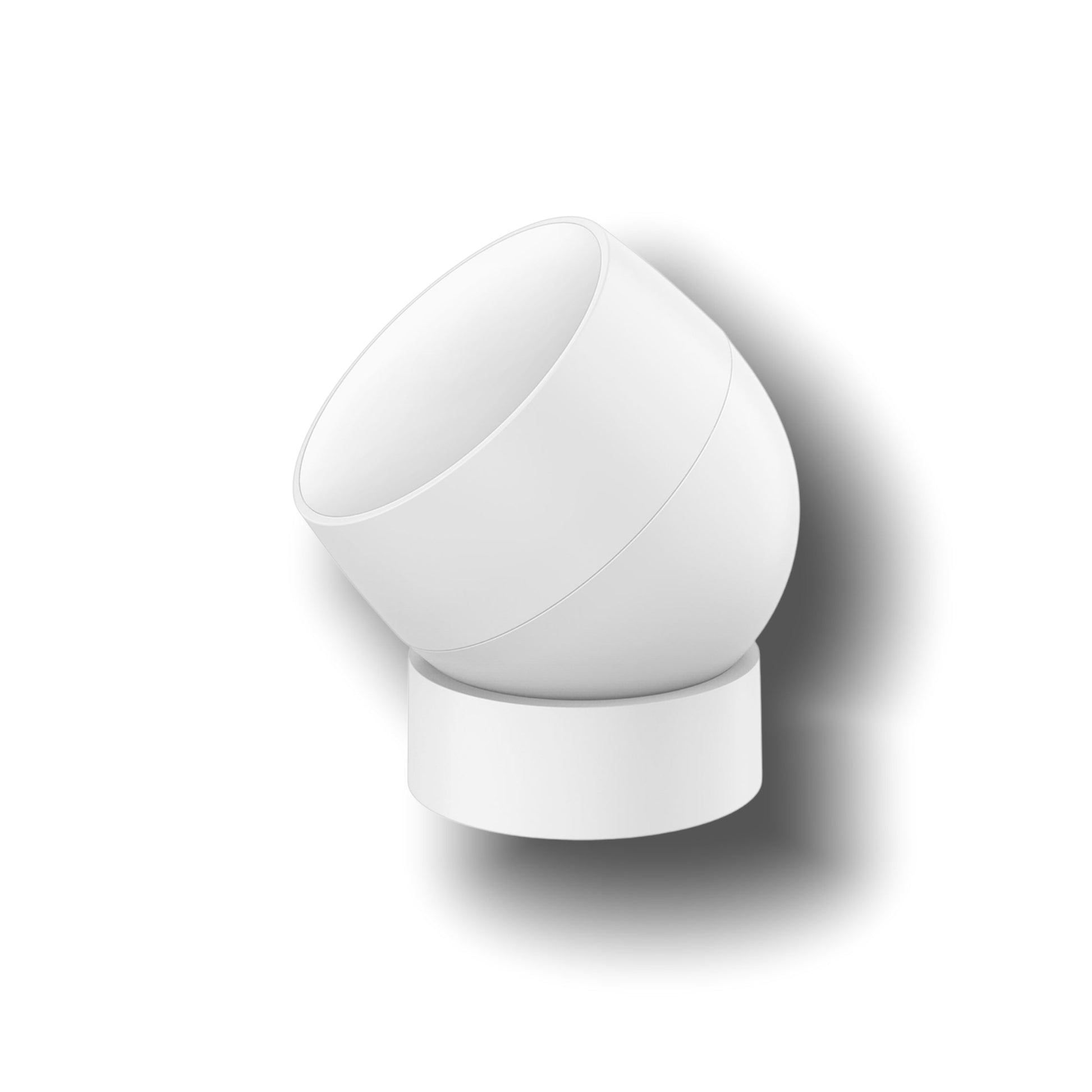

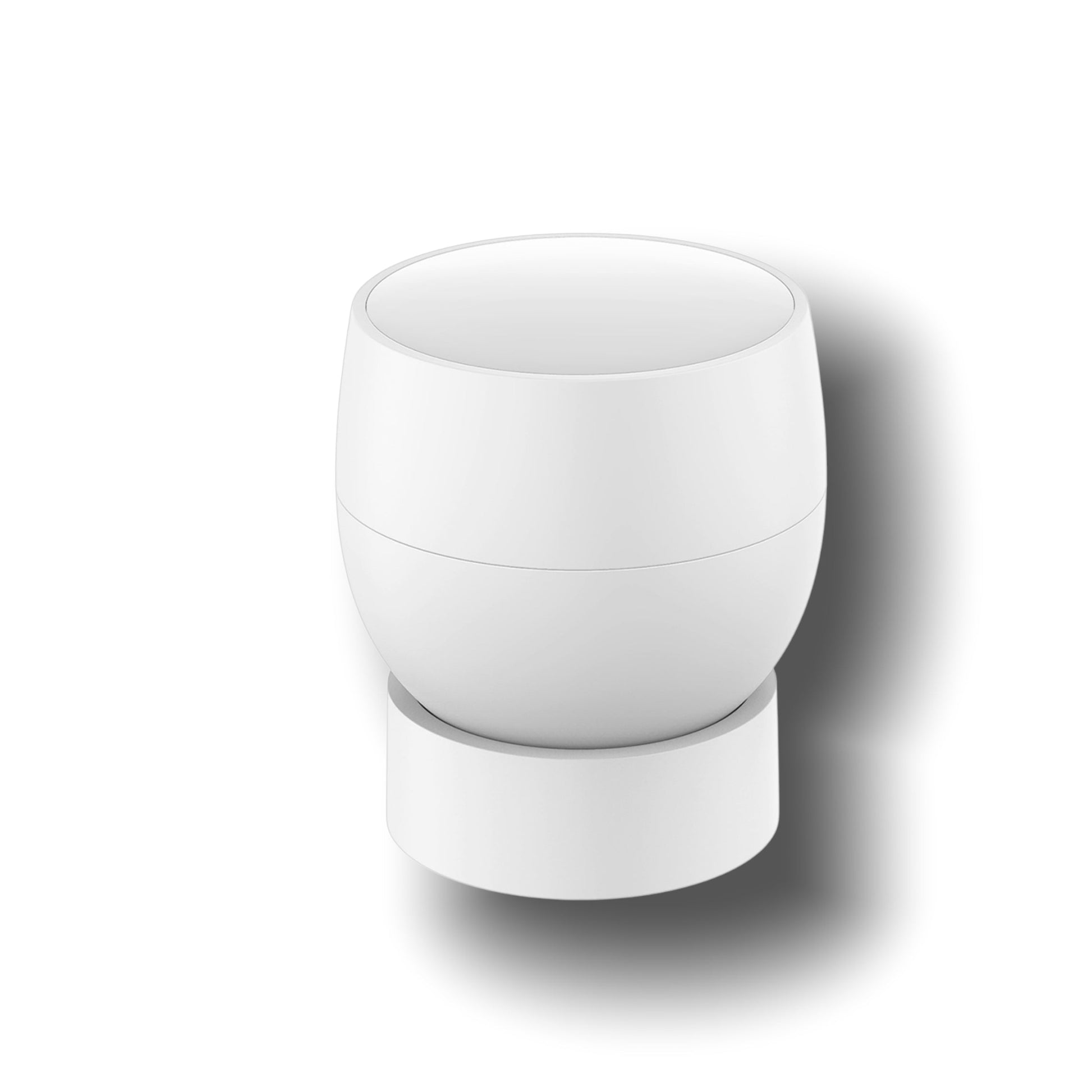

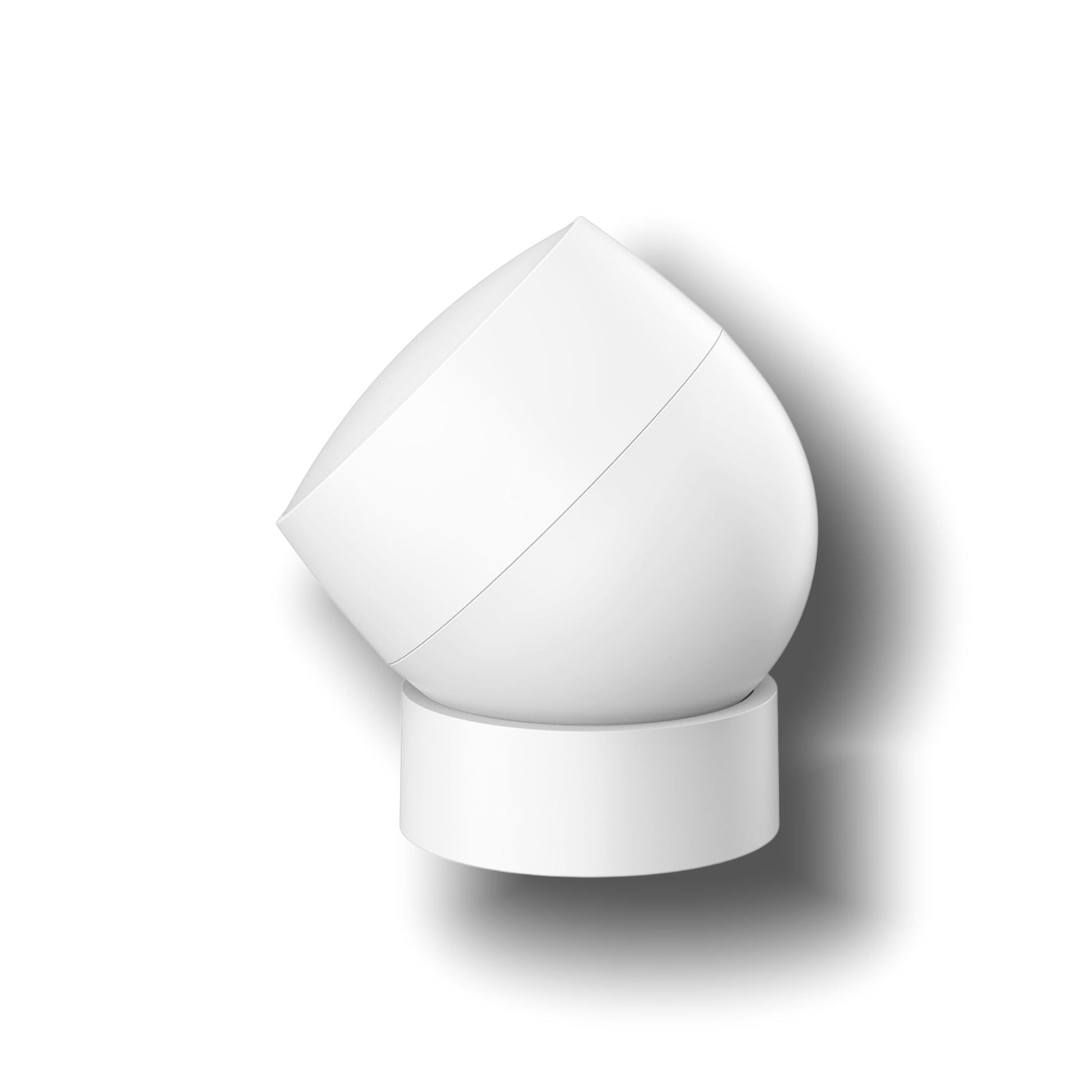

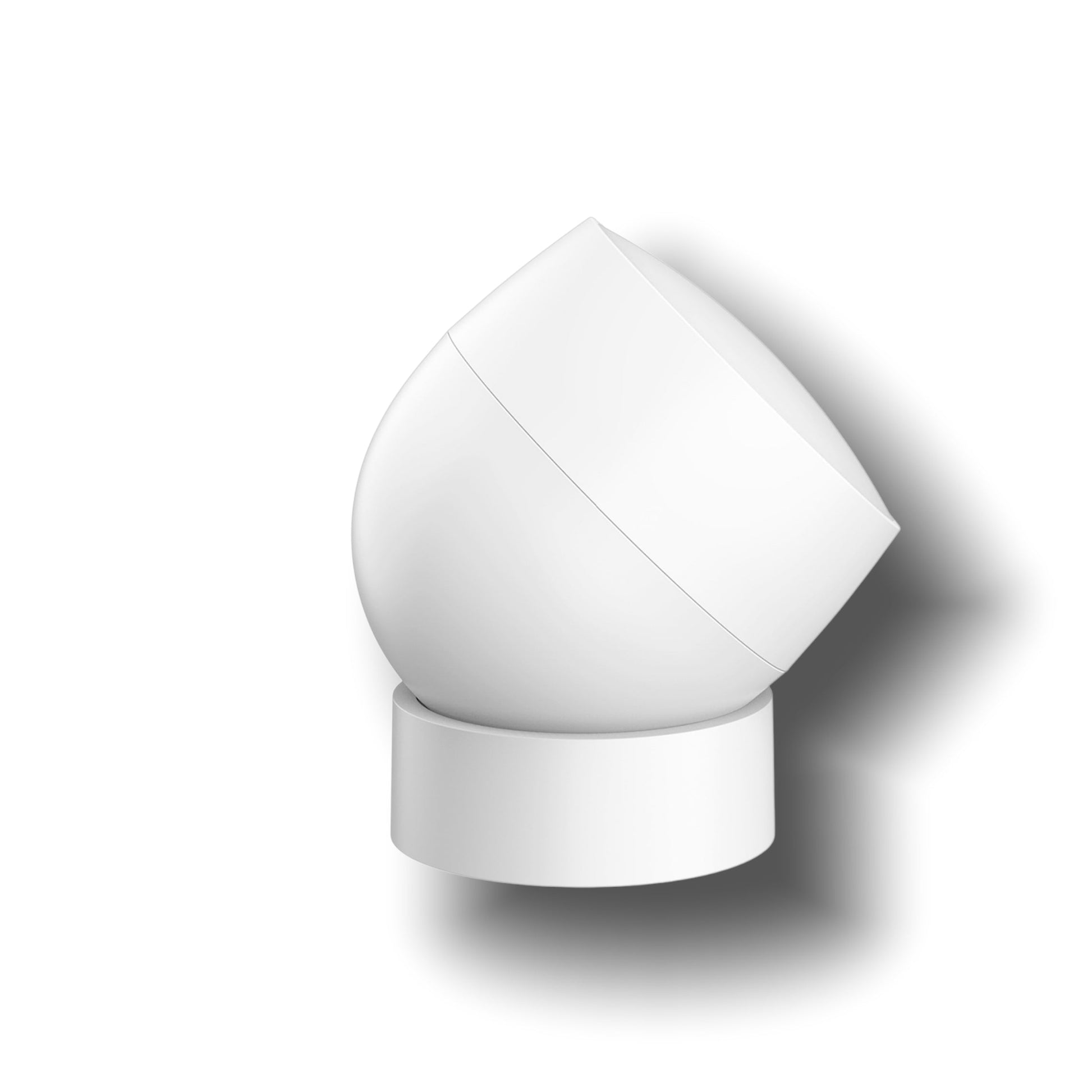

PIR Motion Sensor

It detects people's movement by pyroelectric sensors and a new generation Fresnel lens to sense infrared light emitted by people.

With third generation Fresnel lens, the zone density has increased by 3.4 times;
With the imported quaternary pyroelectric sensor and intelligent temperature compensation algorithm;
Magnetic suction base design, 1 second installation, detection direction can be adjusted freely;
With ultra-low power consumption, it works with the gateway and supports linkage control and remote reminder.

Datasheet

Power Supply: DC3V, 1×CR2450 battery
Operating Temperature: -10℃ to 55℃
Operating Humidity: ≤95% RH
Communication: Zigbee 3.0 protocol, via gateway networking, 150m transmission distance (open area)
Installation: 3M adhesive tape for wall mounting
Housing Material: PC+ABS
Dimensions: Φ40 mm × 48 mm
Low Voltage Alert: Supported
Standby Time: 1 year (30 triggers daily)
Detection Range: 7 meters
Detection Angle: 70°
Temperature Compensation: Supported
Button: 1 (for network pairing and test mode entry)
Test Mode: Supported; automatically activates upon power-up, switches to normal mode after 5 minutes of no motion detection
