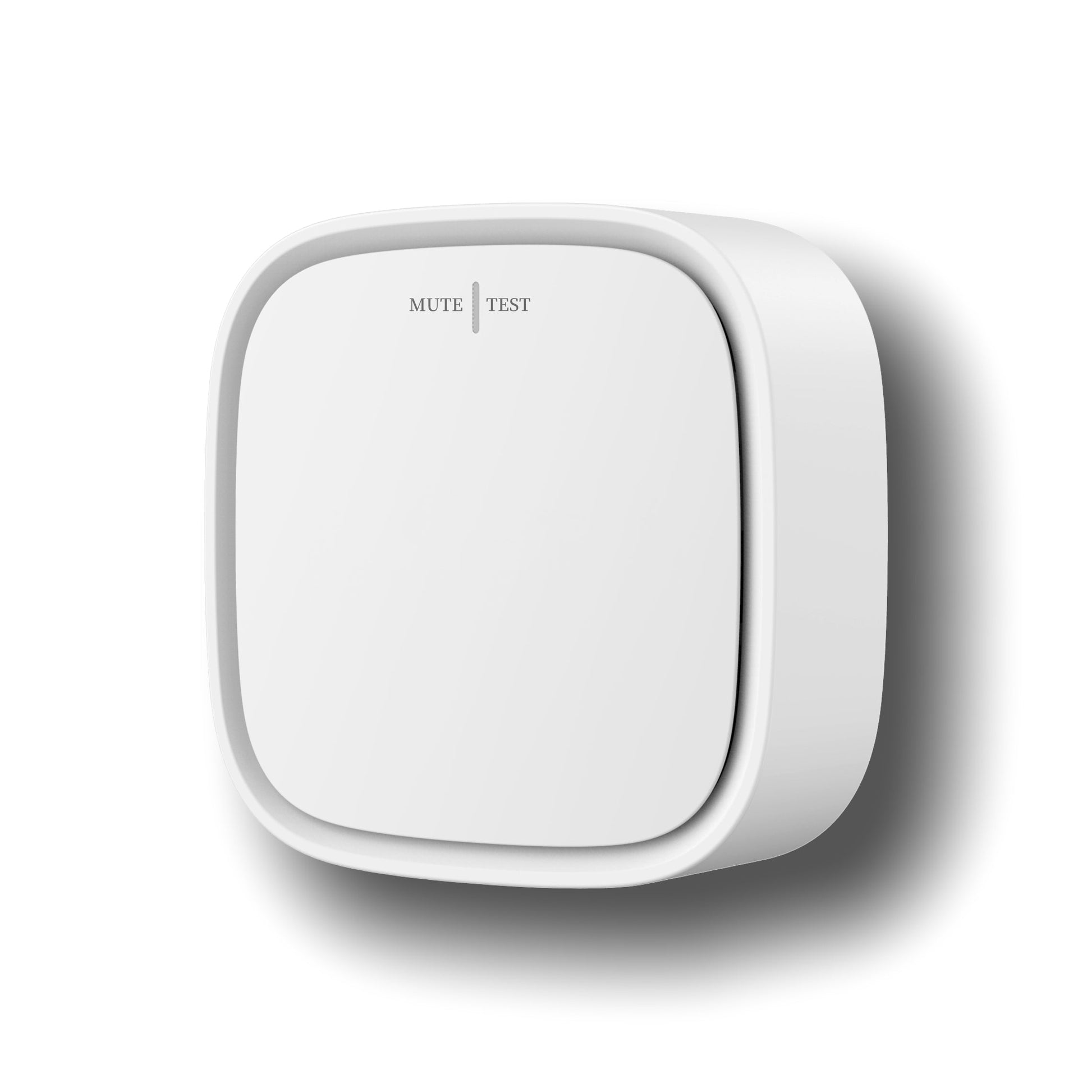

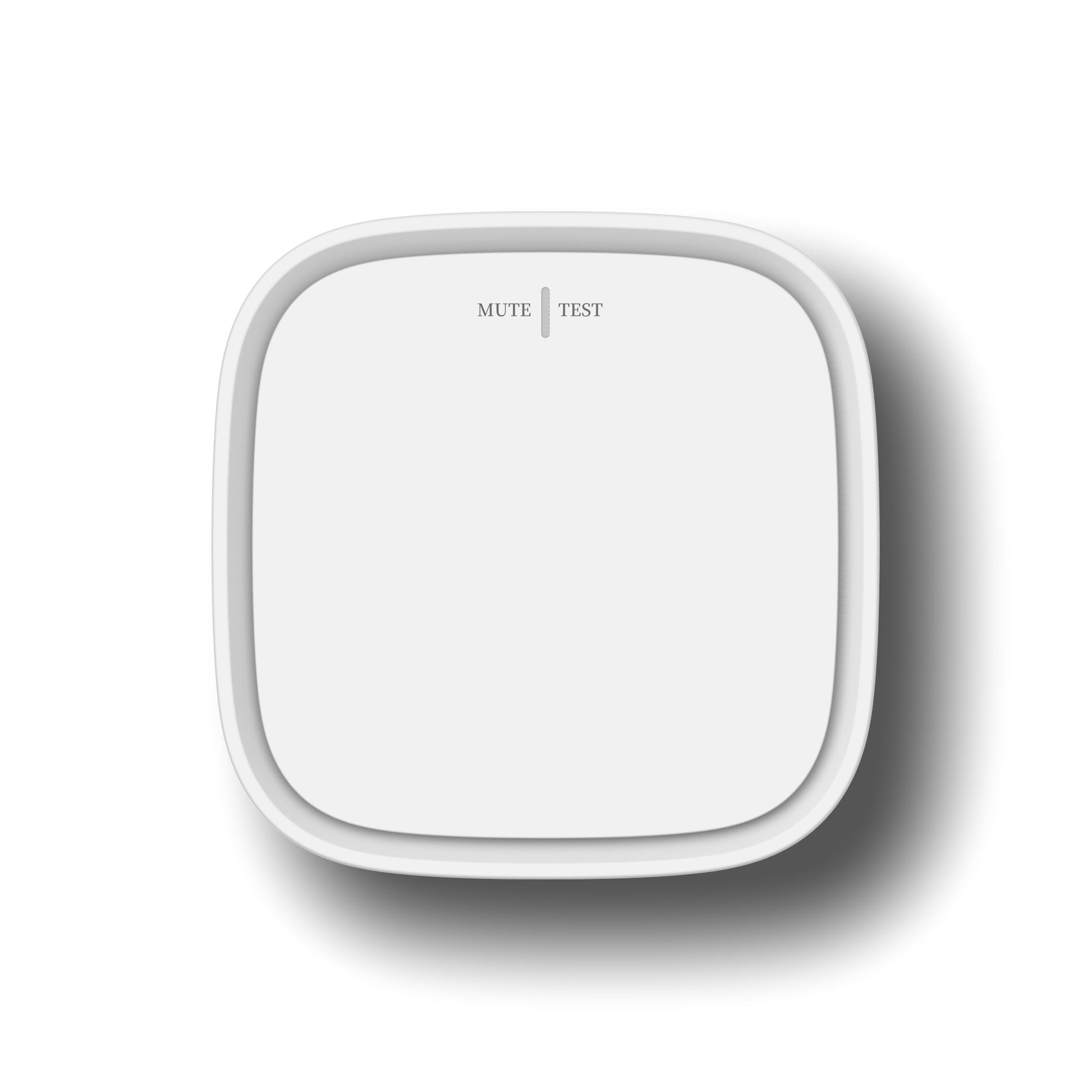

Gas Sensor
Gas Sensor
It detects the concentration of natural gas to determine if there is gas leakage and sends an alarm through indicator lights and a high-decibel buzzer.

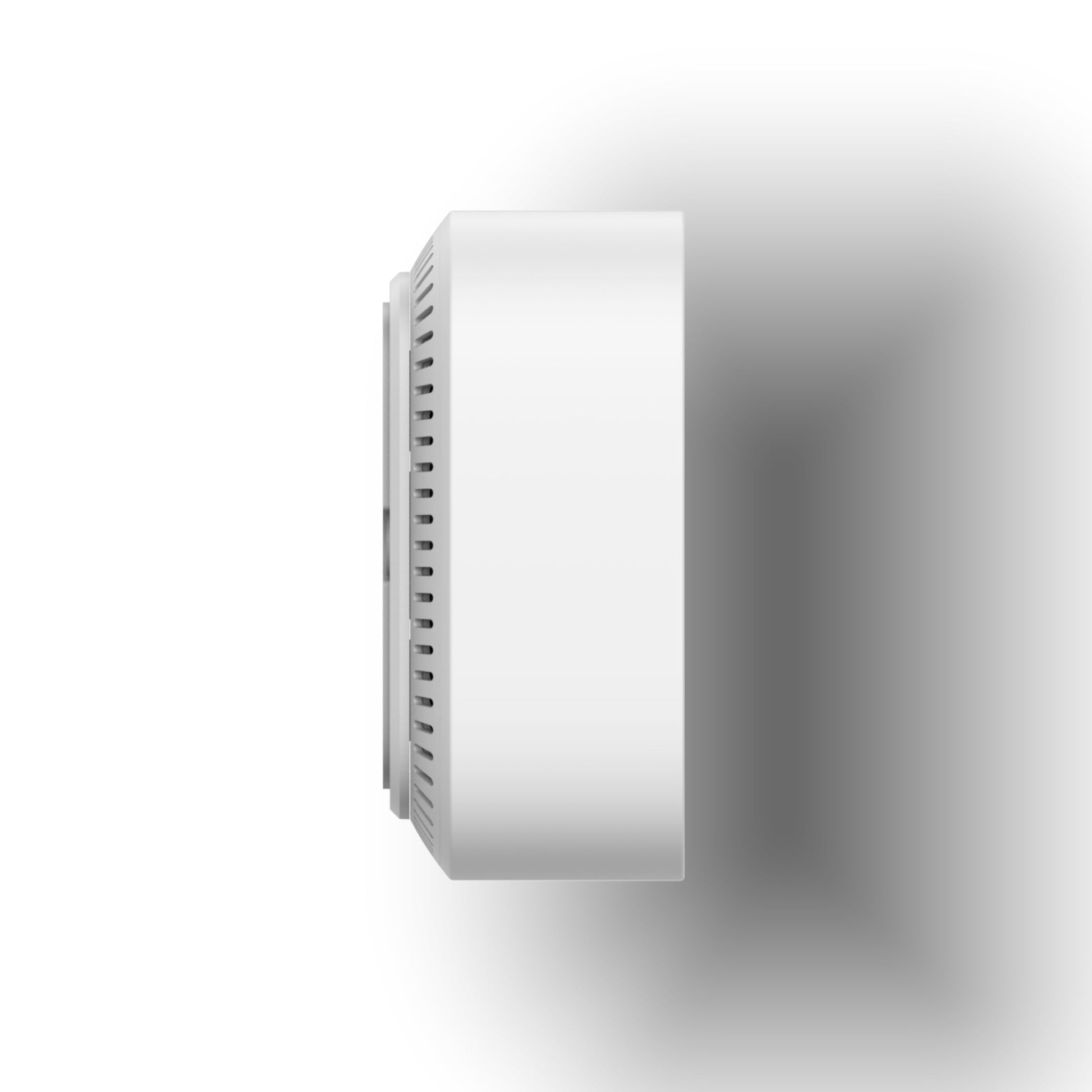

- With a unique air flow window design to avoid direct damage to the core sensor such as oil, smoke, water vapor, etc., to ensure the product continues to work stably.
- With the Wi-Fi communication protocol, it can be directly connected to the platform without a gateway and push alerts to the APP on a mobile phone for the first time.
- It supports remote mute, local periodic self-test, and APP remote self-test to ensure the product is effective and reliable.
Share
Datasheet
Features
- Unique air flow window design
- Double calibration precision monitoring
- Supports remote mute and remote slel-test
- 70db alarm sound
- Cooperates with other equipment to reduce danger
- Multi-scene application
Parameters
- Power supply mode: DC12V, external power adapter
- Communication mode: Zigbee 3.0 protocol, networking through the gateway, transmission distance of 150m (open environment)
- Detection gas type:CH4(Natural Gas)
- Key: one, self-check mute key
- Indicator light: one, red, green and yellow, indicating the working status
- Alarm concentration: 8%LEL
- Alarm concentration error: no more than 3%LEL
- Shell material: PC+ABS

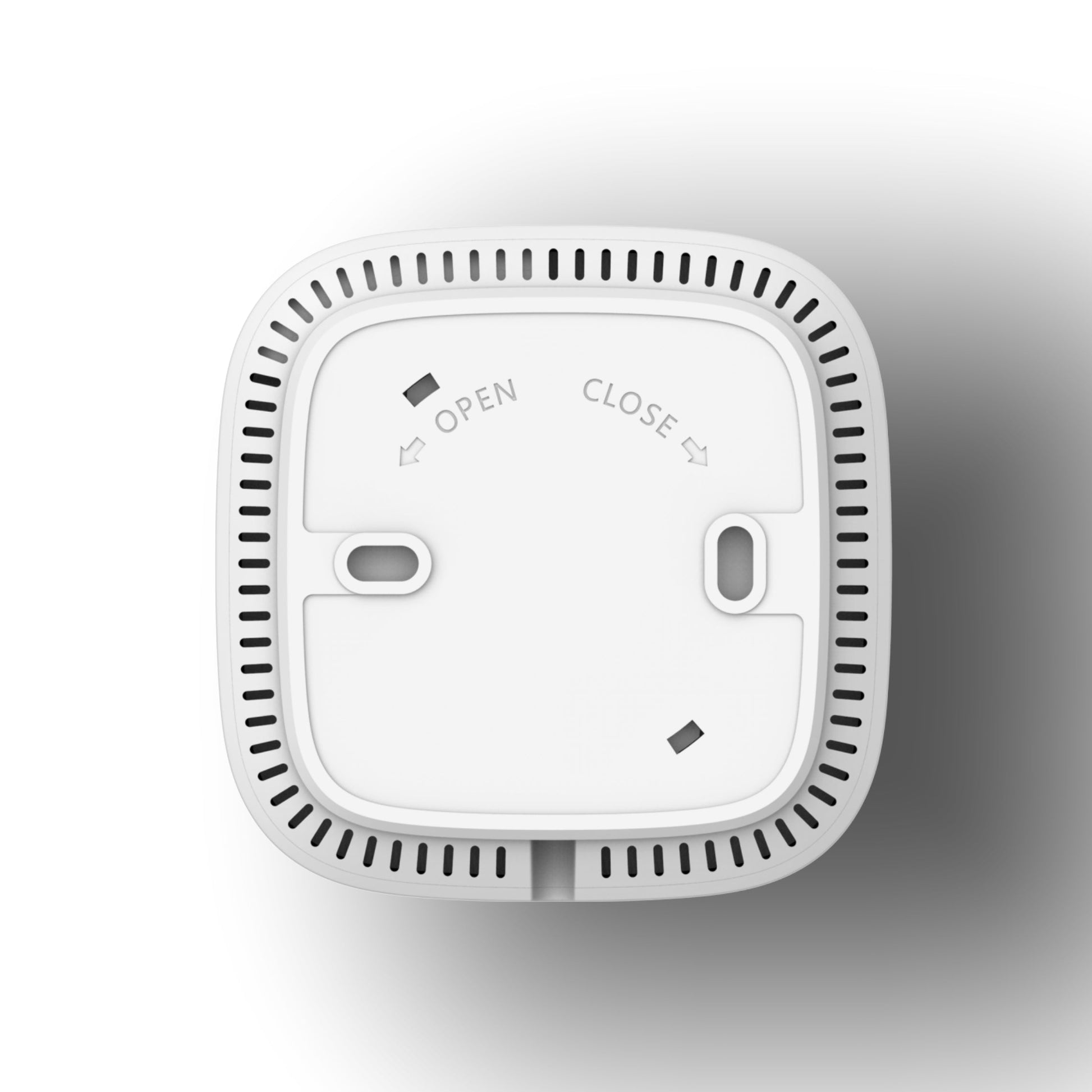

- Installation method: ceiling and wall hanging
- Other functions: regular self-inspection, remote self-inspection
- Alarm sound pressure: 70DB@1m
- Working temperature: -10~+55℃
- Working humidity: 5-95% RH
- Dimension: 66mm × 66mm × 29mm
