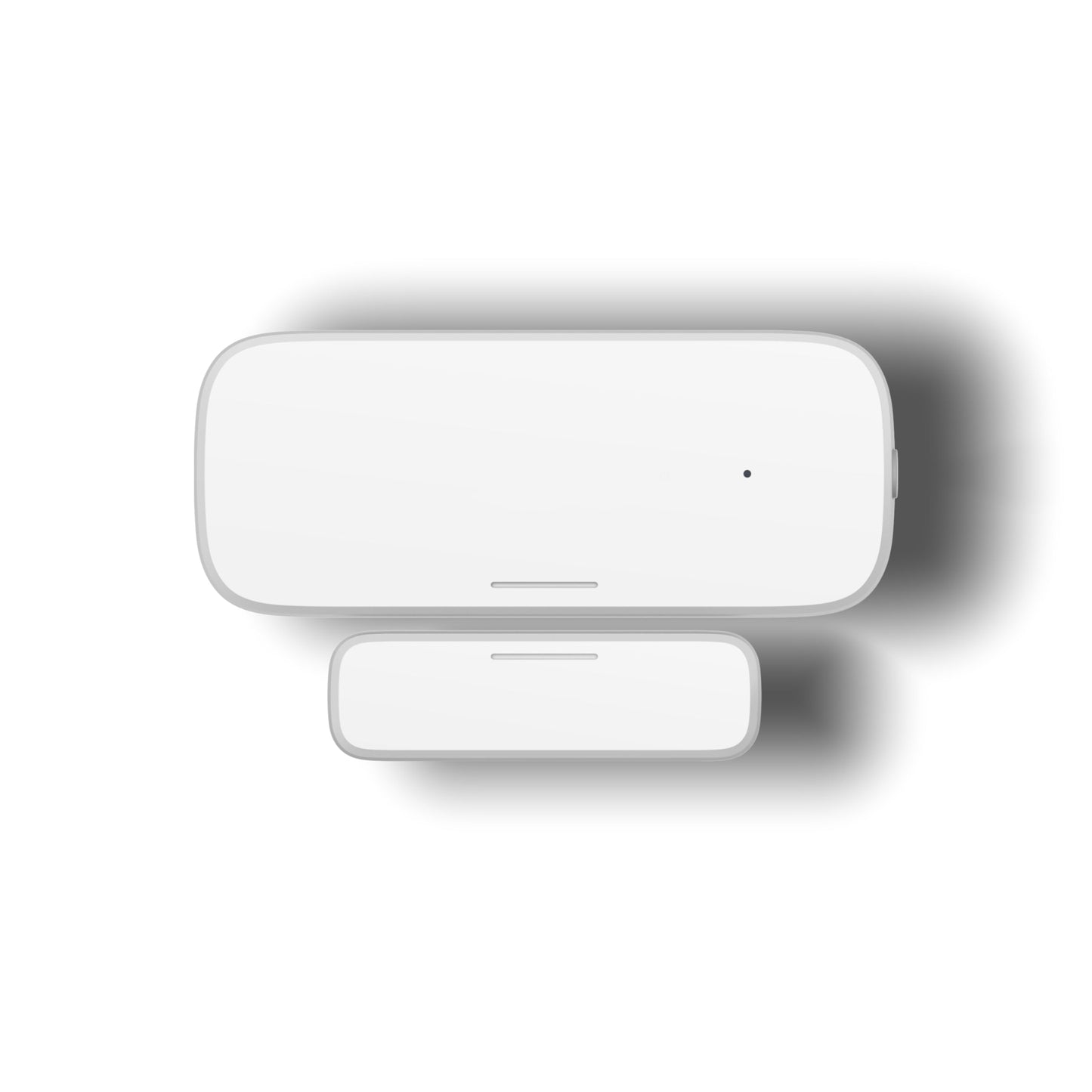

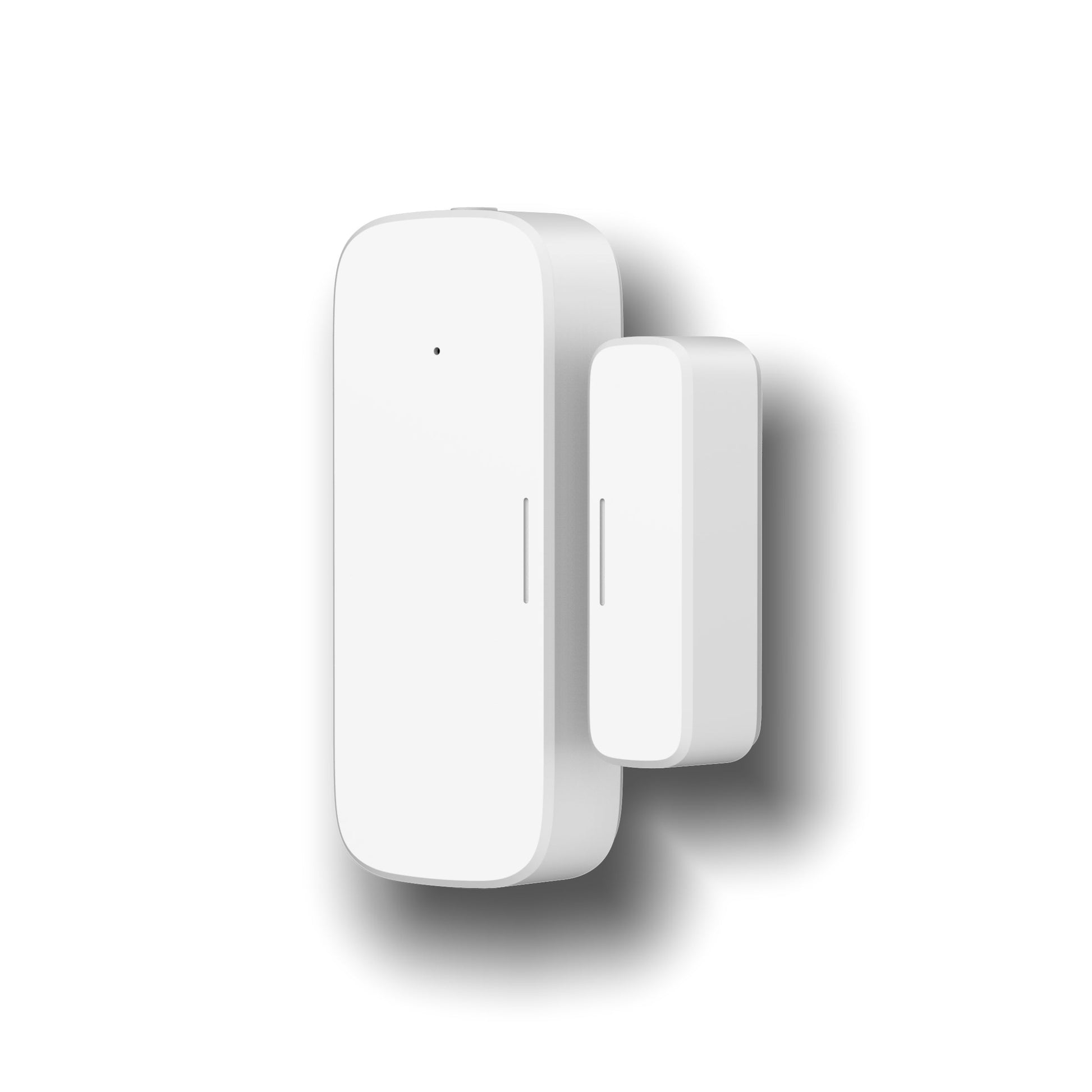

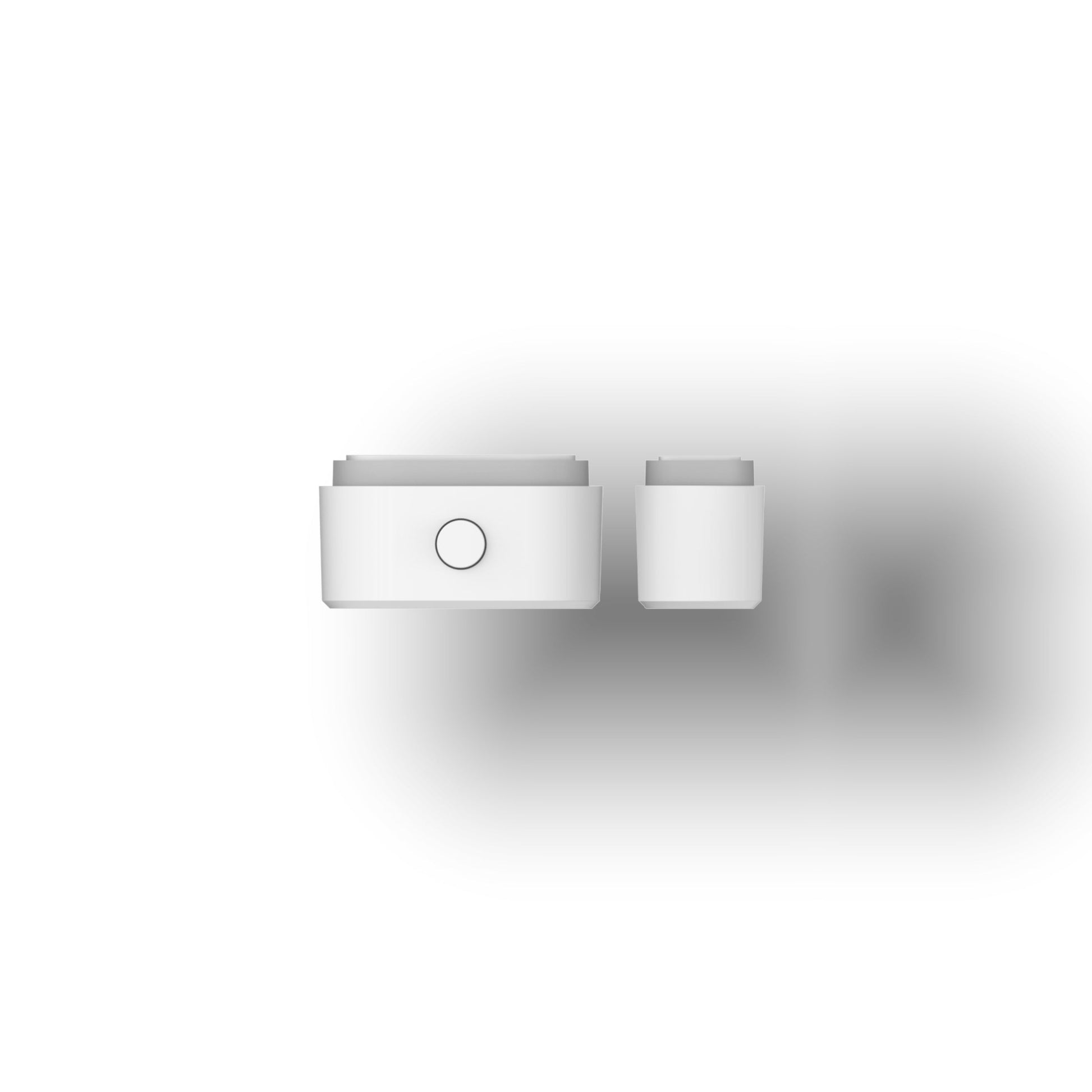

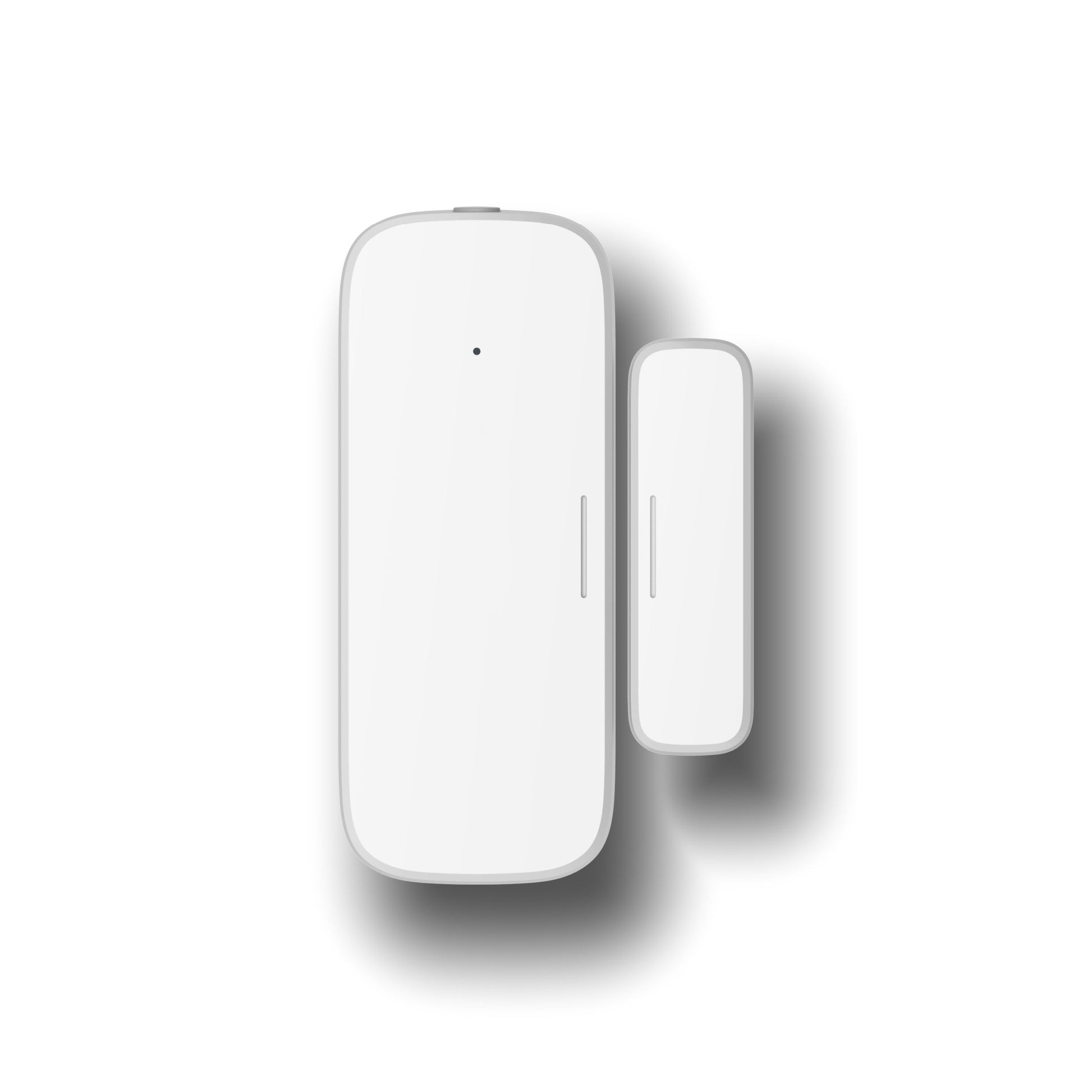

Door & Window Sensor

Door & Window Sensor

It detects the opening and closing state of the door, window, and cabinet by the magnet's suction to the reed switch.

  • With an anti-tamper function, it will alarm when removed.
  • With low-power design, it will remind users to replace batteries at low voltage, 3M adhesive paste, easy to install;
  • It works with gateway, and supports linkage control and remote reminders.
View full details

Datasheet

Features

  • Monito door & window's status
  • Professinal anti demolition design
  • Supports linkage control and remote reminder
  • Air purifier will enter into standby mode when window is opened for ventilation
  • User Off-Home Mode: Timely Intrusion Alert
  • Ultra low power consumption
  • Multi-scene application

Parameters

  • Power supply: DC3V, CR1632 battery*2pcs
  • Communication mode: Zigbee 3.0 protocol, networking through the gateway, transmission distance of 150m (open environment)
  • Installation method: fix the door and frame with 3M glue and keep them in the same plane
  • Support shell opening and demolition
  • Support low voltage alarm
  • Shell material: PC+ABS
  • Operating temperature: -10℃ ~ +55℃,Working humidity: 5-95%rh
  • Size：Main body54*22.2*12.5mm，Secondary body33.3*10.2*12.5mm
  • Standby time: 1 year (30 triggers per day)
