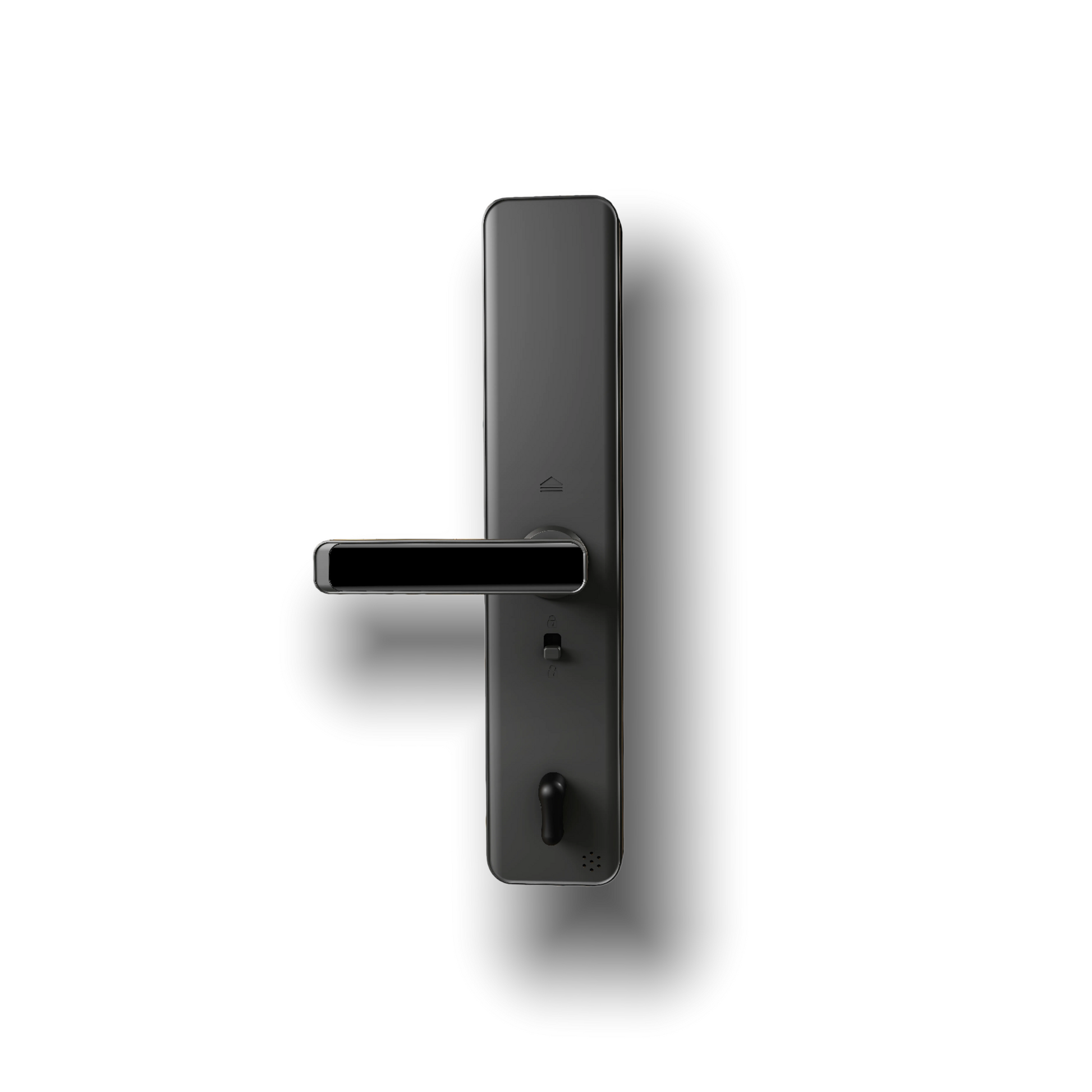

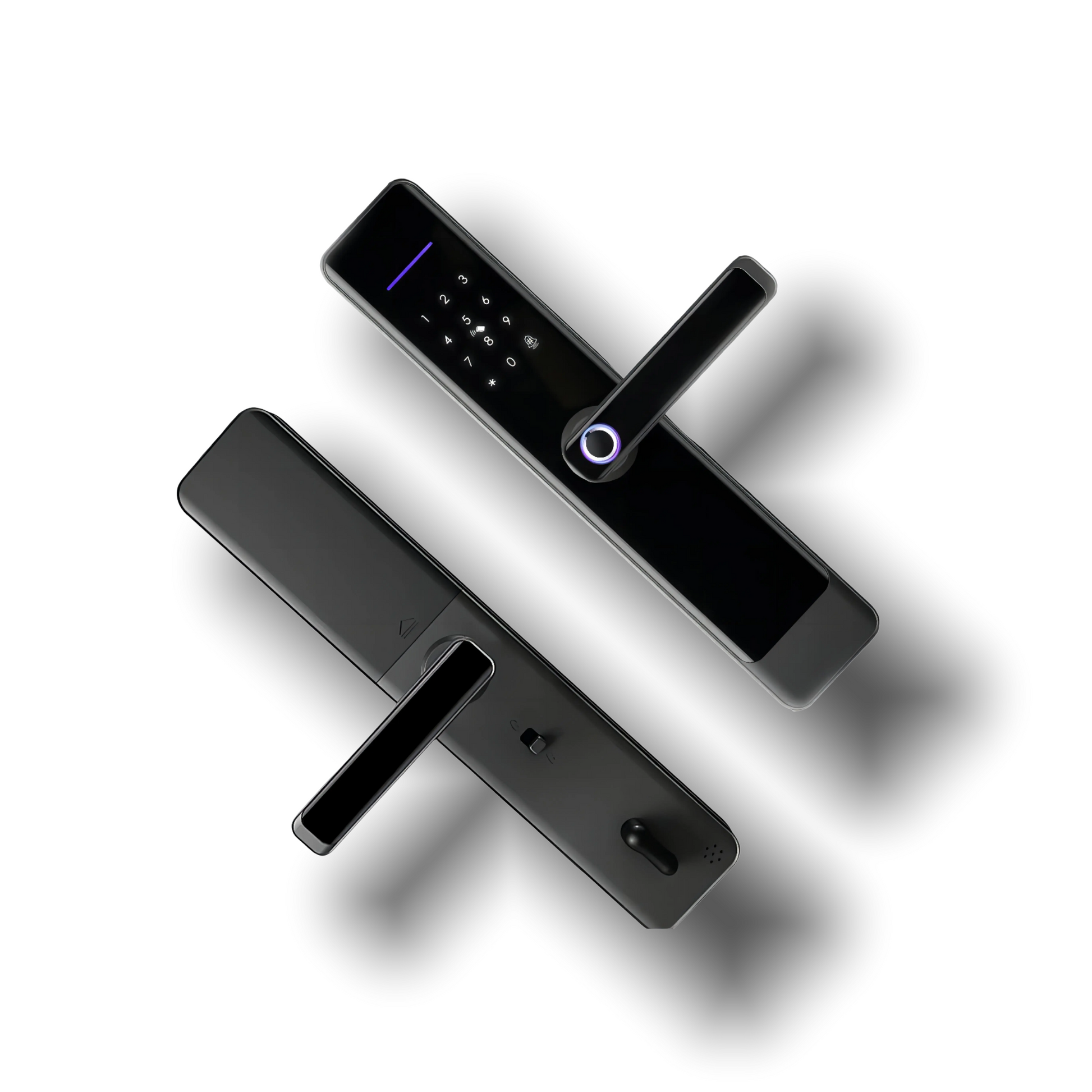

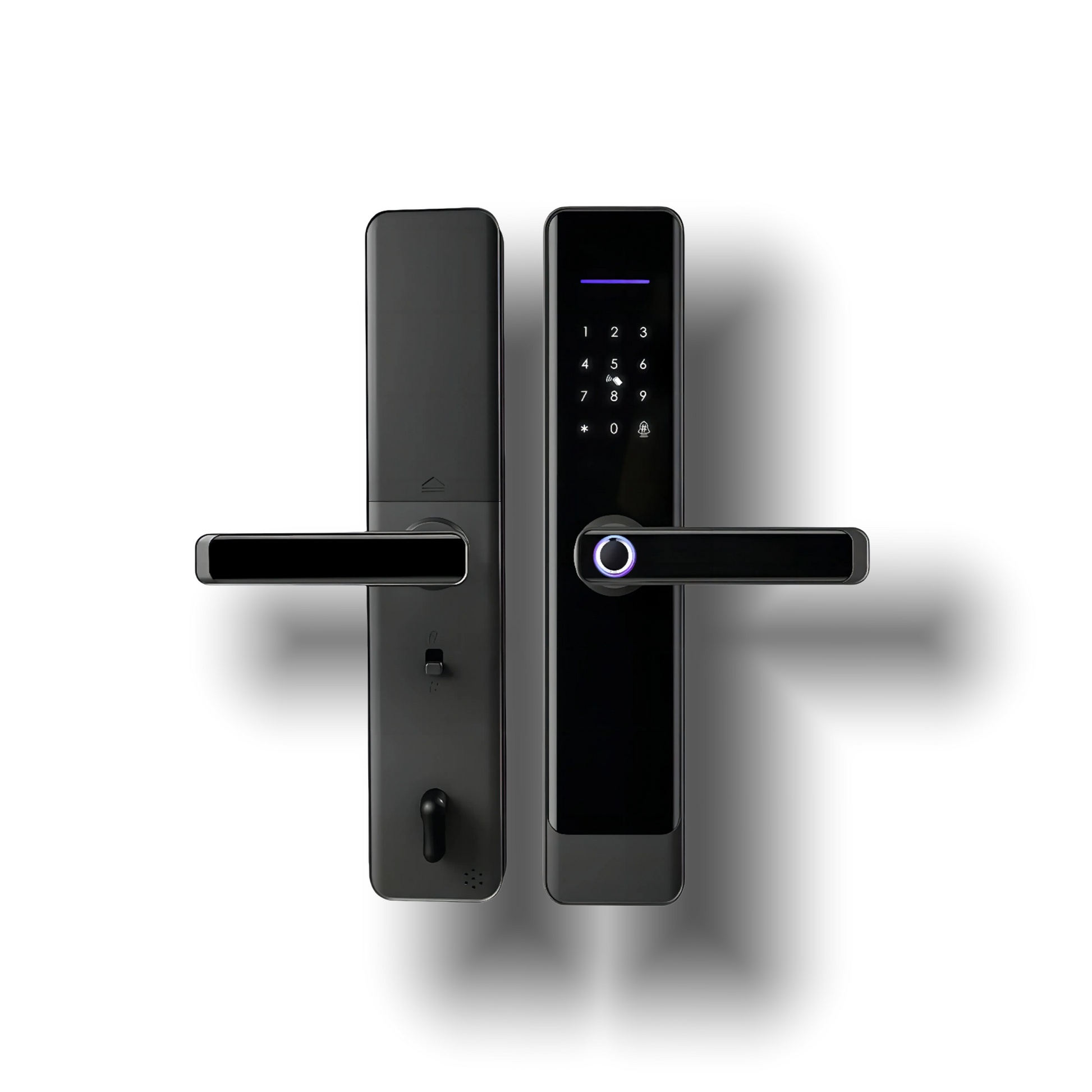

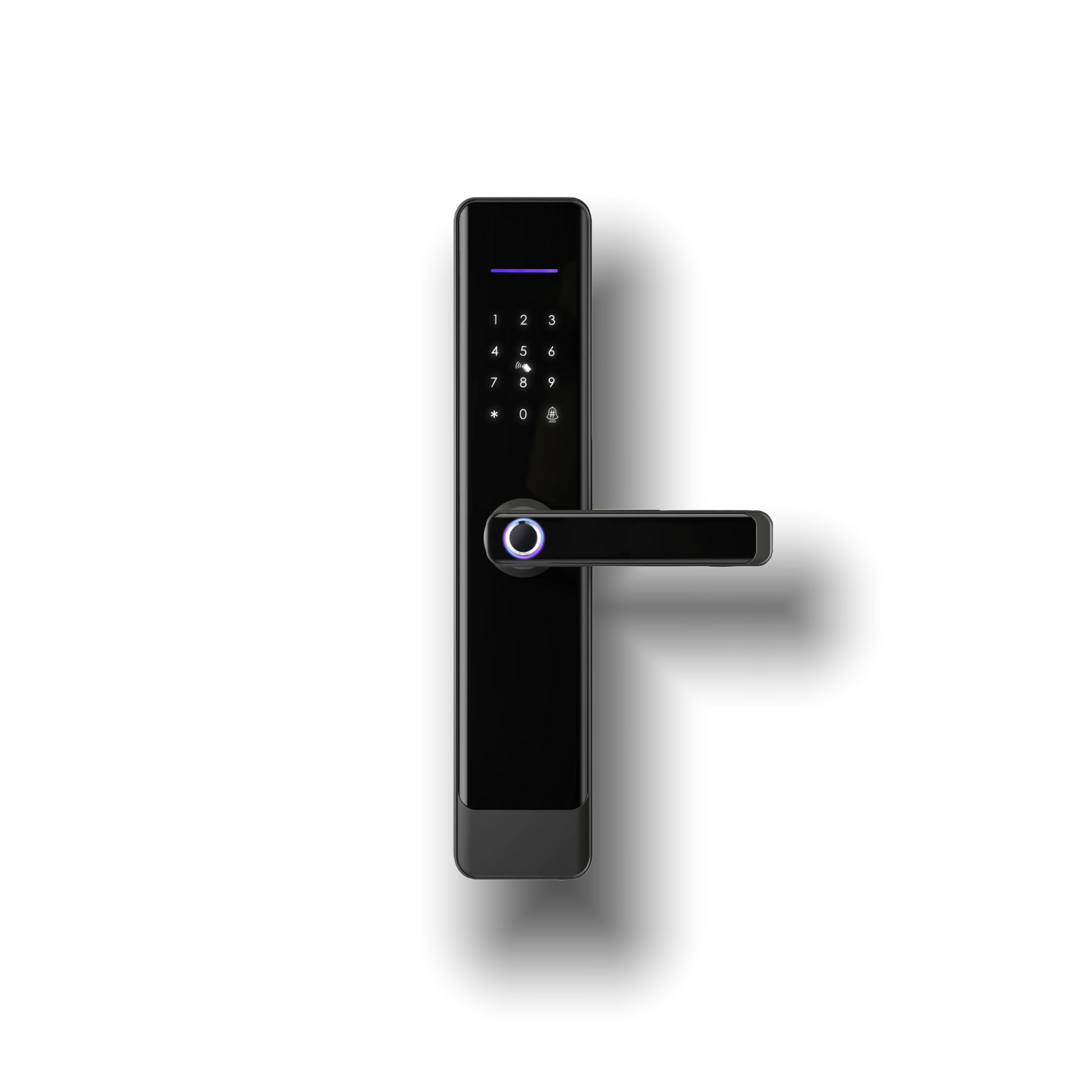

Smart Door Lock

Smart Door Lock

Color
  • Advanced Security Features: This bright door lock offers multiple unlocking methods, including fingerprint, IC card, passcode, app, and mechanical key, ensuring secure access for 100 users. The fingerprint capacity allows for 100 fingerprint registrations, while the 1000 service life makes it a reliable option.
  • Convenient App Control: The lock is compatible with the Tuya, allowing users to control and monitor it remotely via smartphone.
  • Durable Construction: The lock is made of high-quality aluminum alloy, ABS, and tempered glass, ensuring a long-lasting and durable product.
  • Energy Efficiency: The emergency power supply via USB port provides a backup power source in case of a power outage.
  • Versatile Installation: The lock is compatible with various door types, including wood and steel doors, and can be installed with optional mortise types (4585/6085/7085/5572/6072).
View full details

Datasheet

Features

  • Advanced Security Features
  1. ​6-in-1 Unlocking Methods: Supports fingerprint, IC card, passcode (including 6-8-digit virtual passcodes), Tuya app control, mechanical key, Faceprint Reader, and doorbell button integration for versatile access.
  2. Biometric Excellence: Stores up to 100 fingerprint registrations with a 1,000-cycle durability rating for long-term reliability.
  3. ​Camera Surveillance: Equipped with a digital door viewer and infrared-enabled camera to monitor visitors in real-time, even in low-light conditions.
  4. ​Anti-Tamper Alerts: Automatically displays door status and triggers alerts for unauthorized access attempts.
  • ​Smart Connectivity & Control
  1. ​Tuya App Integration: Remote lock/unlock, real-time access logs, and activity notifications; Generate temporary virtual passcodes for guests or service providers.
  2. ​Auto-Door Status Detection: Camera automatically activates to show outdoor situations when motion is detected.
  • ​Robust Construction
  1. ​Premium Materials: Combines aerospace-grade aluminum alloy, impact-resistant ABS, and scratch-resistant tempered glass.
  2. ​Weatherproof Design: Built to withstand harsh environments (exact IP rating not specified but implied by material quality).
    ​Power & Energy Management
  • ​Dual Power Options:
  1. Built-in rechargeable battery with low-power alerts.
  2. Emergency USB-C port for external power backup during outages.
  • ​Universal Installation
  1. Multi-Door Compatibility: Fits wood, steel, and composite doors (thickness: 38–55mm).
  2. ​Customizable Mortise Kits: Optional mortise types (4585/ 6085/ 7085/ 5572/ 6072) for seamless integration with diverse door frames.

Parameters

  • Aluminum Alloy Handle And Panel, WiFi/Zigbee 3.0
  • Unlock Way: Fingerprint/ Password/ Card/ NFC/ App/ Mechanical Key
  • Material: Aluminum Alloy
  • Cylinder: C-Level
  • Available Door: Wood door/Aluminum door/Security door
  • Thickness: 40-120mm
  • Emergency Supply: Type-C
  • Operating Temperature: -20°C ~ 55°C
  • Operating Humidity: 0%RH ~98%RH
  • Color: Black/ Silver

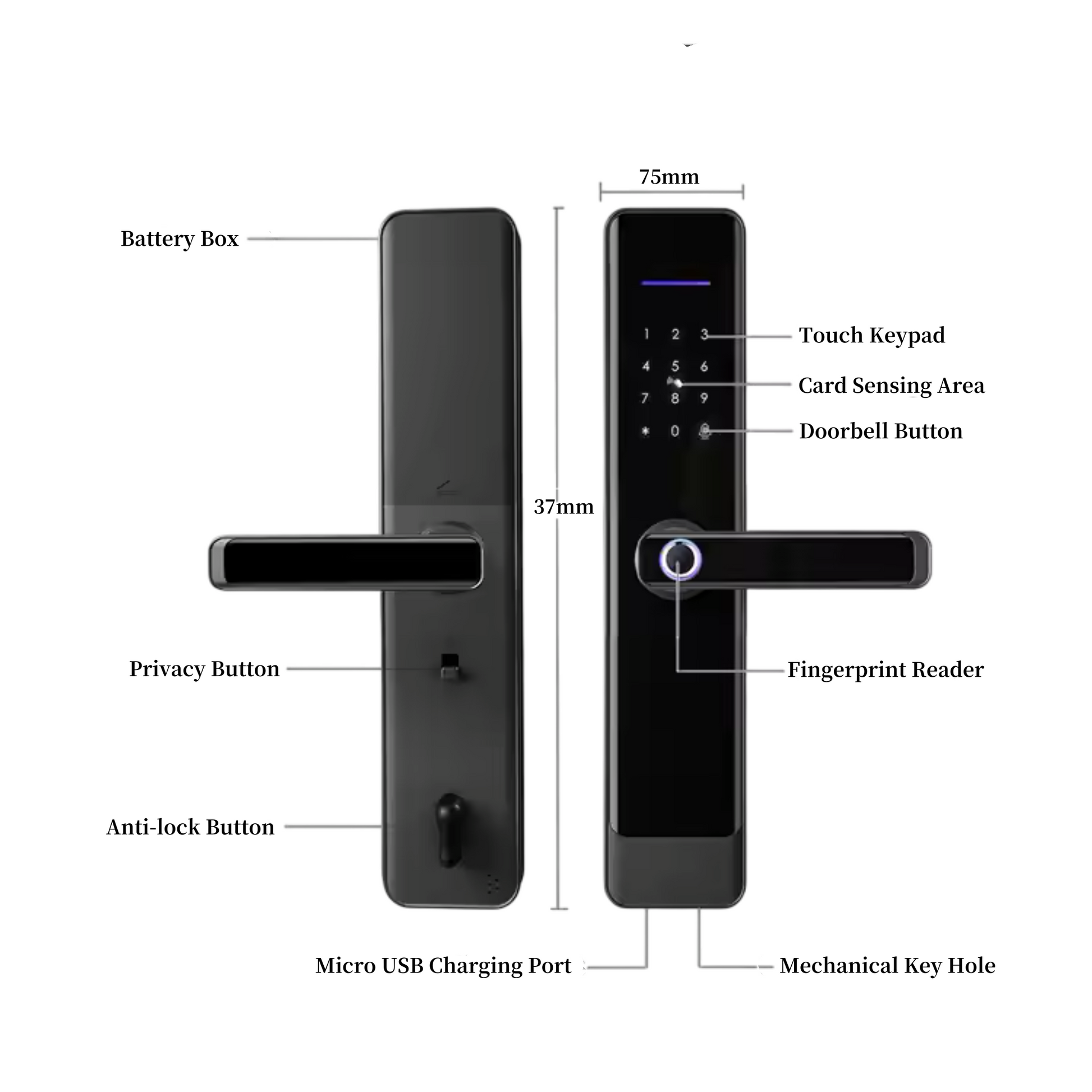

  • Size: 75*373*23mm
