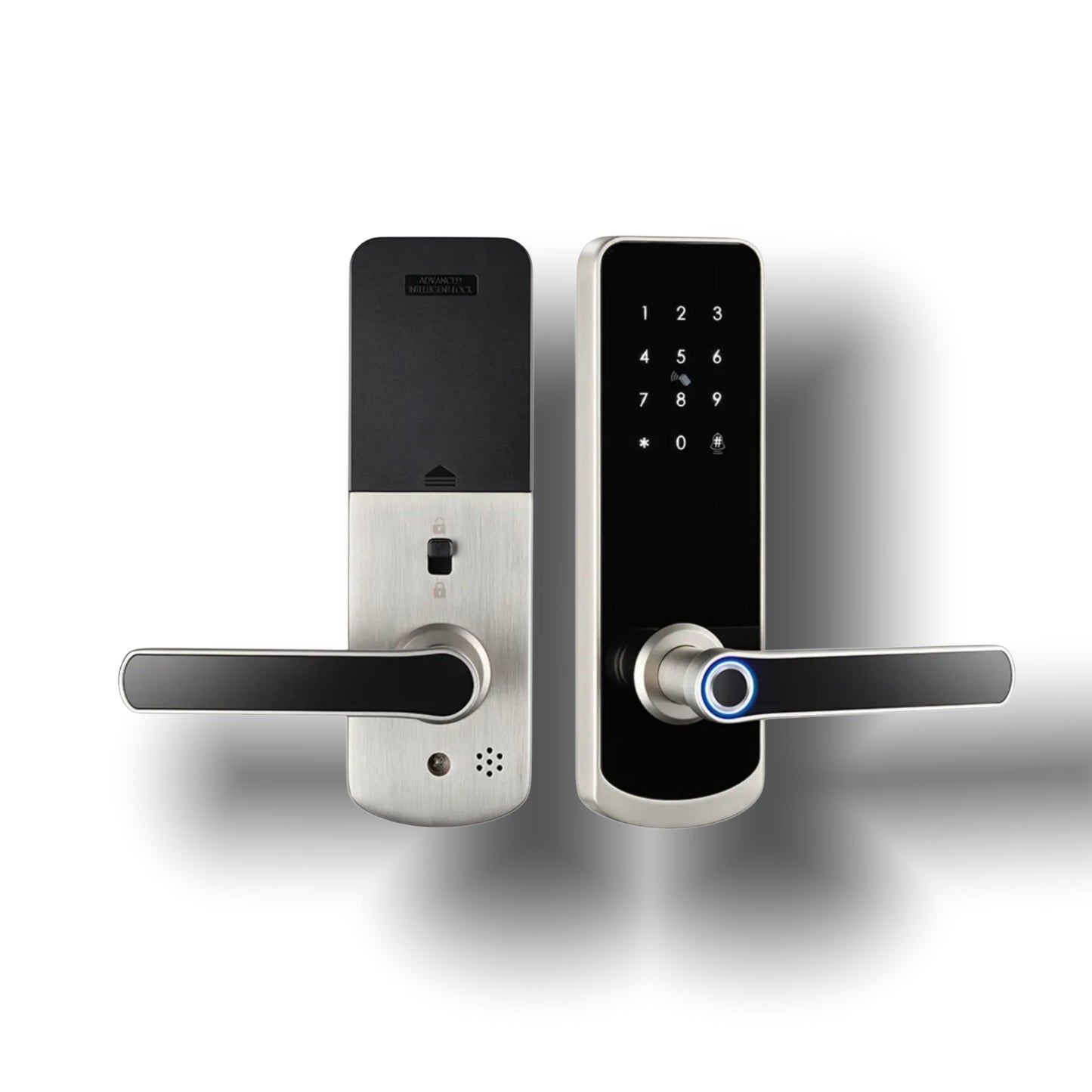

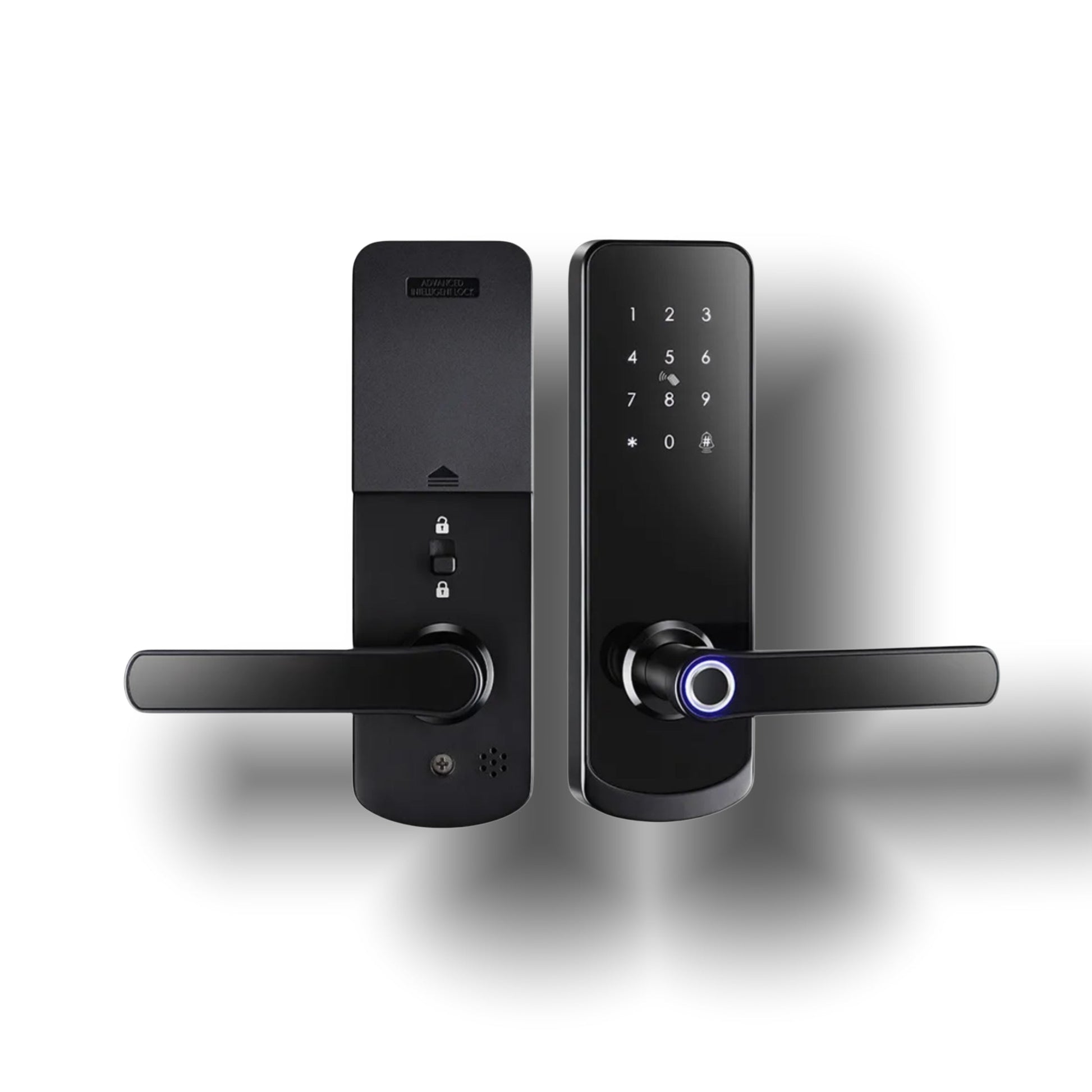

Smart Door Lock

Smart Door Lock

Color
Protocol
  • ​Built-In Doorbell Function: Visitors can press the bell outside to send a real-time notification to the owner's mobile app.
  • ​5 Secure Unlocking Methods: Biometric Fingerprint Recognition; Tuya Smart App Control; Custom Passcode/PIN; RFID Card; Physical Backup Key.
  • Temporary Password Generator: Automatically generates temporary passwords that expire after use, preventing unauthorized access.
  • ​Remote Management via App: Control lock settings and permissions in real-time. View detailed access history (time, user, and method). Receive instant security alerts on your phone.
  • ​Advanced Security Technology: Military-grade encryption for WiFi and app connectivity. Tamper-proof design with anti-pry alarm.
View full details

Datasheet

Features

  • Fingerprint Recognition: High-precision sensor with a virtual recognition area to prevent accidental touches. Fast response time using WIBBLE FUSG Sensor technology for enhanced speed.
  • Password Unlocking: Anti-peeping virtual password: The input interface randomly generates virtual digits to obscure the real password trail.
  • Temporary password support: Customizable validity period and usage count, ideal for guests or cleaning services.
  • IC Card Unlocking: Designed for seniors and children, eliminating the need for complex operations.
  • Mechanical Key Backup: Emergency unlocking assurance with Open 0 Type design.
  • Tuya Ecosystem Compatibility: Supports tuya_wizi/tuya_waki protocols for integration with smart home devices (e.g., lighting and security systems).
  • Remote Control: Manage the door lock via a mobile app (remote unlocking, access logs, and temporary password issuance).
  • Doorbell linkage (Door Bell Notification): Triggers cameras or lighting upon activation.
  • Multi-Protocol Support: 5G/WiFi/Zigbee tri-mode networking ensures low latency and stability with Fast Network technology.
  • Cloud Management: Encrypted command transmission (Cloudy technology). Supports remote firmware updates and data synchronization.
  • Abnormal Status Alerts: Notifications for tampering attempts, low battery, and multiple incorrect password entries.
  • Anti-Hijacking Mechanism: Enter random numbers to confuse onlookers (e.g., hiding password 895134 within a virtual keypad 1235689).
  • Physical Security Redundancy: Concealed mechanical keyhole to prevent technical unlocking methods.

Parameters

  • Aluminum alloy handle and panel, TUYA Wi-Fi/ZIgbee
  • Acrylic reader with 12 digits passcode
  • APP/Password/Fingerprint/Card/Mechanical Key/NFC
  • Emergency key for back up use

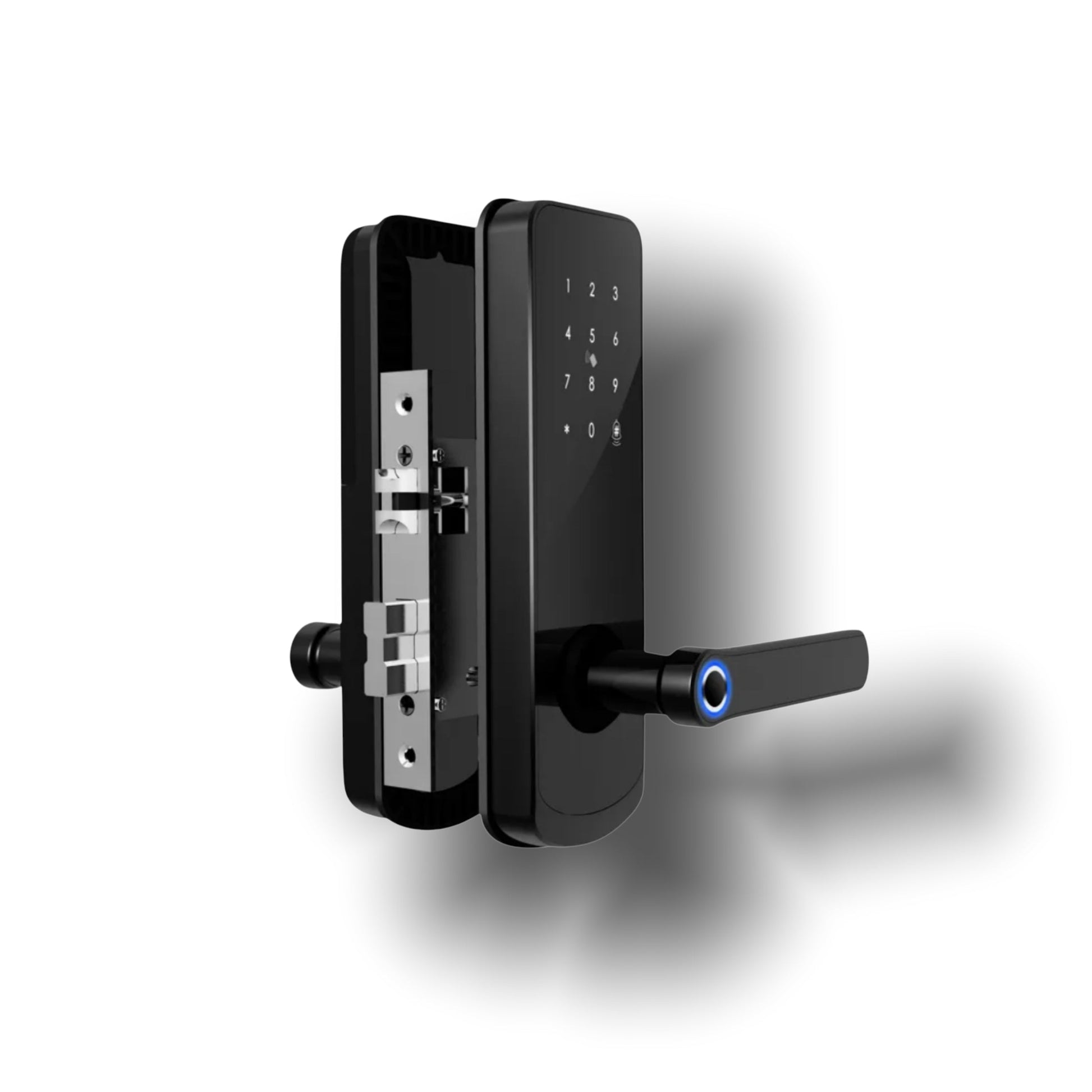

  • Works with single latch or 5050/5072/4585/6085 Mortise
  • Widely used for wood door or replace the knob locks
  • Material: Aluminum alloy

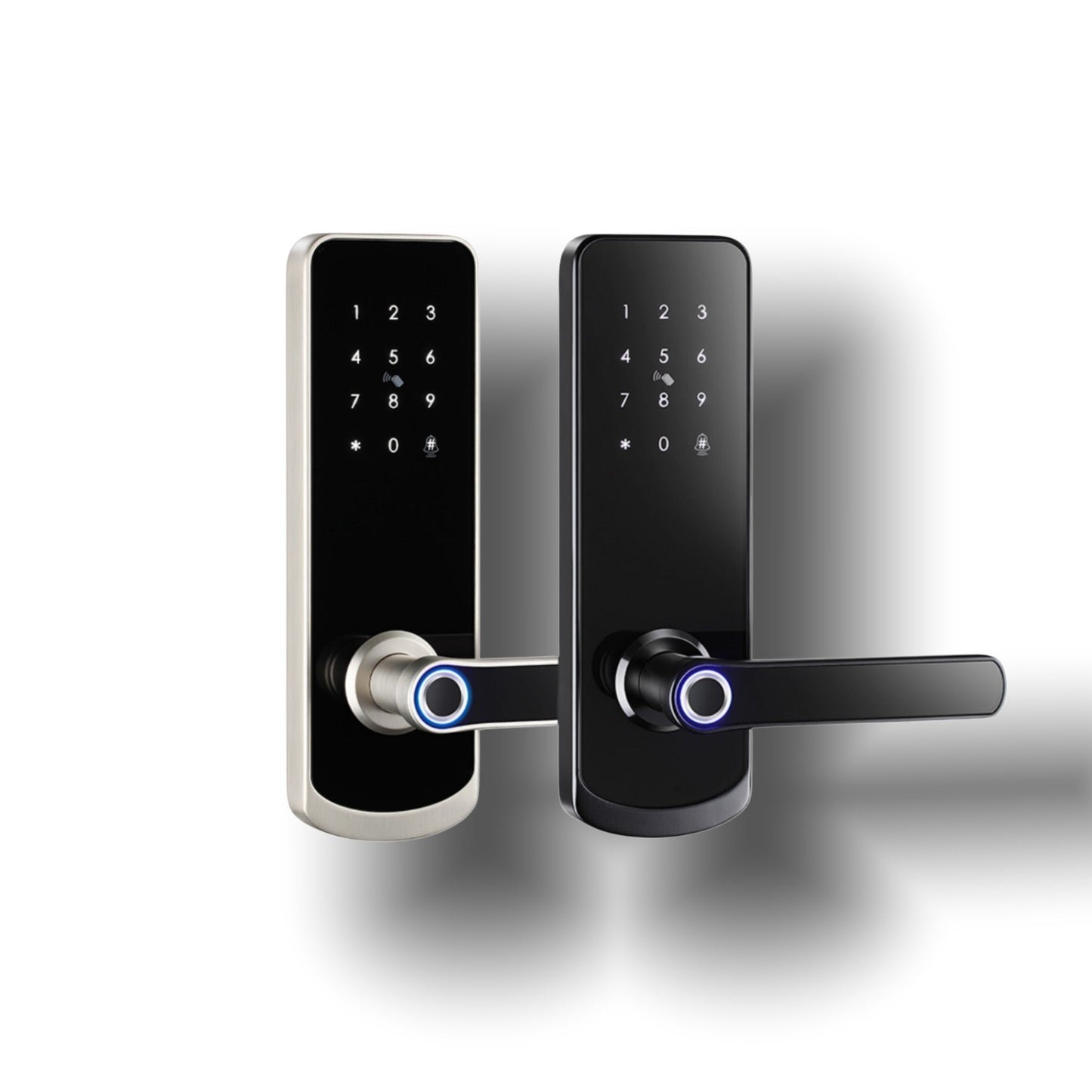

  • Color: Black/Silver
  • Cylinder: C-Level
  • Applicable Door Thickness:35-65mm
  • Emergency Supply: Type-C
  • Working Environment: Temperature -20°C~55°C, Humidity 10%~95%RH
  • Size: 76*234*25mm
