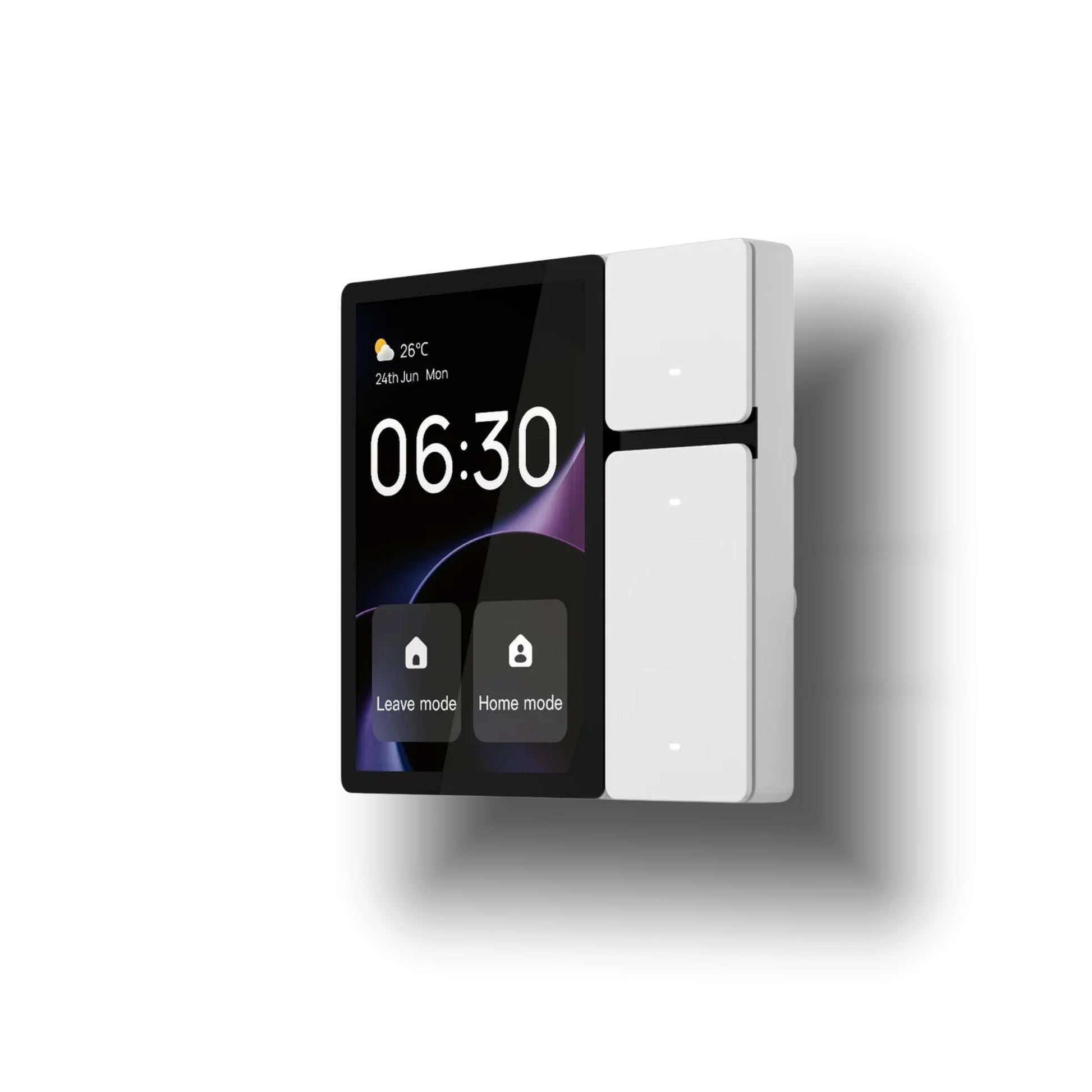

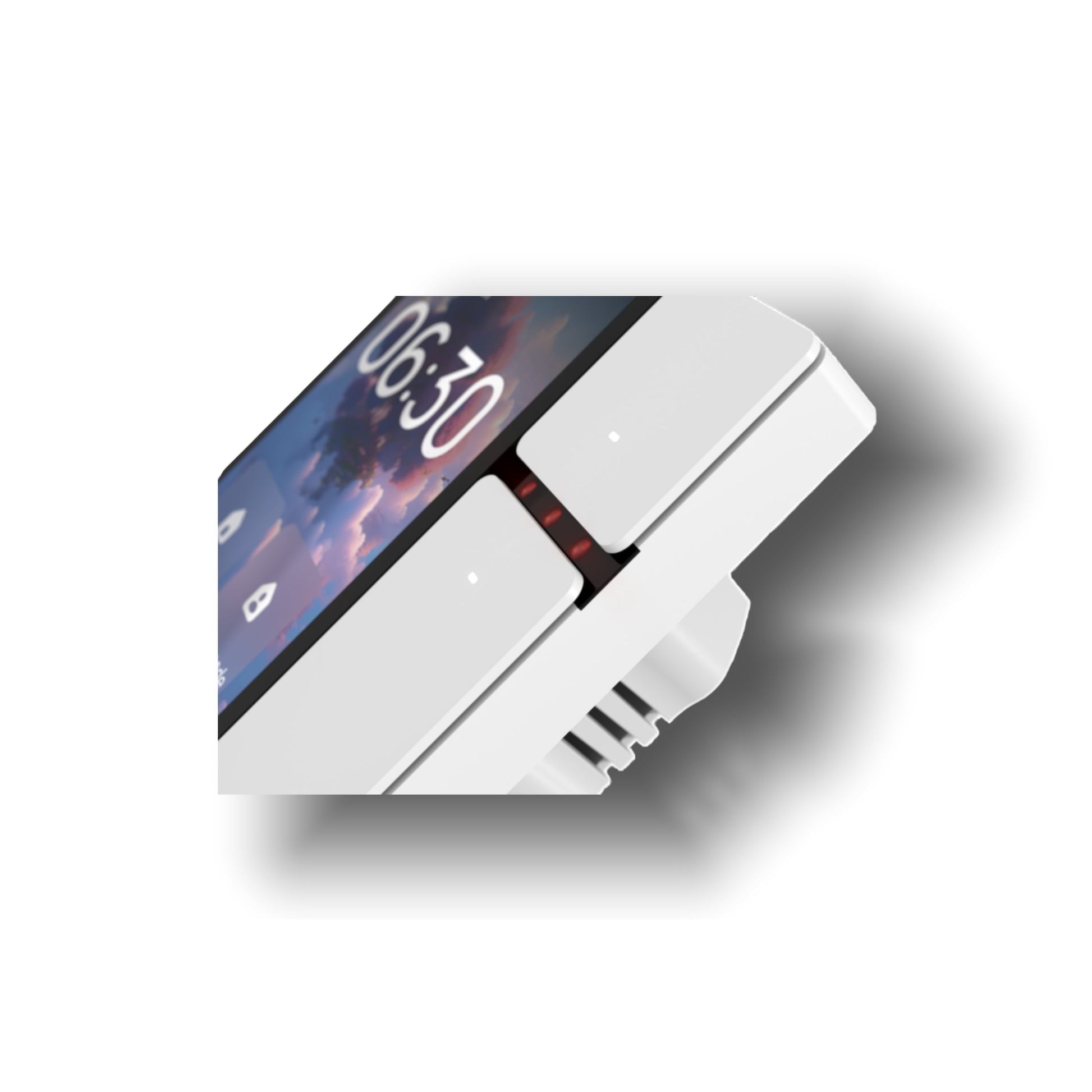

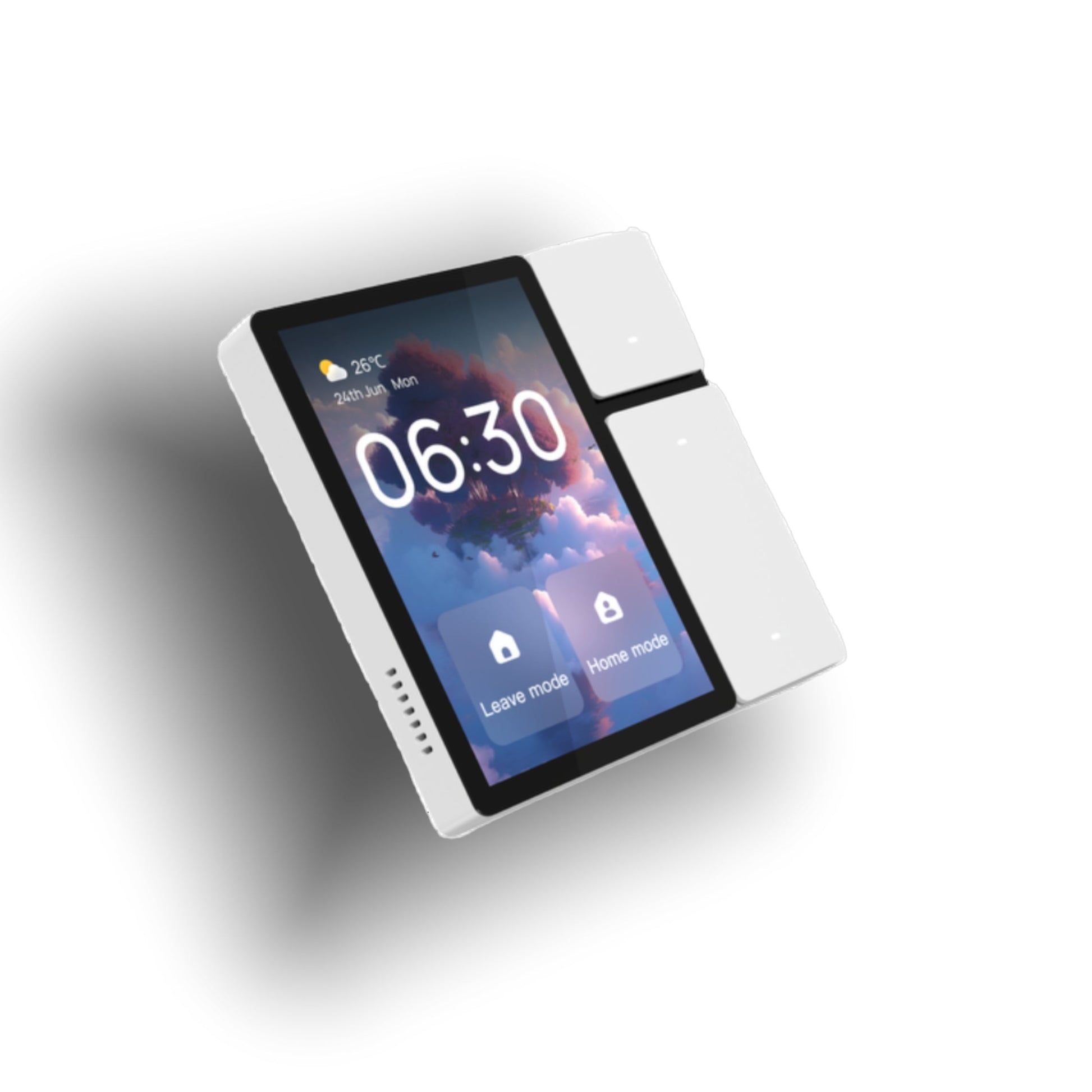

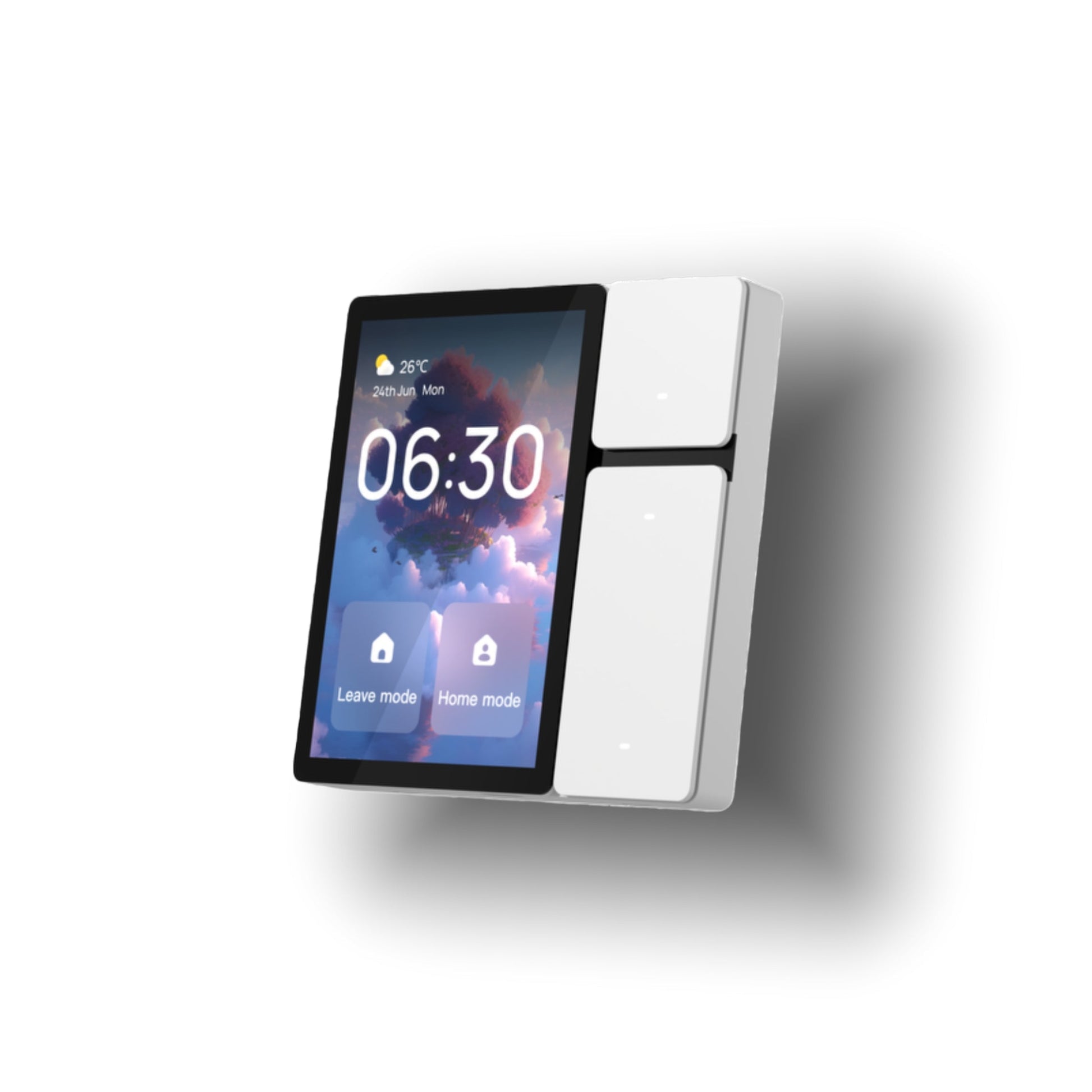

Control Panel Mini

Control Panel Mini

  • Smart Control Panel Mini is a multifunctional interactive device that integrates a screen, three physical buttons, three relay channels, and infrared remote control.
  • Through the screen, various devices and scenes at home can be controlled. The three relay channels can replace traditional switches to control three lighting devices. The buttons can be customized for
    relay control or scene control. Additionally, the built-in infrared remote control can directly control infrared devices such as TV and air conditioning at home.
  • In addition to controlling devices and scenes, the Smart Control Panel Mini also supports smart cameras, visual doorbells, and visual door locks. Users can view camera footage on the screen and directly unlock the door on the screen by integrating with the visual door lock.
View full details

Datasheet

Features

  • Ultra-large Screen Ratio: 3.5-inch smart central control screen, the largest screen display area in its class.
  • Three Separate Relays & Sigmesh Gateway Integration: Efficient control integrating three separate relays and Bluetooth Sigmesh network.
  • Built-in Infrared Remote Control: Built-in infrared remote control can control a variety of infrared devices in the home.
  • Instant Control Physical Buttons: Equipped with three physical buttons to achieve quick function access.
  • Unlocking On Screen: Realize direct control of smart door lock unlocking through screen.
  • Work With Alexa: The Mini center control panels that work with Alexa cannot replace the voice function and require additional speakers to realize voice control.

Parameters

  • Product Name: Smart Control Panel Mini
  • Product Model: TPP06
  • Input: 100-240V~;50/60Hz
  • Wireless Protocol: Wi-Fi、Sigmesh、IR
  • Maximum total load: 600W
  • Maximum load per channel: 200W
  • Operating Temperature: 0°C~40°C
  • Operating Humidity: 5% to 90% RH (Non-condensing)
  • Size: 86*86*11.5mm (excluding base); 86*86*35.5mm (including base)
  • Frequency Band: 2400-2483.5MHz
  • Maximum Radio Transmit Power: 20dBm
