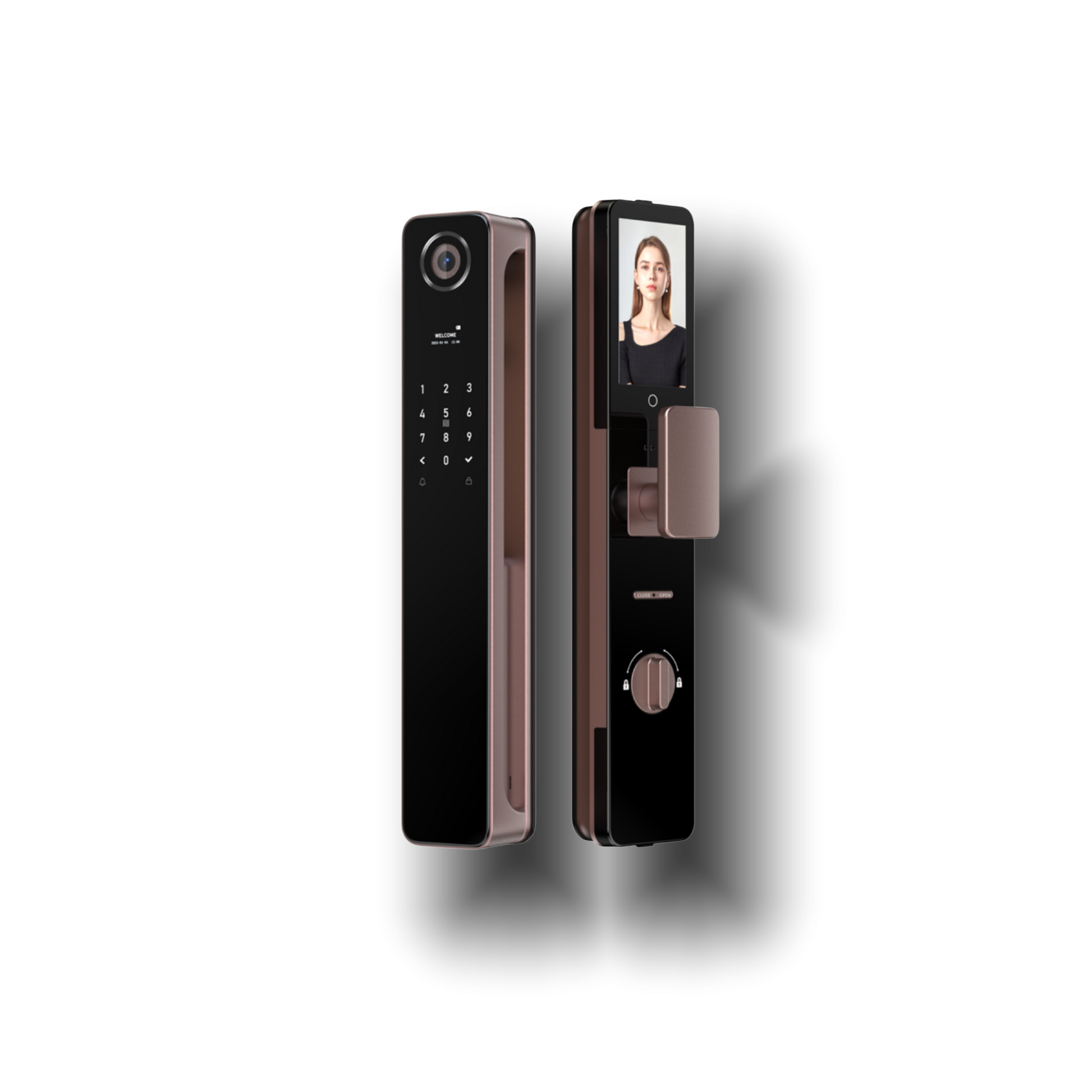

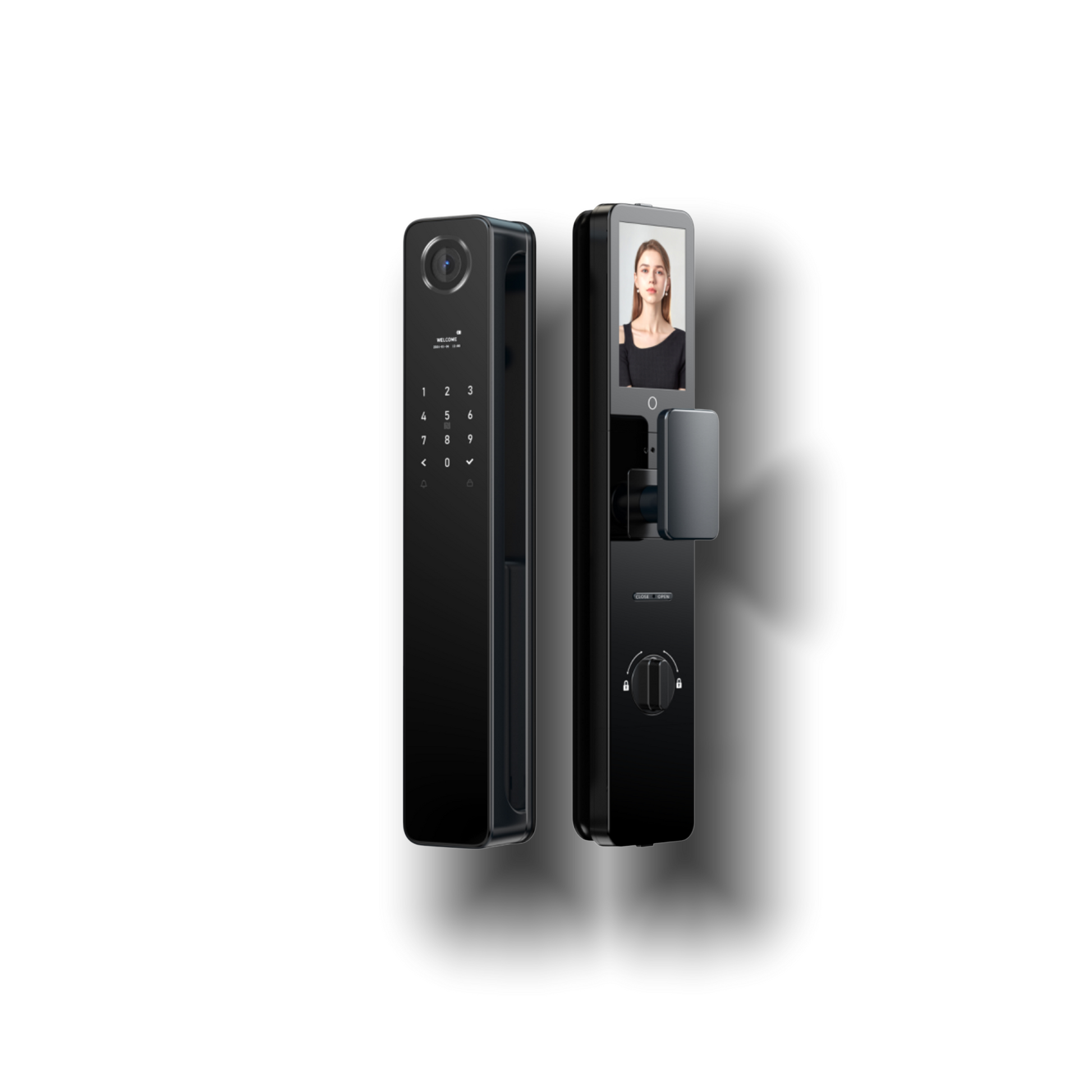

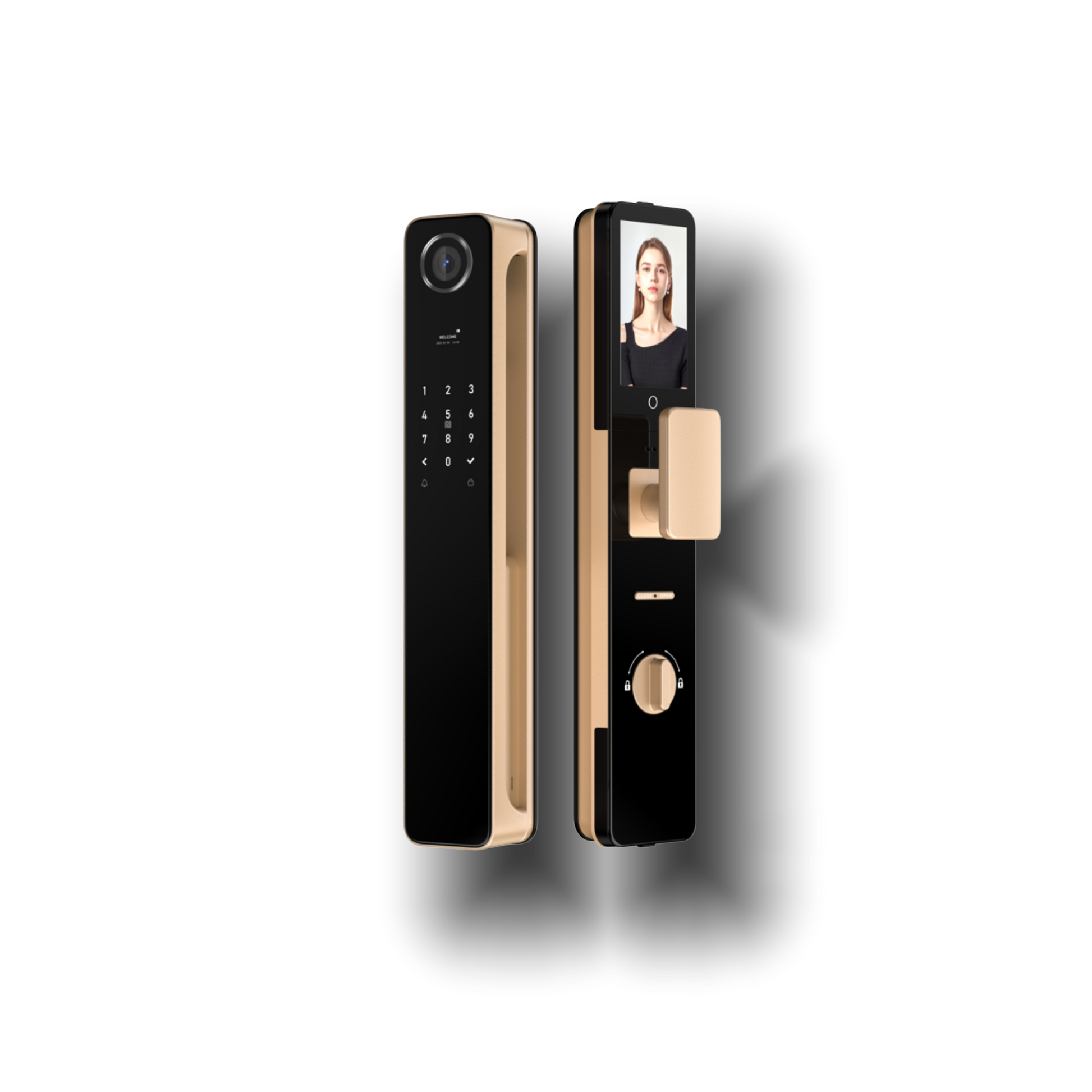

Smart 3D Face Recognition Lock

Smart 3D Face Recognition Lock

Color
  • The product is a cutting-edge electronic door lock that integrates advanced biometric technology with smart home connectivity, designed for modern households and commercial spaces.
  • Featuring 10 unlocking methods (including 3D structured-light facial recognition, palm vein scanning, fingerprint, PIN code, IC card, etc.), it enables keyless, secure access.
  • Equipped with a 5-inch HD touchscreen for real-time video intercom and remote management (via Tuya App), it is powered by dual lithium batteries (8900mAh total) for extended operation. Its robust metal construction, anti-tamper alarms, and error-triggered lockout ensure comprehensive physical and digital security.
View full details

Datasheet

Features

  • ​3D Facial Recognition:
  1. Milliseconds response time with infrared night vision.
  2. Resists spoofing via photos/videos; adapts to glasses/makeup.
  • Palm Vein Authentication:
  1. Contactless, hygienic, ideal for children/elderly users.
  • Fingerprint Sensor:
  1. Stores up to 100 fingerprints with high-precision scanning.
  • ​Anti-Peeping PIN Code:
  1. Enter disguised passwords (e.g., XXX123456XXX) to prevent shoulder surfing.
  • Emergency Overrides:
  1. Morse Code Dial: Mechanical 6-digit input when batteries deplete.
  2. Type-C External Power: Instant unlock via portable charger.
  • Active Protection:
  1. Tamper alerts, stranger detection with snapshots, and 3-fail lockout.​
  • Tuya App Integration:
  1. Real-time notifications for doorbell rings/unlock logs.
  2. Dual-mode WiFi 2.4GHz or Zigbee (gateway required).
  • HD Intercom Screen:
  1. 5-inch display for live outdoor monitoring.​
  • ​Voice Guidance:
  1. Step-by-step audio instructions.
  • Dual-Battery System:
  1. Hot-swappable 5000mAh + 3900mAh batteries with low-power warnings.
  • Auto-Lock Customization:
  1. Adjustable delay (10/15/20/25 seconds).​
  • Reversible Installation:
  1. Supports left/right-handed door setups.
  • Motor Torque Adjustment:
  1. Low/Medium/High settings for varied door weights.
  • ​Data Logs:
  1. Tracks 100 user profiles and access records.

Parameters

  • ​Material and Craft​: Aluminum alloy; Baked Painting Spraying process
  • ​Applicable Door Type​: Wooden Door, Metal Door
  • ​Applicable Door Thickness​: 45 - 120mm
  • ​Core Unlocking Methods​: 3D Face Recognition, ​Palm Vein Recognition​ (Laser Reader)
  • ​Other Unlocking Methods​: Fingerprint (160 * 160 Semiconductor sensor), Password (supports 32-digit void code), Temporary Password, Key (C-Level Lock Cylinder), Type-C Emergency Power Supply
  • ​Smart Features​: Automatic Locking (Three-axis Gyroscope Sensor), Remote Monitoring, Proximity Induction
  • ​Network Mode​: WiFi
  • ​Intelligent Platform​: Tuya APP; Supports Smart Home ecosystem integration
  • ​Password Quantity​: Stores up to 100 passwords
  • ​Power Supply​: 7.4V; Two Lithium Batteries with a total capacity of 8900mAh
  • ​Operating Environment​: Temperature: -20℃ to 85℃; Humidity: 0 to 93% RH

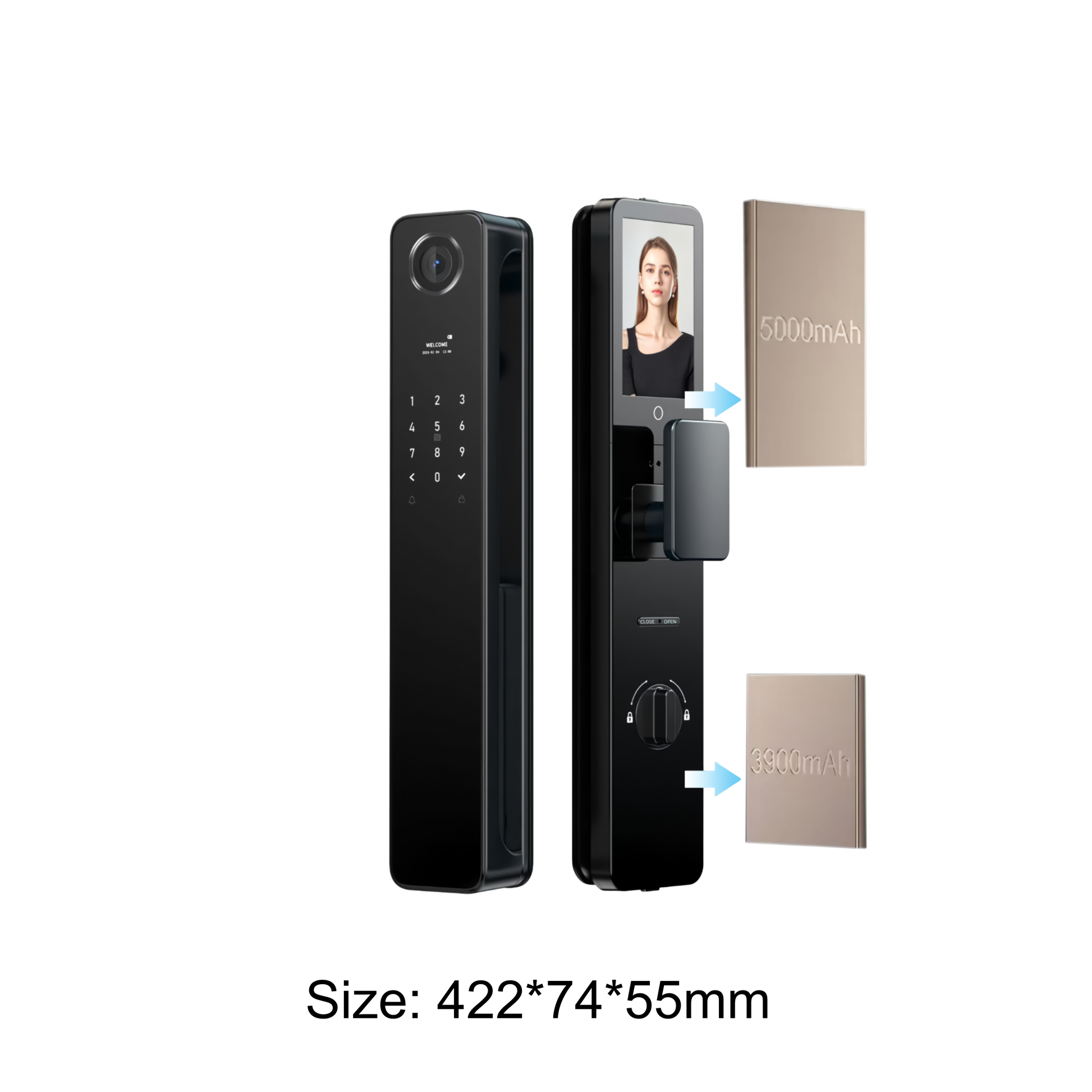

  • Size​: 422mm * 74mm * 55mm

Brochure

Product Manual
