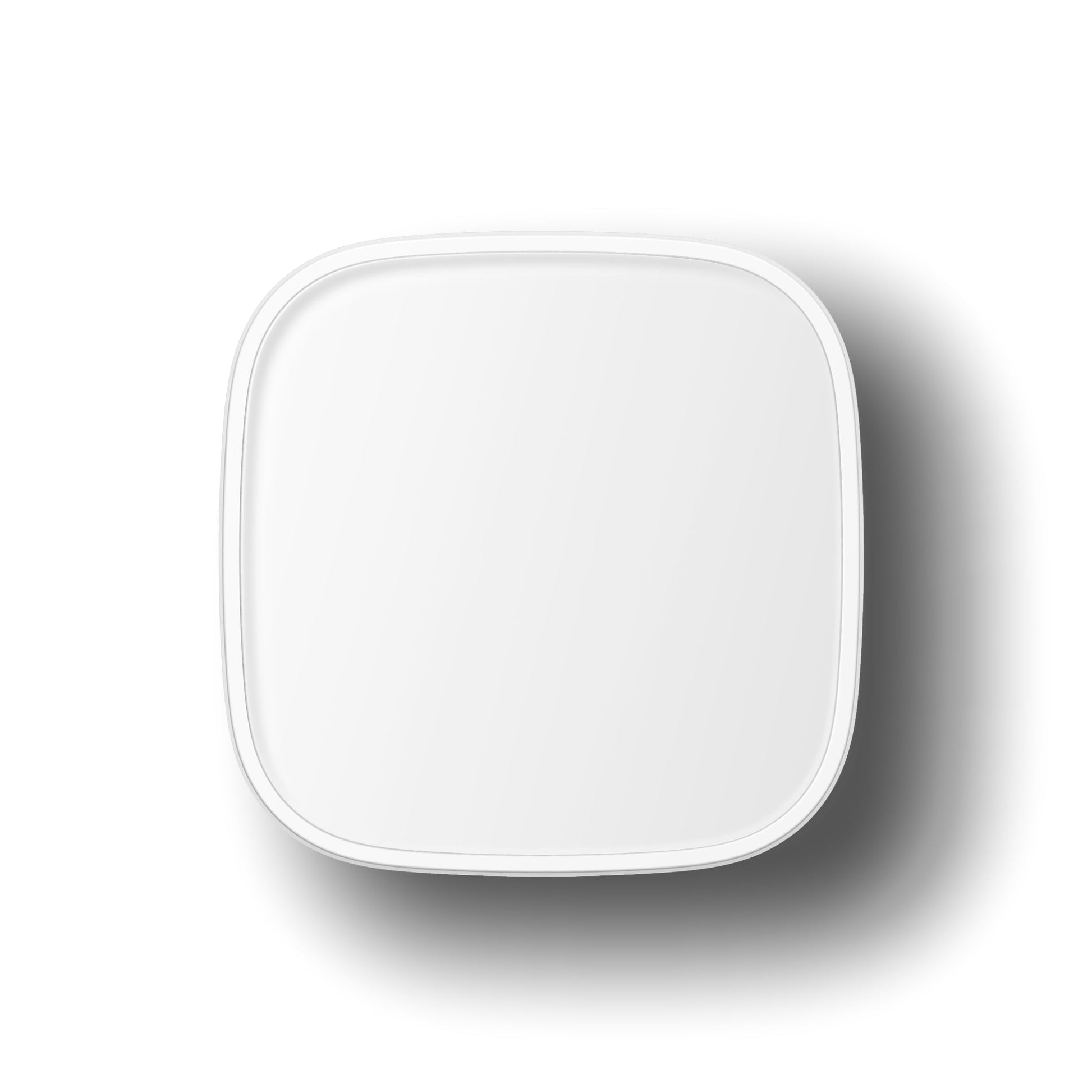

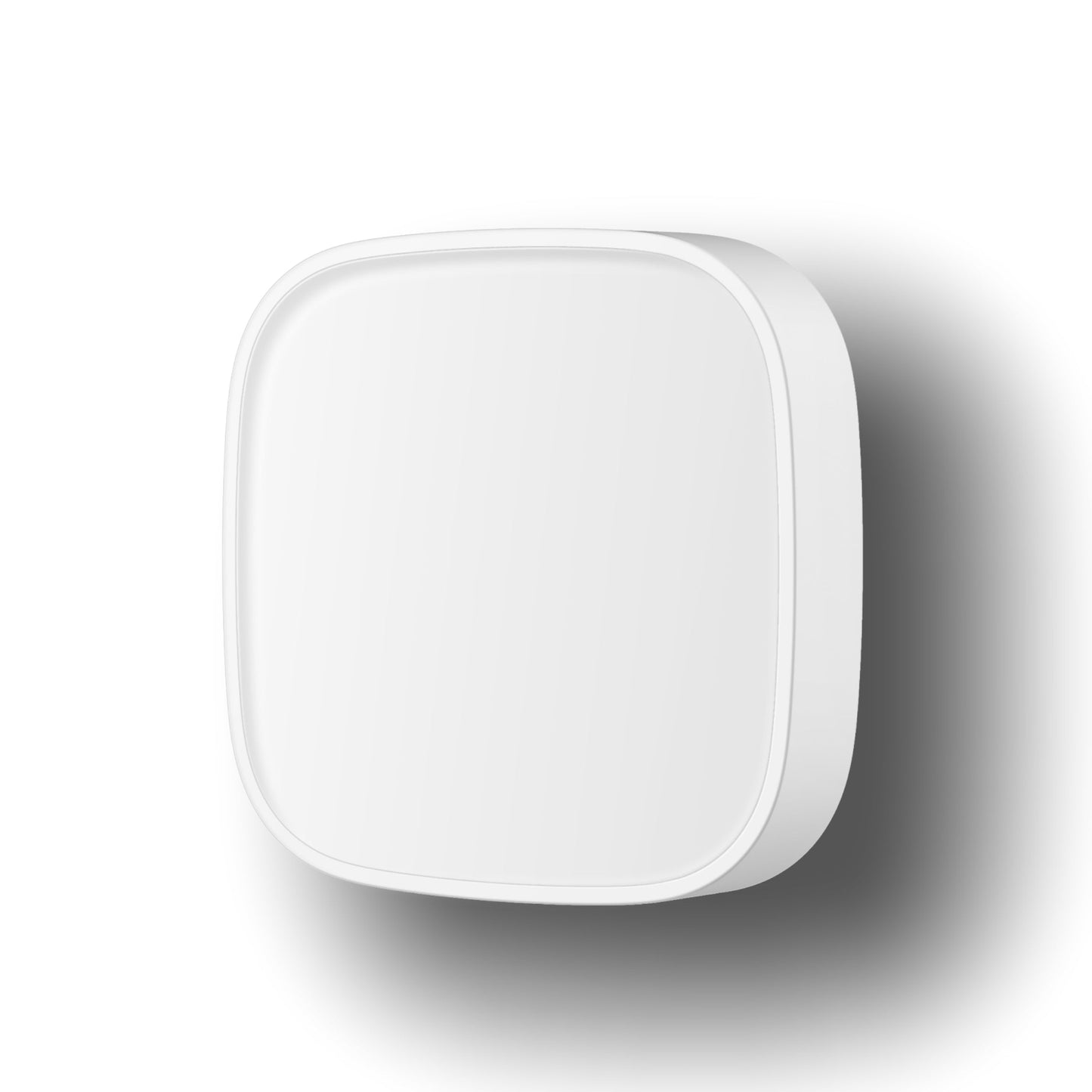

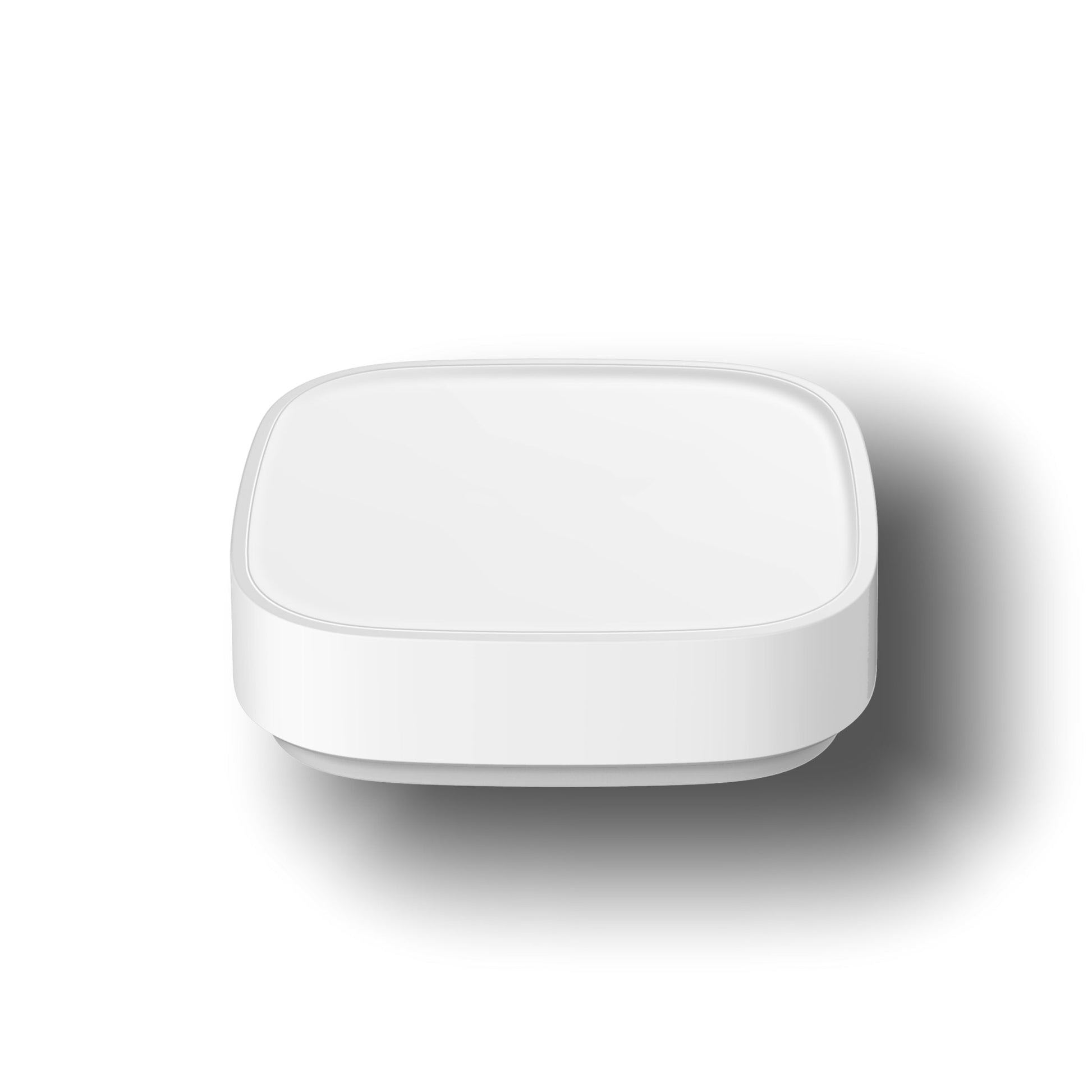

Scenario Button

Scenario Button

It triggers the corresponding scene through three pressing modes, including the linkage mode set by the app.

  • With four cantilever balance structures, it has better pressing experience in each position.
  • Support multi functions: doorbell, emergency button, appliances control, customize setting.
  • It is ready to use after being placed or pasted without installation tools; It can control many devices with one click to implement customize settings.
View full details

Datasheet

Features

  • Smart wireless scene button, suitable for multiple life scenarios
  • Support devices: smart switch, wireless doorbell, emergency button and scenario customization
  • Four cantilever balance structure design
  • Tool-free Installation, easy to use
  • Configure in the app and run with a single tap

Parameters

  • Power supply: DC3V, CR2032 battery*1pc
  • Communication mode: Zigbee 3.0 protocol, networking through the gateway, transmission distance of 150m (open environment)
  • Trigger mode: click, double-click and long press
  • Installation method: 3M glue, directly placed on the desktop
  • Support low voltage reminder
  • Shell material: PC+ABS
  • Operating temperature: -10℃ ~ +55℃,Working humidity: 5-95%RH
  • Standby time: 1 year (triggered 30 times per day)

Brochure

Product Manual
