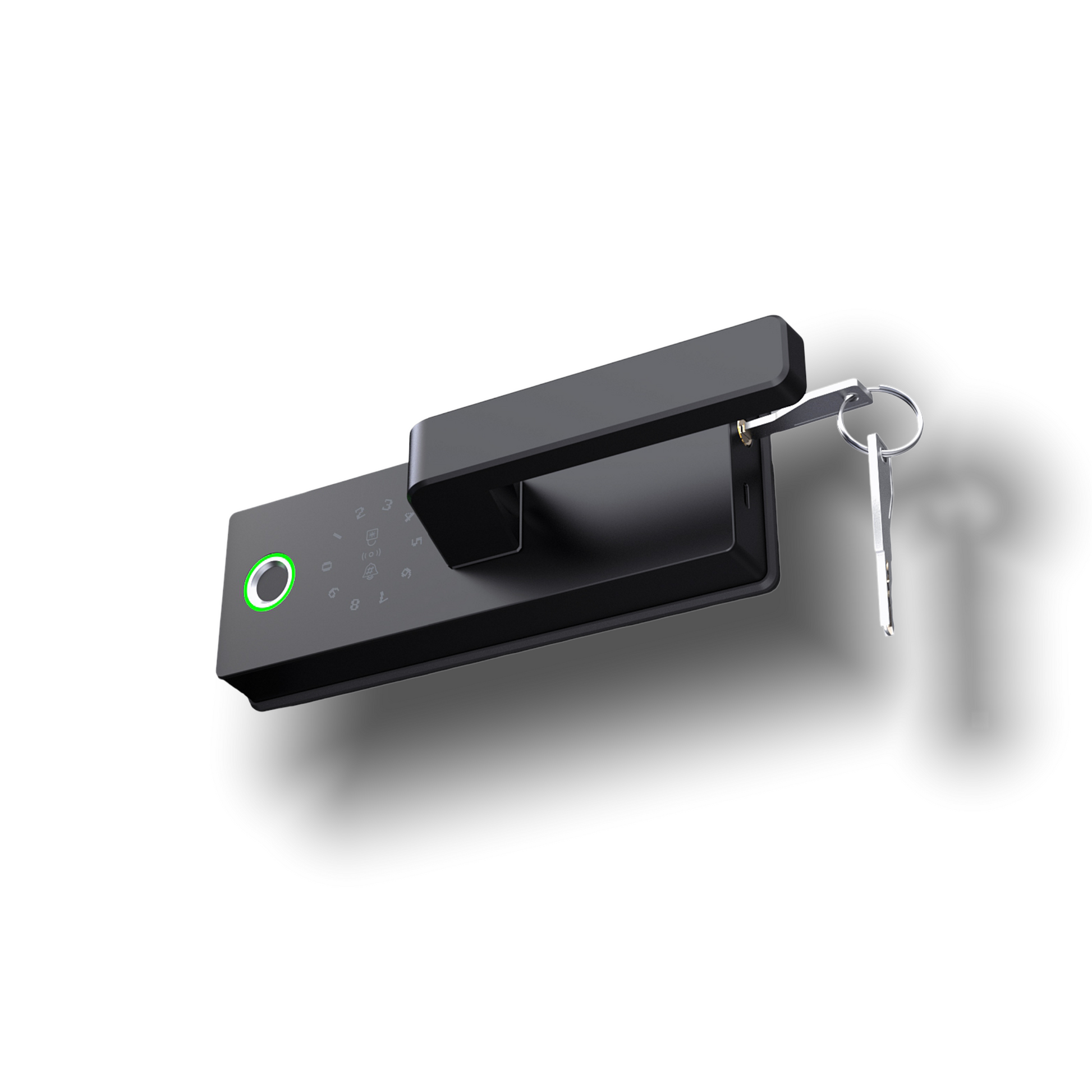

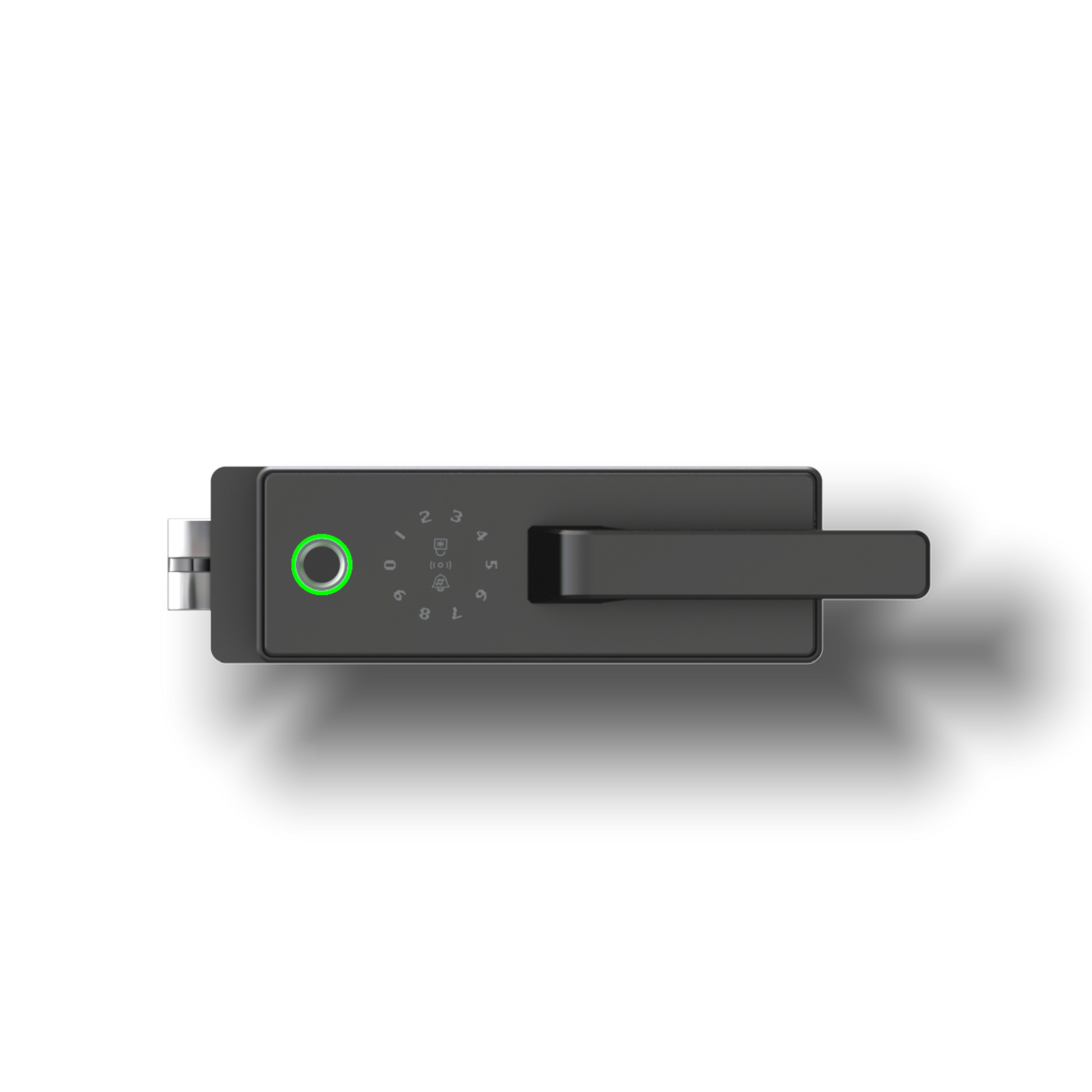

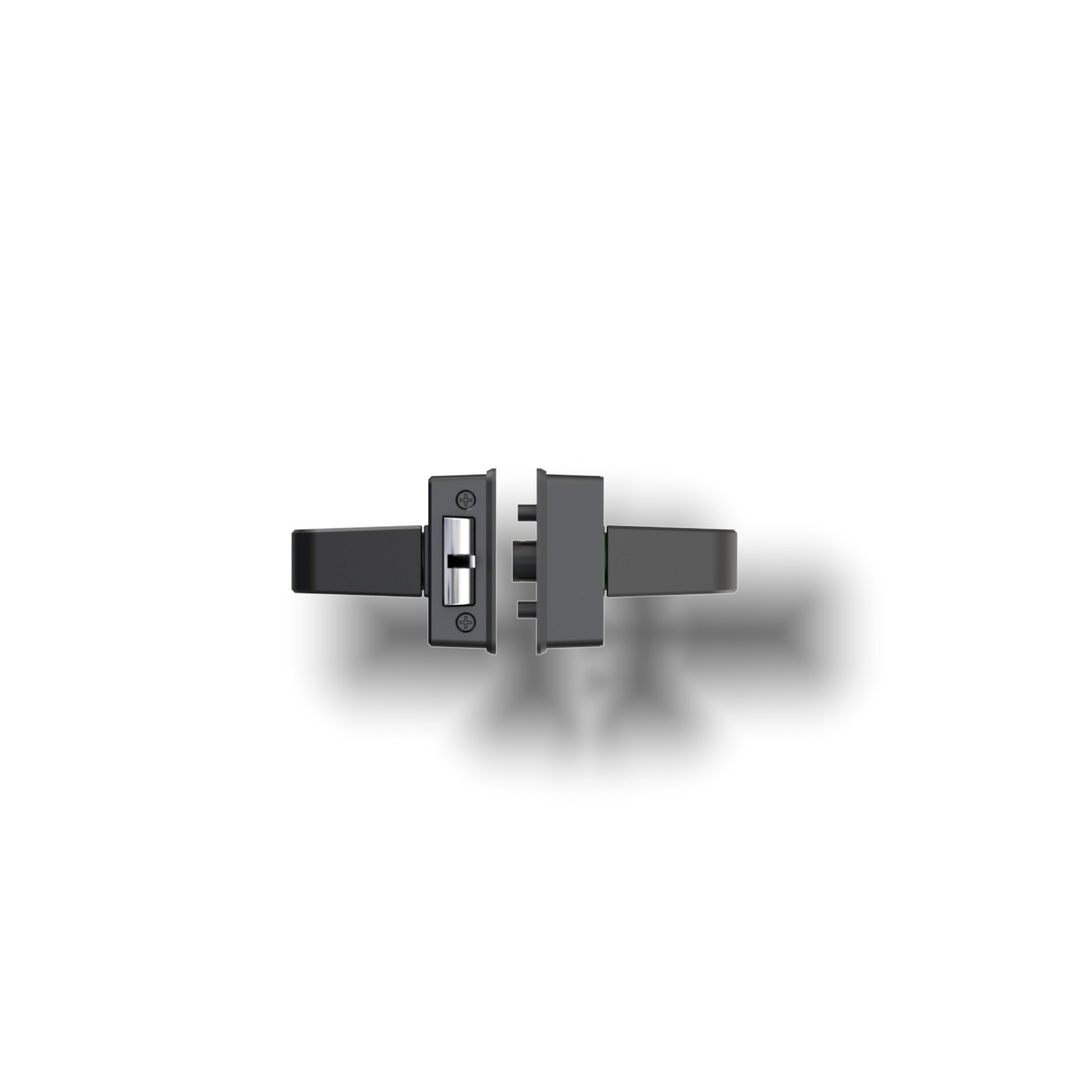

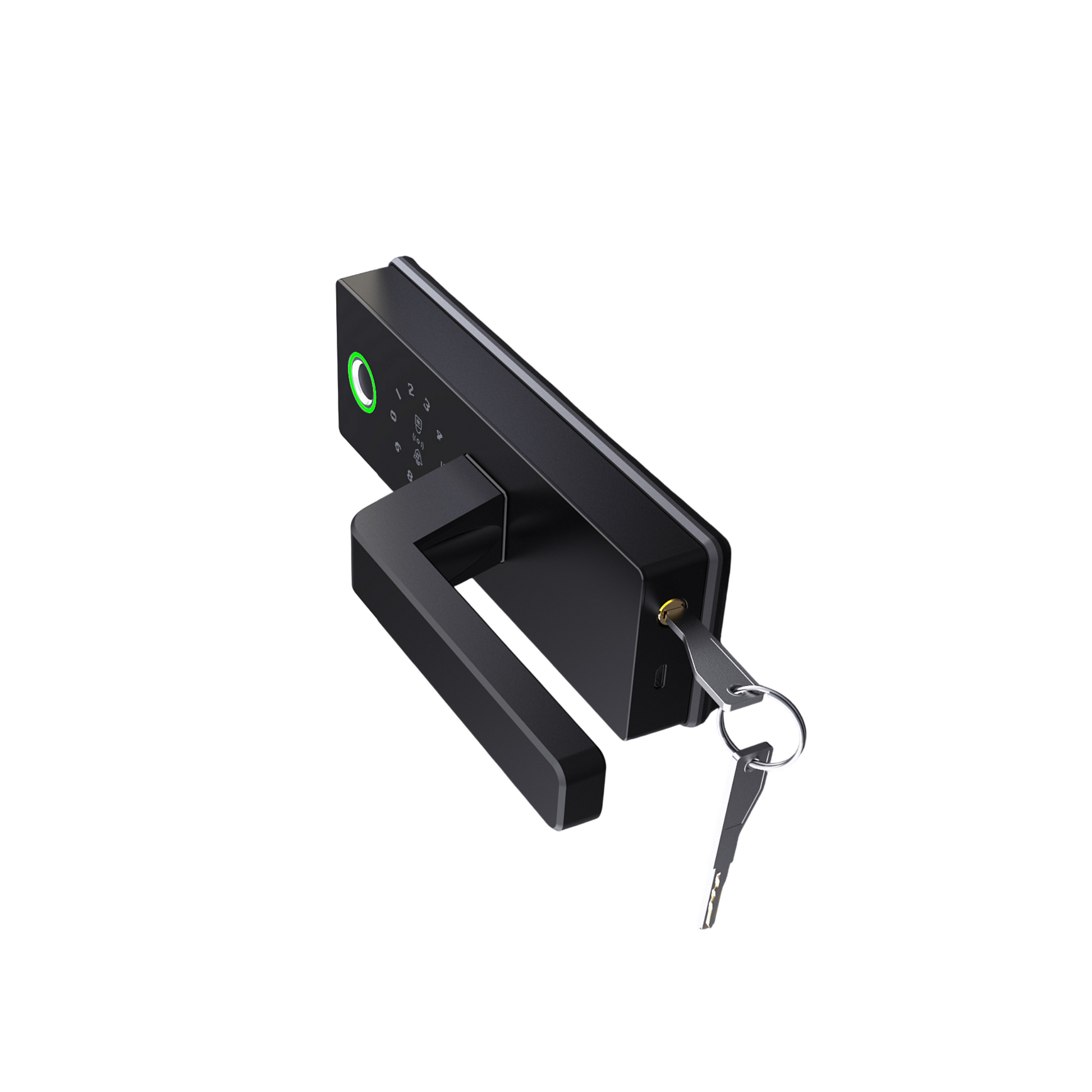

Glass Door Lock

Glass Door Lock

  1. This lock is fit to be installed on glass doors, it can directly replace the old partition lock, no need to drill a door hole;
  2. Support fingerprint, password, IC cards, and keys to unlock;
  3. With a dual protection motor, it is silent and powerful, never stuck;
  4. Support to unlock by smartphone app via wifi, an app named Tuya;
  5. With the USB power supply for emergency;
  6. Powered by 4pcs AA batteries, long standby time;

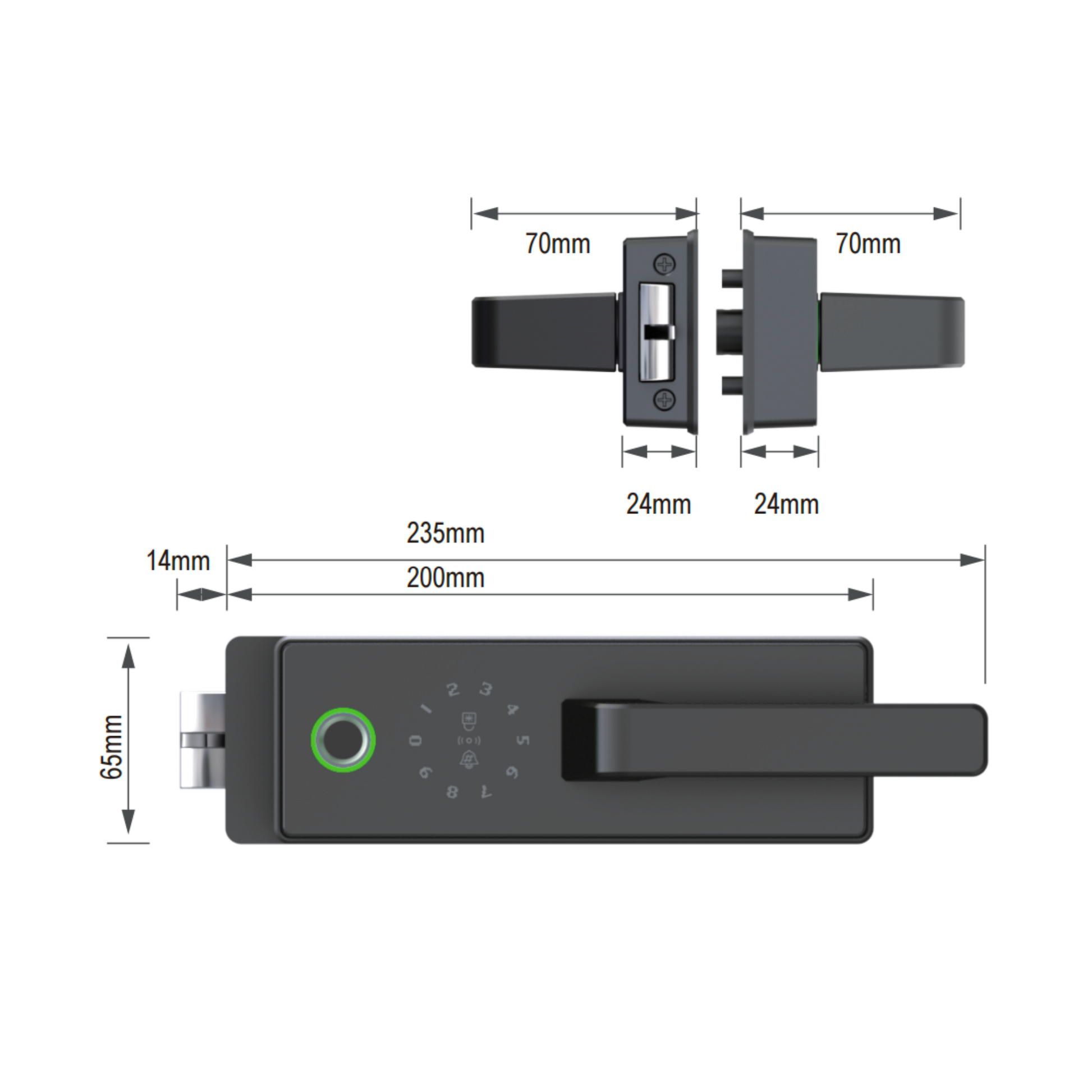

  7. Fit for door thickness 8-12mm glass door;
  8. Easy to install;
View full details

Datasheet

Features

  • Metal material: aluminum alloy casting, multi-layer treatment process, wear-resistant, high temperature resistance, corrosion resistance
  • Strong and durable
  • Blade slant tongue: anti-insert unlocking
  • Double protection motor: program + clutch device automatic, control double protection
  • Attack protection: continuous input 5 times the wrong secret key, the system automatically locked for 3 minutes
  • Intelligent anti-peep: intelligent protection, virtual 3-14-bit touch anti-peep password design

Parameters

  • Applicable doors Partition doors
  • Body color Matte black
  • Capacity Fingerprint (semiconductor recognition): 50
  • Password + magnetic card + remote control: 1000
  • Unlock record: 30000
  • Resolution 120*120
  • Rejection rate <3%
  • False recognition rate 0.001%
  • Card type M1
  • Static current <80UA
  • Working current <200mA
  • Working temperature -30℃~80℃Relative
  • Humidity RH0~92%
  • Power supply type 1.5V 4 alkaline batteries No.7
  • Power life About 10 months (average unlocking 10 times)
  • Scan time <1S
