Glass Door Lock

Glass Door Lock

Protocol
Color

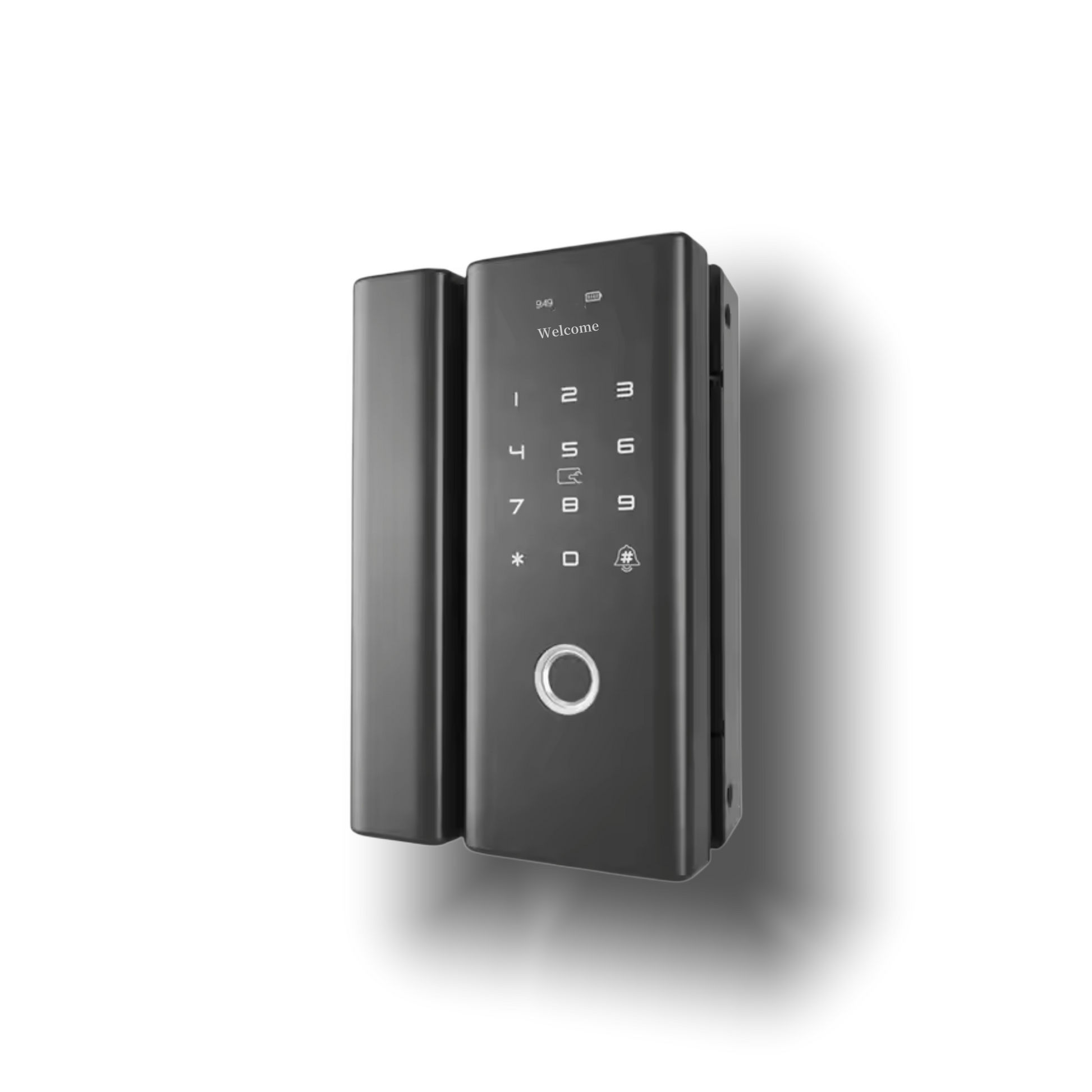

  • With a simple and elegant design, the whole lock body is made of zinc alloy material. The double hook bolt design and semiconductor fingerprint head make the lock safer. The dual motor protection mode of the clutch + program makes the motor non-stuck.
  • Stylish appearance: The wide full-screen design, and seamless touchscreen display with personality, simplicity, and three different colors make it refreshing.
  • Metal material: The front and back panels of the lock are made of zinc alloy, and the integrated panel is more durable
  • Fingerprint recognition: The semiconductor fingerprint head recognition is not only sensitive and fast but also can effectively prevent fingerprint copying, and sensitive identification of wet and dry hands, elders, and children.
  • Double hook bolt: The unique design of the double hook bolt can bear large resistance, and can be free of insert assembly.
  • Dual protection motor: With a program + clutch design, the dual-protection motor is with automatic control device, which effectively prevents the motor from damage. It makes the motor precise and powerful and works without stocking.
  • Unlocking mode: 6 unlocking designs - Fingerprint unlocking, password unlocking, magnetic card [ID card, bank card] unlocking, remote unlocking, Bluetooth unlocking, small program unlocking, and wireless attendance.
View full details

Datasheet

Features

  • Tuya App management/ unlock via wifi; the users for 1 lock has no limitation. And 1 phone can control many XS-G200, no limitation.
  • When someone press the doorbell, Tuya will get the notification from lock that we have a visitor. Then you can unlock the door remotely for him.
  • Temporary password: you can authorize the temporary password for visitors or courier, simple and convenient;
  • Door Opening Logs: When someone unlock the door, Tuya will get the notification from the lock.
  • Alarm: Tuya will show the pry proof alarm, card error alarm, password error alarm, fingerprint error alarm, Hijack alarm,
    doorbell alarm.
  • Show battery capacity: Tuya will show the battery capacity. If the batteries are in low voltage, the app will alarm.
  • Lock/ Unlock mode: When the lock is in open mode, the app will alarm that the lock didn't locked.

Parameters

  • Fingerprint speed: ≤0.3S
  • Working voltage: 4 5th 1.5V "AA" alkaline batteries
  • Misidentification rate: ≤0.0001%
  • Frameless door seam: 4—15mm
  • Opening method: left and right interchange
  • Appearance material: zinc alloy
  • Fingerprint capacity: 200 pieces
  • Display: 0.96 inch
  • Static power consumption: less than 10ua
  • Identification rejection rate: ≤0.0001%
  • The suitable door thickness: 8-12mm

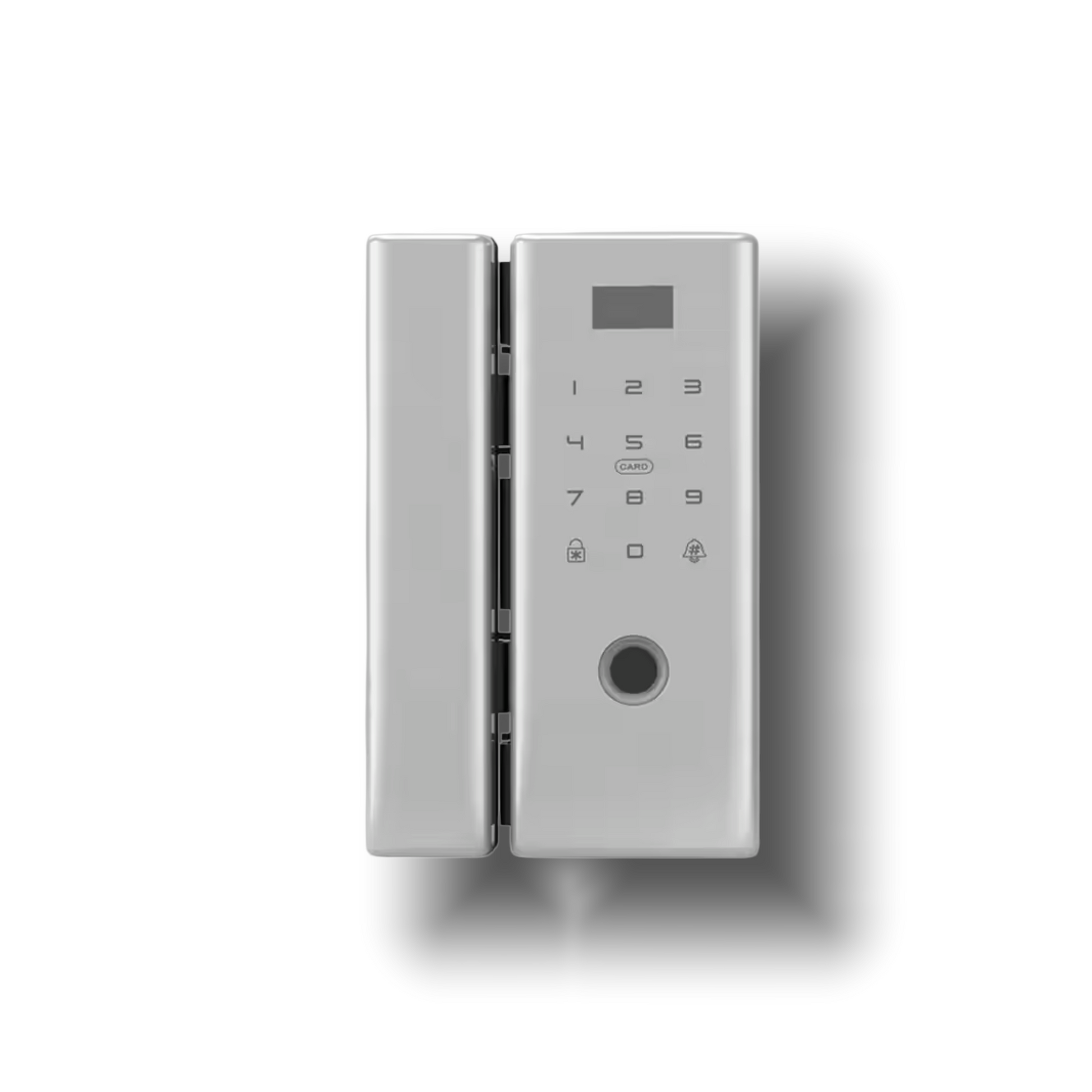

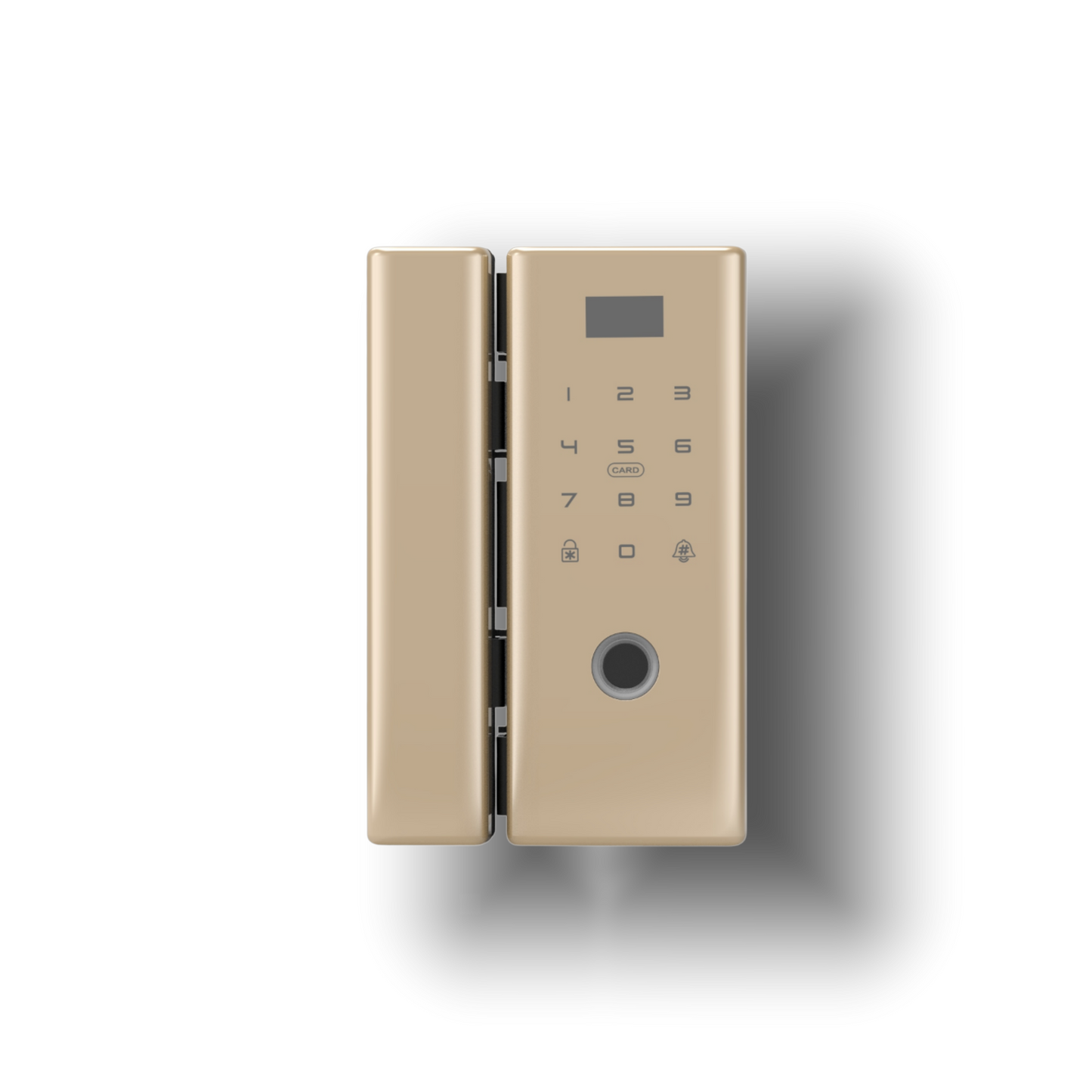

  • Product color: pearl black, bright silver, rose gold
  • Fingerprint head: semiconductor biological recognition
  • Password + magnetic card + remote control: 1000 groups
  • Card type: M1, IC, second generation ID card
  • Emergency power supply: Android interface
  • Working temperature: -20 ° C ~ +60 ° C
  • Product weight: 2.2kg
  • Applicable door: glass door, framed aluminum door, wooden door, sliding door
  • Unlocking method: fingerprint, password, magnetic card, remote control, Bluetooth, small program unlocking, wireless attendance matching
