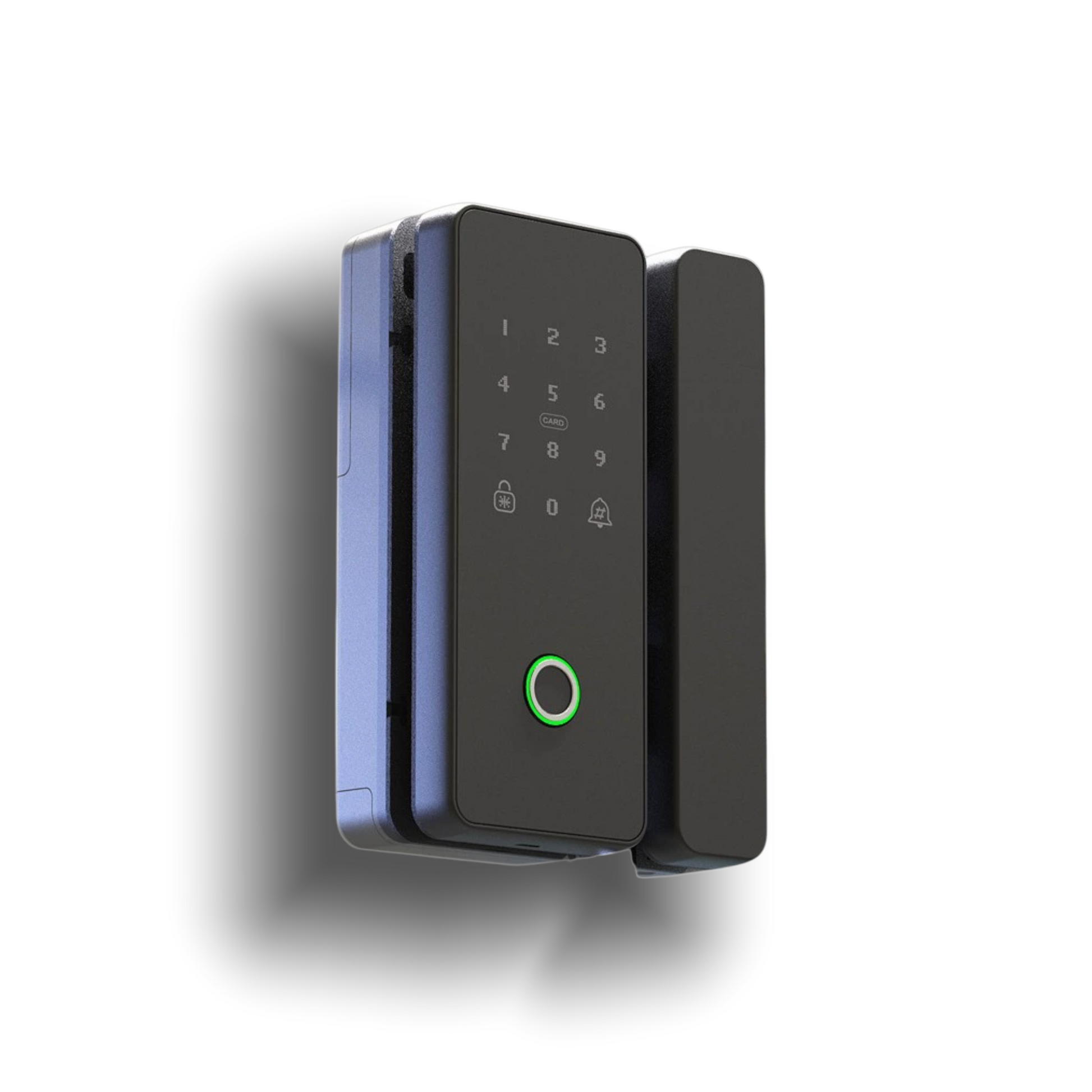

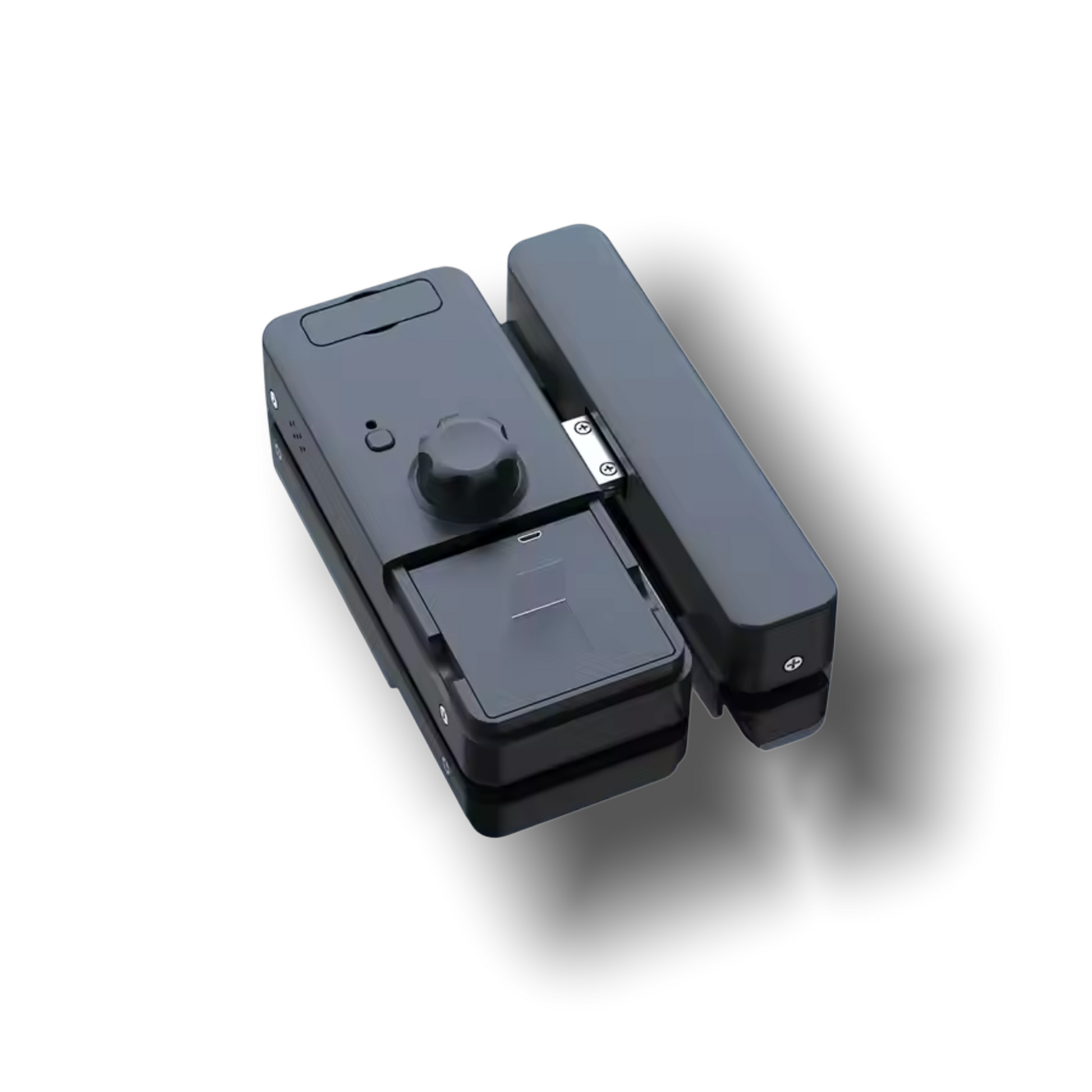

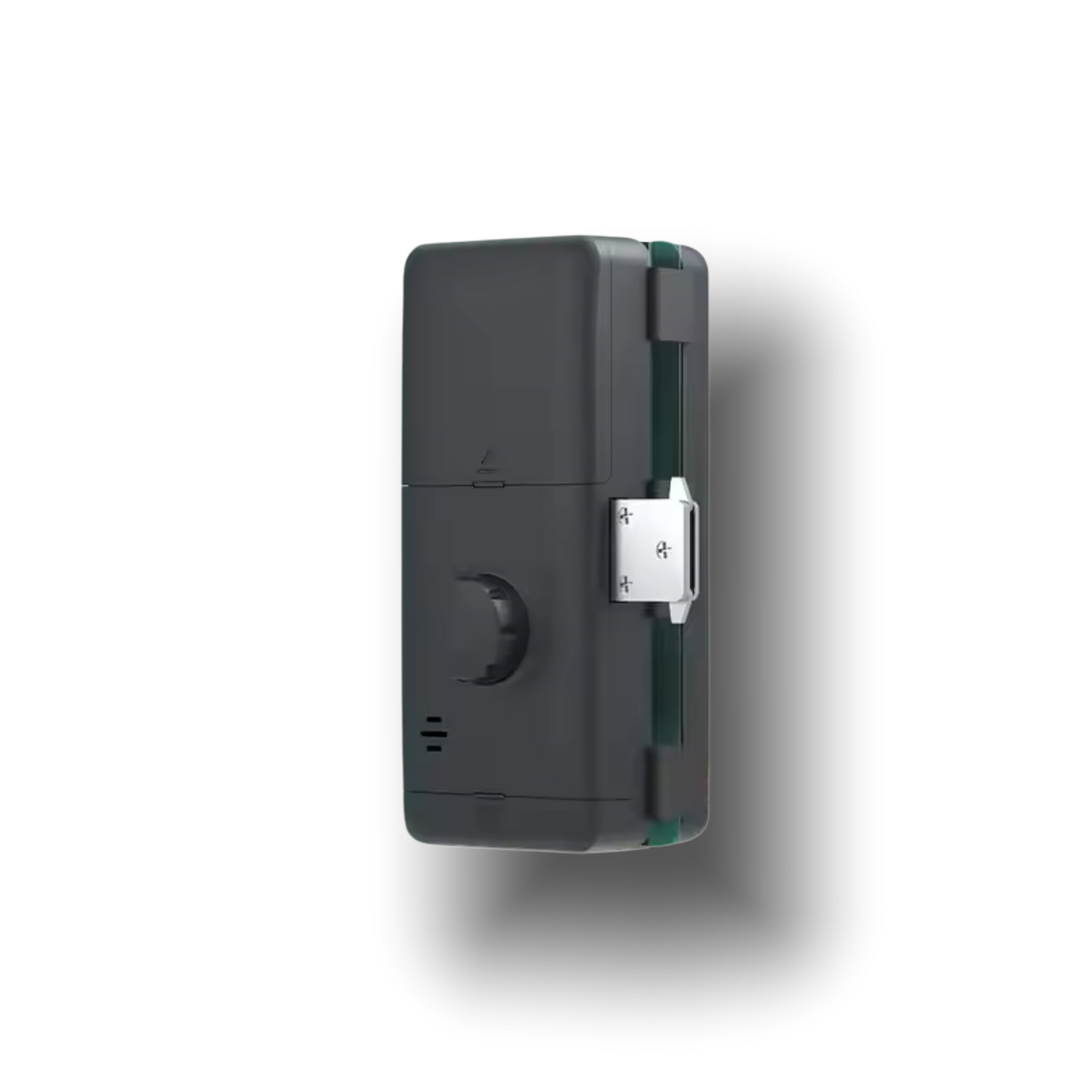

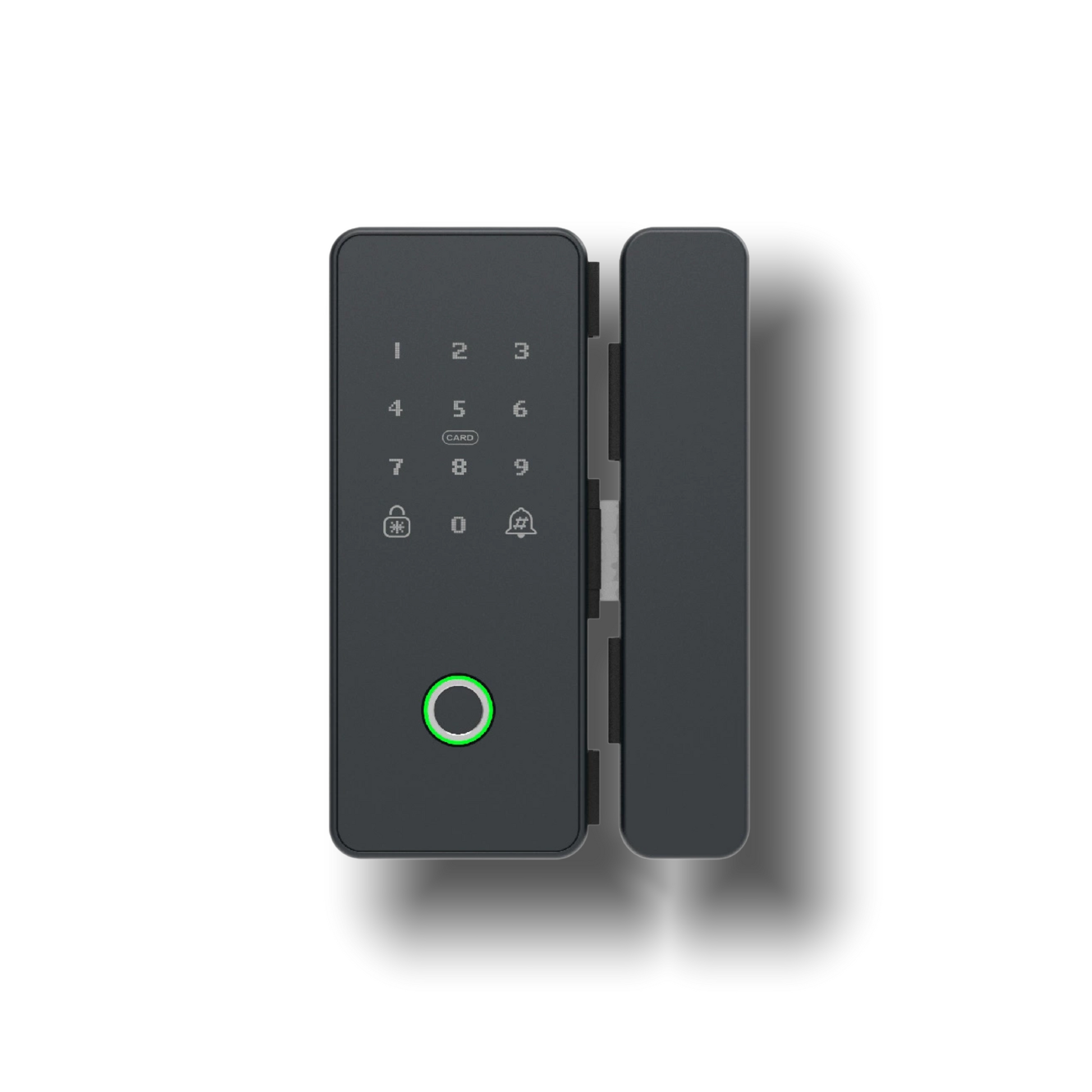

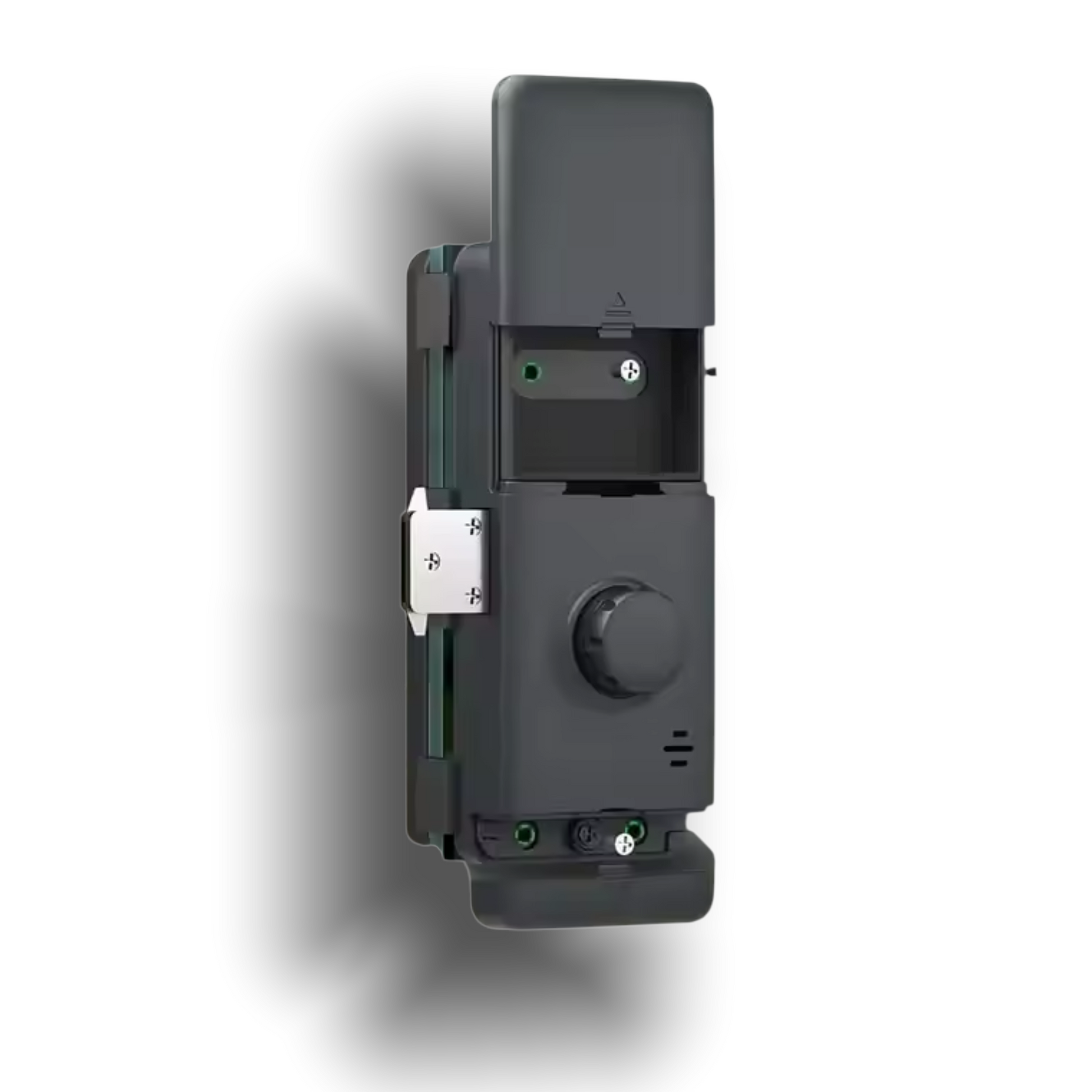

Glass Door Lock

Glass Door Lock

Protocol
  • The glass door fingerprint lock has been fully upgraded. With its simple and elegant design, the double hook bolt and semiconductor fingerprint head make the lock safer. The dual motor protection mode of the clutch and stepping motor prevents the motor from getting stuck.
  • Stylish appearance. The wide full-screen design, and seamless touchscreen display with personality, simplicity, and three different colors make it refreshing.
    Fingerprint recognition. The semiconductor fingerprint head recognition is not only sensitive and fast, but also can effectively prevent fingerprint copying, and sensitive identification of wet and dry hands, elders, and children.
  • Double hook bolt. The unique design of an 8mm double hook bolt can
    bear large resistance, and can be free of insert assembly.
  • Dual protection motor. The dual protection motor has a program + clutch design and an automatic control device, which effectively prevents the motor from damage. It makes the motor precise and powerful and works without sticking.
  • Unlocking mode. 4 unlocking designs - Fingerprint unlocking, password unlocking, magnetic card [ID card, bank card] unlocking, App unlocking, and wireless attendance.
View full details

Datasheet

Features

  • Compatible with both sliding and swing motion for versatile usage on glass doors.
  • Advanced security features to prevent unauthorized access.
  • Easy installation and setup without the need for specialized tools or knowledge.
  • Battery-powered for long-lasting usage and energy efficiency.
  • Adjustable fitting to accommodate various thicknesses of glass doors.
  • Integration with smart home systems for added convenience and security.
  • Constructed with high-quality materials for durability and weather resistance.

Parameters

  • Fingerprint speed: ≤0.3S
  • Working voltage: Four fifth
  • 1.5V“AA”alkaline batteries
  • False Accept Rate: ≤0.0001%
  • Frameless door gap: 4-15mm
  • Door opening way: Left-Right switch
  • Appearance material: ABS+zinc alloy
  • Static Power consumption: Less than 10ua
  • False Reject Rate: ≤ 0.0001%
  • Suitable door thickness: 8-12mm
  • Product color: Black
  • Fingerprint head: Semiconductor biological recognition
  • Card types: M1, 1C
  • Emergency power supply: Android interface
  • Working Temperature: -20℃~+60℃
  • Product weight: 1.8kg
  • Applicable door: Glass door, framed aluminium alloy door, wooden door, sliding door
  • Unlocking way: fingerprint, password, card, bluetooth丨applet unlocking wireless attendance.
