Glass Door Lock
Glass Door Lock
- The glass door fingerprint lock has been fully upgraded. With its simple and elegant design, the double hook bolt and semiconductor fingerprint head make the lock safer. The dual motor protection mode of the clutch and stepping motor prevents the motor from getting stuck.

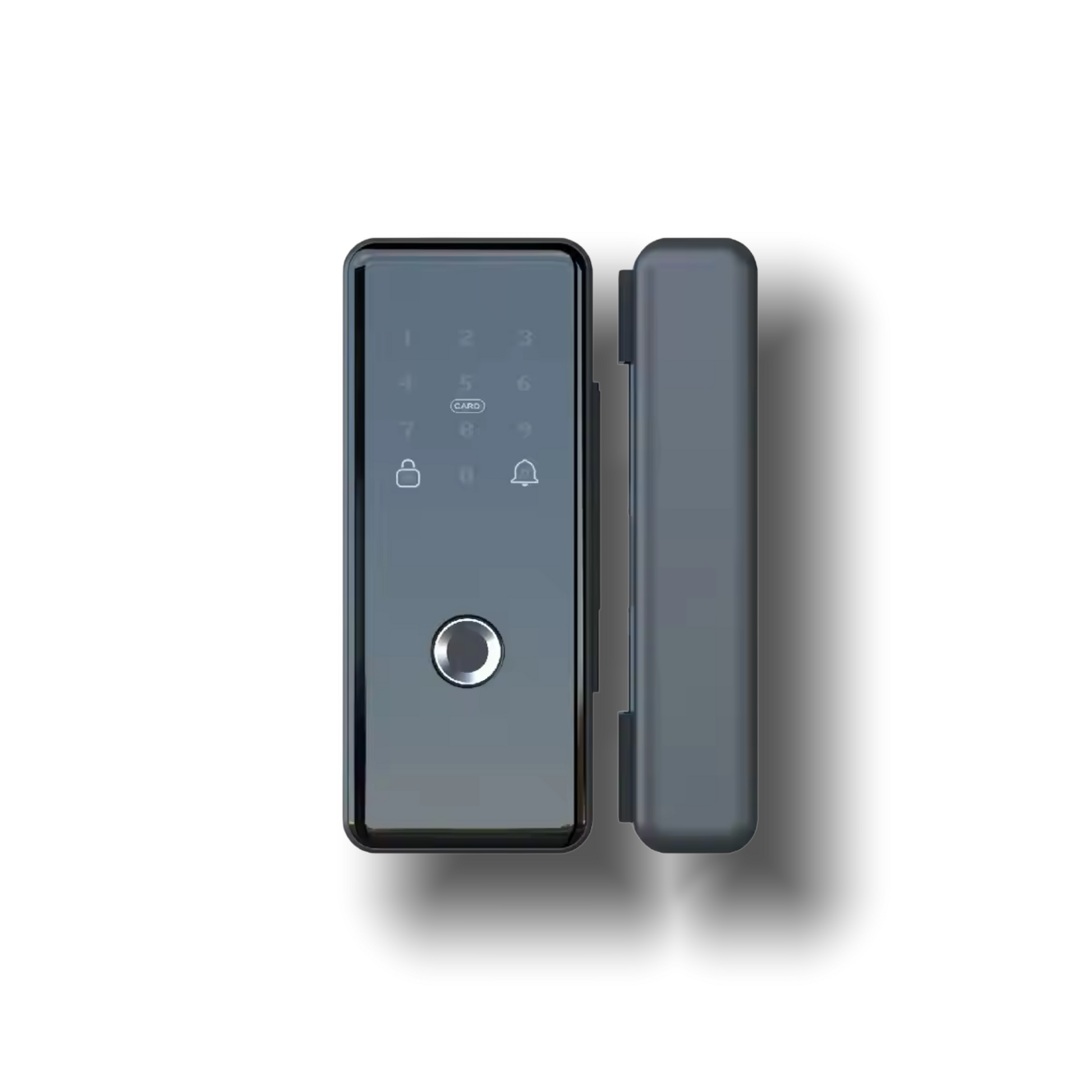

- Stylish appearance. The wide full-screen design, and seamless touchscreen display with personality, simplicity, and three different colors make it refreshing.
Fingerprint recognition. The semiconductor fingerprint head recognition is not only sensitive and fast, but also can effectively prevent fingerprint copying, and sensitive identification of wet and dry hands, elders, and children. - Double hook bolt. The unique design of an 8mm double hook bolt can
bear large resistance, and can be free of insert assembly. - Dual protection motor. The dual protection motor has a program + clutch design and an automatic control device, which effectively prevents the motor from damage. It makes the motor precise and powerful and works without sticking.
- Unlocking mode. 4 unlocking designs - Fingerprint unlocking, password unlocking, magnetic card [ID card, bank card] unlocking, App unlocking, and wireless attendance.
Share





Datasheet
Features
- Compatible with both sliding and swing motion for versatile usage on glass doors.
- Advanced security features to prevent unauthorized access.
- Easy installation and setup without the need for specialized tools or knowledge.
- Battery-powered for long-lasting usage and energy efficiency.
- Adjustable fitting to accommodate various thicknesses of glass doors.
- Integration with smart home systems for added convenience and security.
- Constructed with high-quality materials for durability and weather resistance.
Parameters
- Identify fingerprint speed: ≤0.3s
- False recognition rate: ≤0.0001%
- Fit frameless door gap: 3-15mm
- Fit door direction: easy to adjust between left and right
- Material: aluminum alloy
- Static power consumption: <10ua
- Rejection rate: ≤0.0001%
- Fit door thickness: 8-12mm
- Color: matte black
- Fingerprint reader: Semiconductor biometrics
- Card type: 13.56mhz mifare card
- USB power supply: Type-C USB power
- Working temperature: -20℃~+60℃
- Weight: 2KG
- Suitable for door type: glass door, framed aluminum door, wooden door, sliding door;
- Unlock way: Fingerprint, password, IC card, wireless attendance
