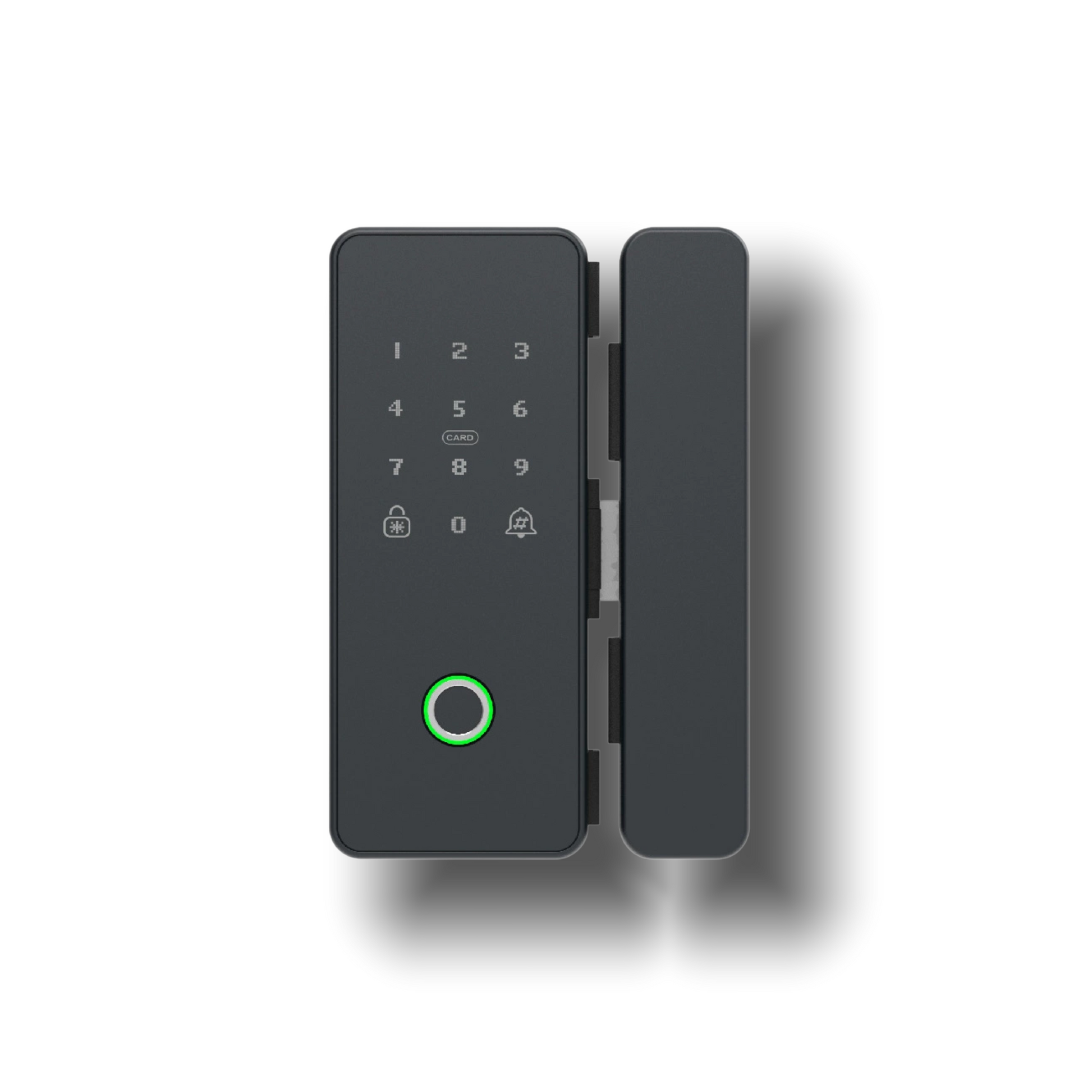

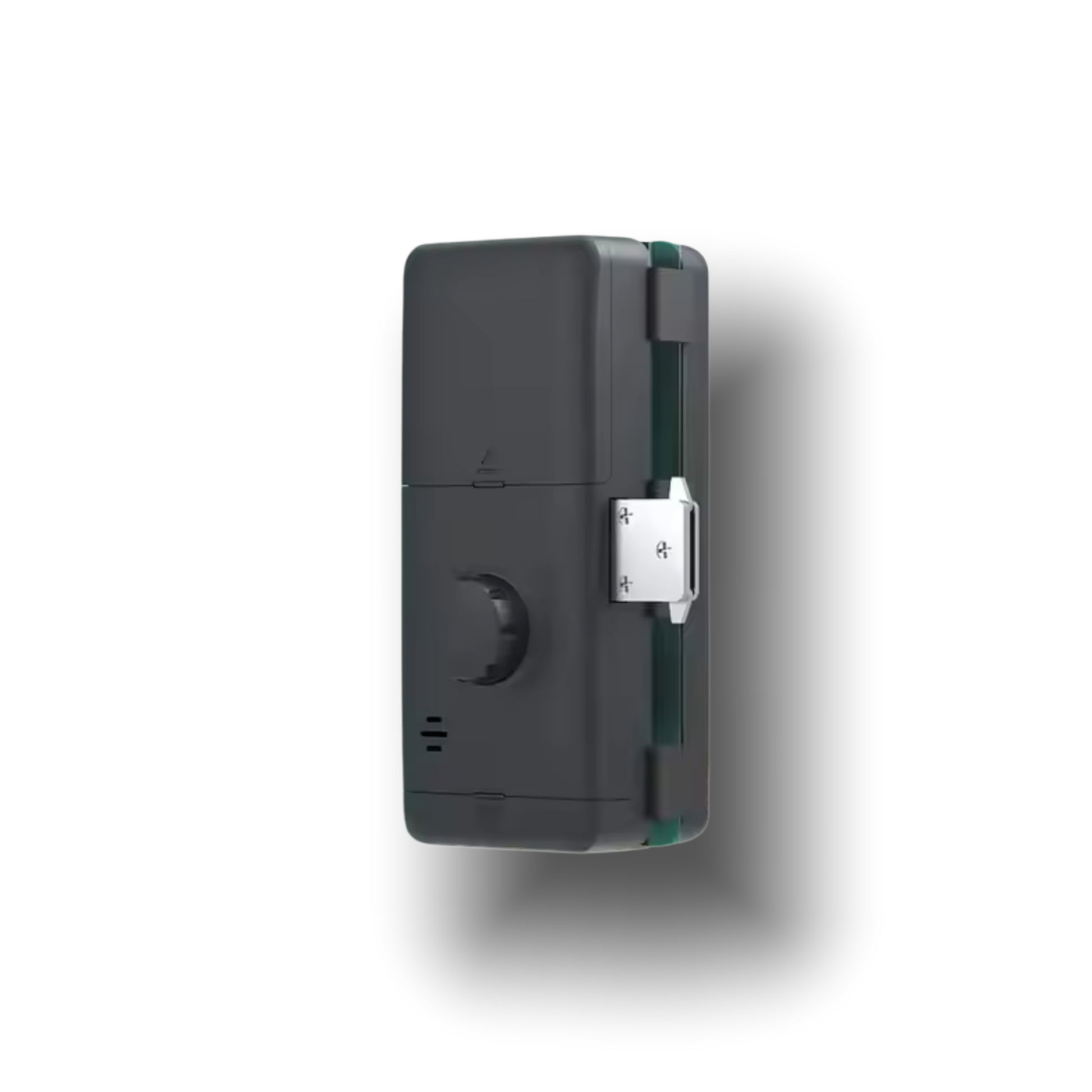

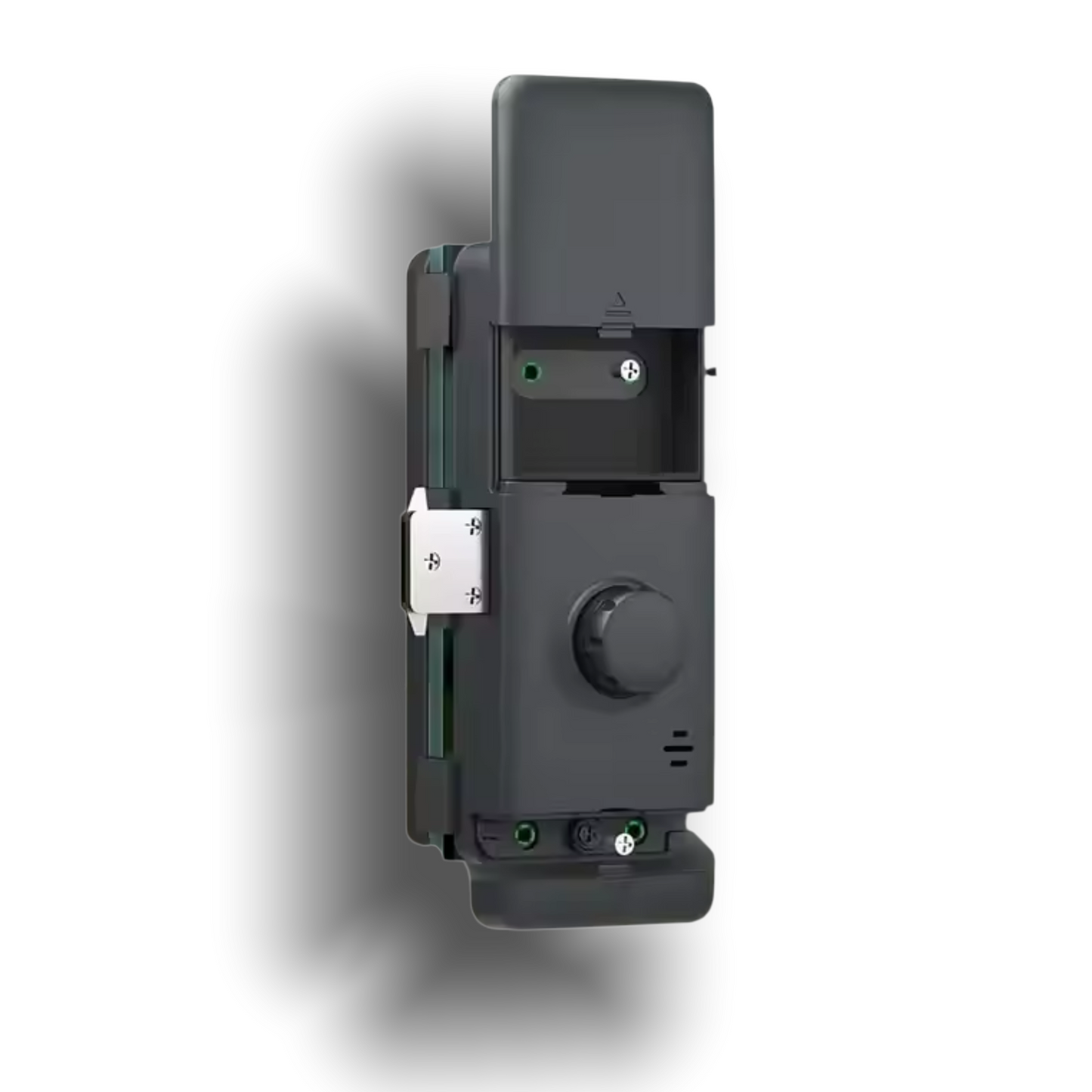

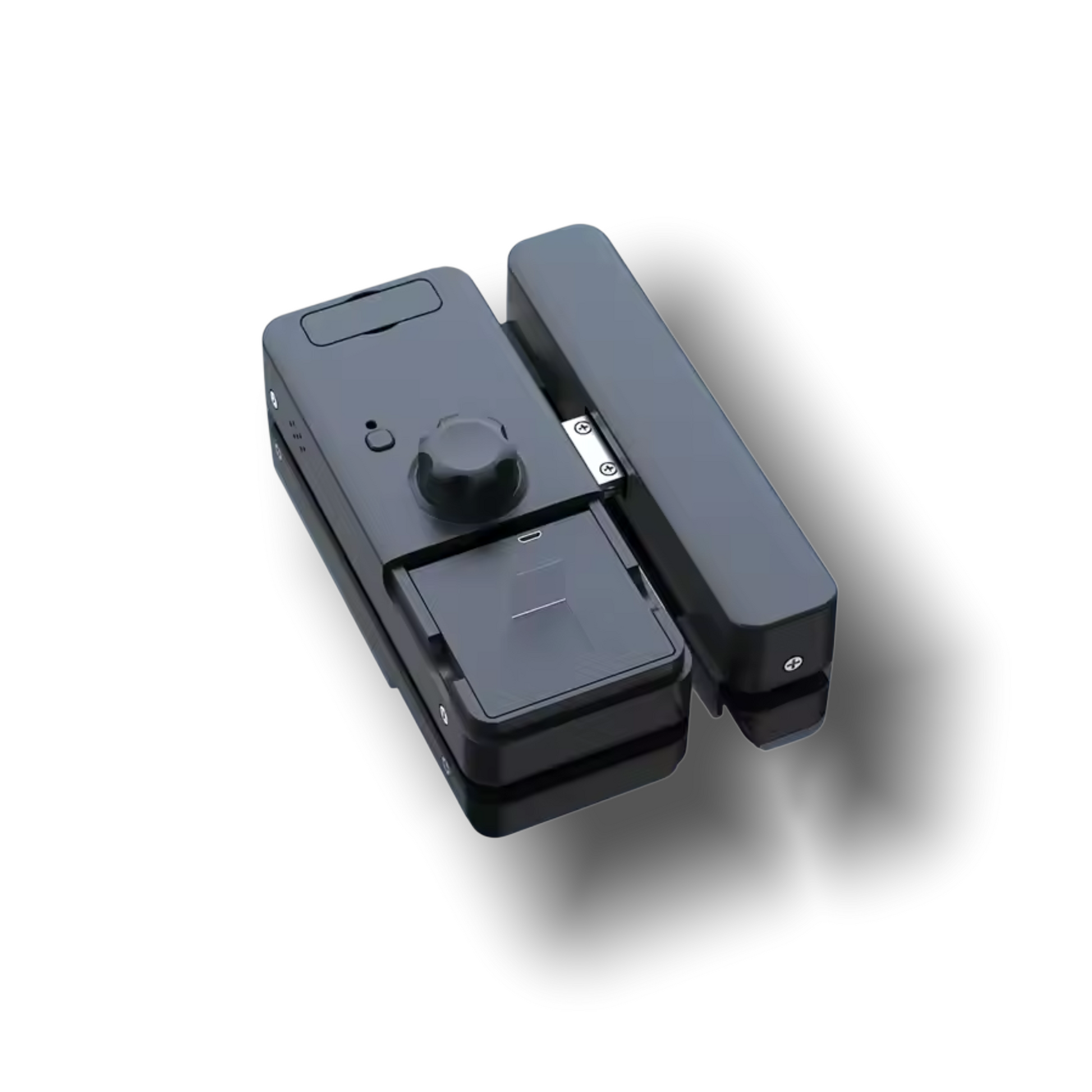

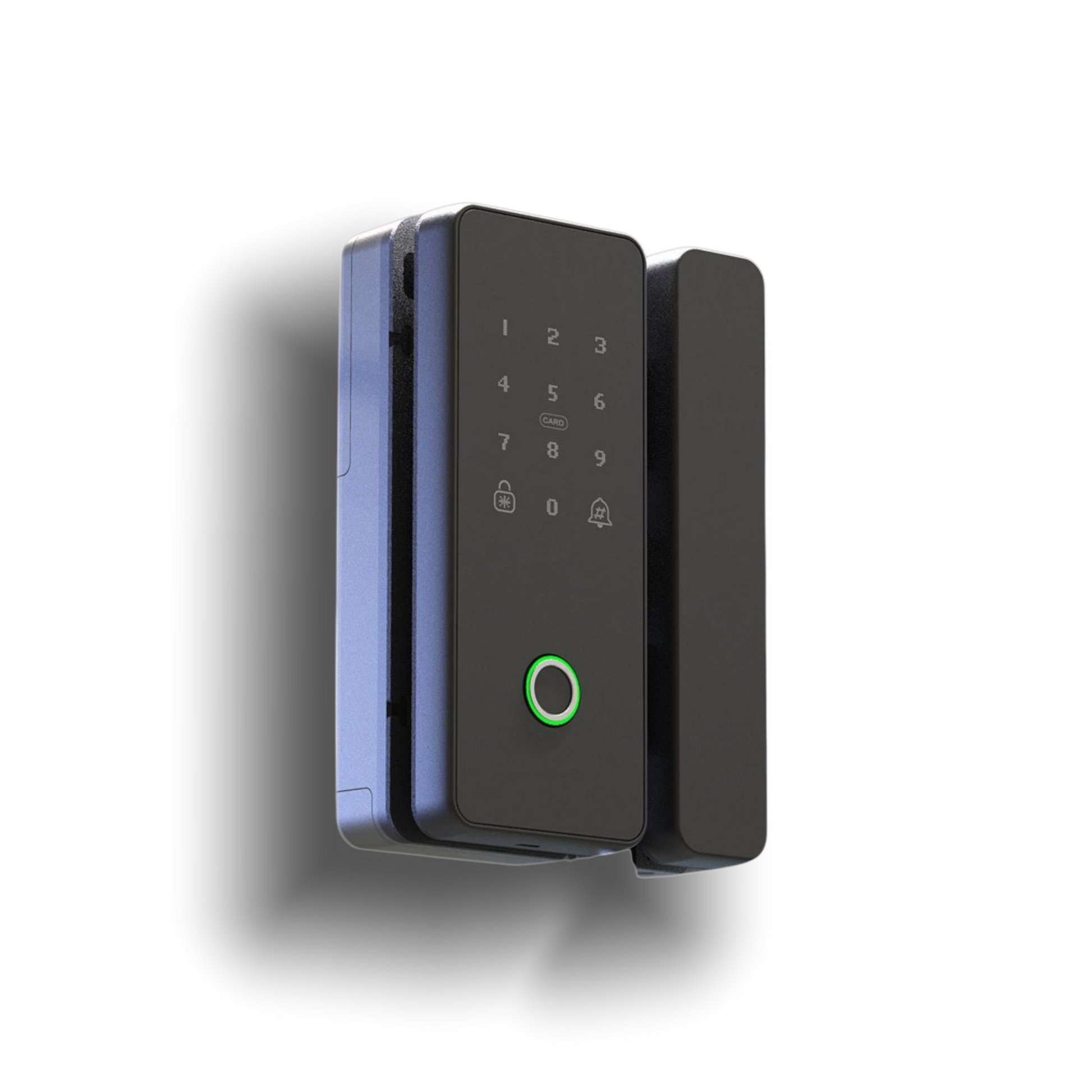

Glass Door Lock

Glass Door Lock

  • The glass door fingerprint lock has been fully upgraded. With its simple and elegant design, the double hook bolt and semiconductor fingerprint head make the lock safer. The dual motor protection mode of the clutch and stepping motor prevents the motor from getting stuck.
  • Support 9 languages: Chinese, English, Spanish, Portuguese, French, Arabic, Indonesian, Vietnamese, Thai
  • Stylish appearance. The wide full-screen design, seamless touchscreen display with personality, simplicity, and three different colors make it refreshing.
    Fingerprint recognition. The semiconductor fingerprint head recognition is not only sensitive and fast, but also can effectively prevent fingerprint copying, and sensitive identification of wet and dry hands, elders, and children.
  • Double hook bolt. The unique design of an 8mm double hook bolt can
    bear large resistance, and can be free of the insert assembly.
  • Dual protection motor. The dual protection motor has a program + clutch design and an automatic control device, which effectively prevents the motor from damage. It makes the motor precise and powerful and works without sticking.
  • Unlocking mode. 4 unlocking designs - Fingerprint unlocking, password unlocking, magnetic card [ID card, bank card] unlocking, and App unlocking.
View full details

Datasheet

Features

  • Metal + plastic: dense alloy frame + front shell industrial plastic, automatic polishing, multi-layer baking paint / oil spray surface treatment, corrosion and heat resistance, low temperature resistance
  • Double hook design: 304 stainless steel double hook design
  • Double protection motor: program + clutch device automatic, control double protection
  • Attack protection: 5 consecutive times to enter the wrong secret key, the system automatically lockout 3 minutes
  • Intelligent anti-peep: intelligent protection, virtual 3-14-bit touch anti-peep password design

Parameters

  • Support platform: TUYA
  • Product features: real voice operation, doorbell, automatic locking, anti-prying alarm, low power alarm, emergency power supply
  • Support language: Chinese, English, Spanish, Portuguese, French, Arabic, Indonesian, Vietnamese, Thai
  • Applicable door: Glass door, framed door, wooden door, translation door, partition door
  • Body color: matte black
  • Number of users: a total of 200 (fingerprint password card sharing)
  • Static current: ≤120uA
  • Dynamic current: <250mA
  • Working voltage: 4.5V-6.5V
  • External power supply: 5V USB
  • Working Temperature: -25 ° C to 70 ° C
  • Working humidity: 45~90%RH
  • Password bits: 6~10
  • Virtual password: virtual password + Total password length 24
  • System lock: After unlocking failure for 5 times, the system automatically locks
  • False recognition rate: ≤0.00004%
  • Data true rate: <0.015%
