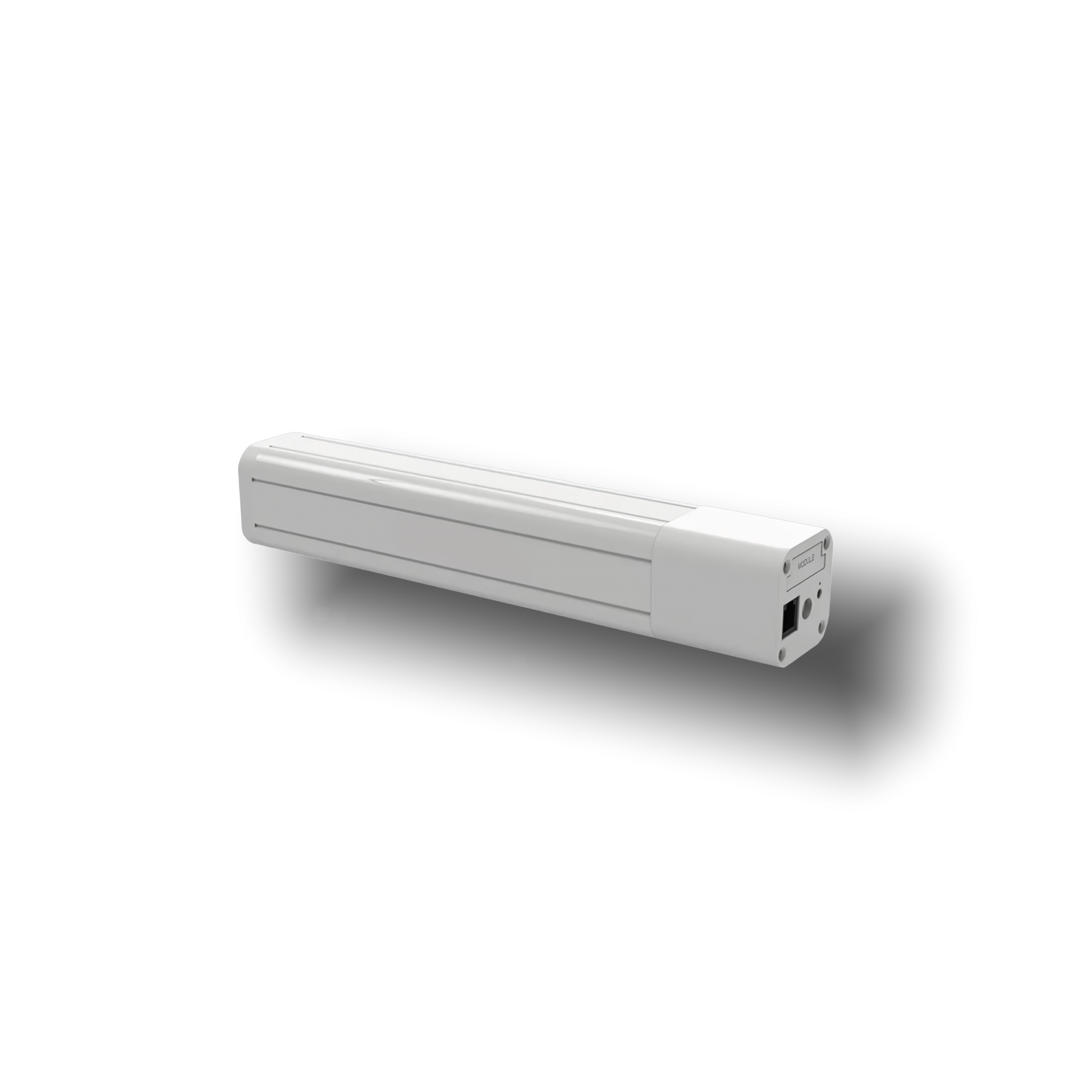

Curtain Motor Kit

Curtain Motor Kit

  • Support timing control, voice control, remote control, percentage control, APP remote control, temperature sensor control;
  • Smart voice control: Amazon Alexa, Google Assistant, and so on;
  • Built-in Li-battery, power socket, and electric wire-free;
  • With ultra-low power consumption, it works with a gateway to support linkage control and remote reminder.
  • Solar panels, power banks, etc can charge it.
View full details

Datasheet

Features

  • Smart home connection
  • Long service life, durable
  • Built-in lithium battery
  • A variety of control methods
  • Electronic Limit
  • Hand Light pull - start function
  • Super silent design
  • Resistance then stop function
  • Wireless control: Zigbee

Parameters

  • Torque:1.2N.m
  • RPM:100RPM
  • Max current:2.5A
  • Charging voltage:5V
  • Input current:2A
  • Rated voltage:DC7.4V
  • Li-Battery capacity:3000mAh
  • Max power:21W
  • Receive frequency:433.92Mhz

Brochure
